01-19KE01 (C-195) - Toro Garden Tractor (1982) Electrical System Parts Diagram

Garden Tractor

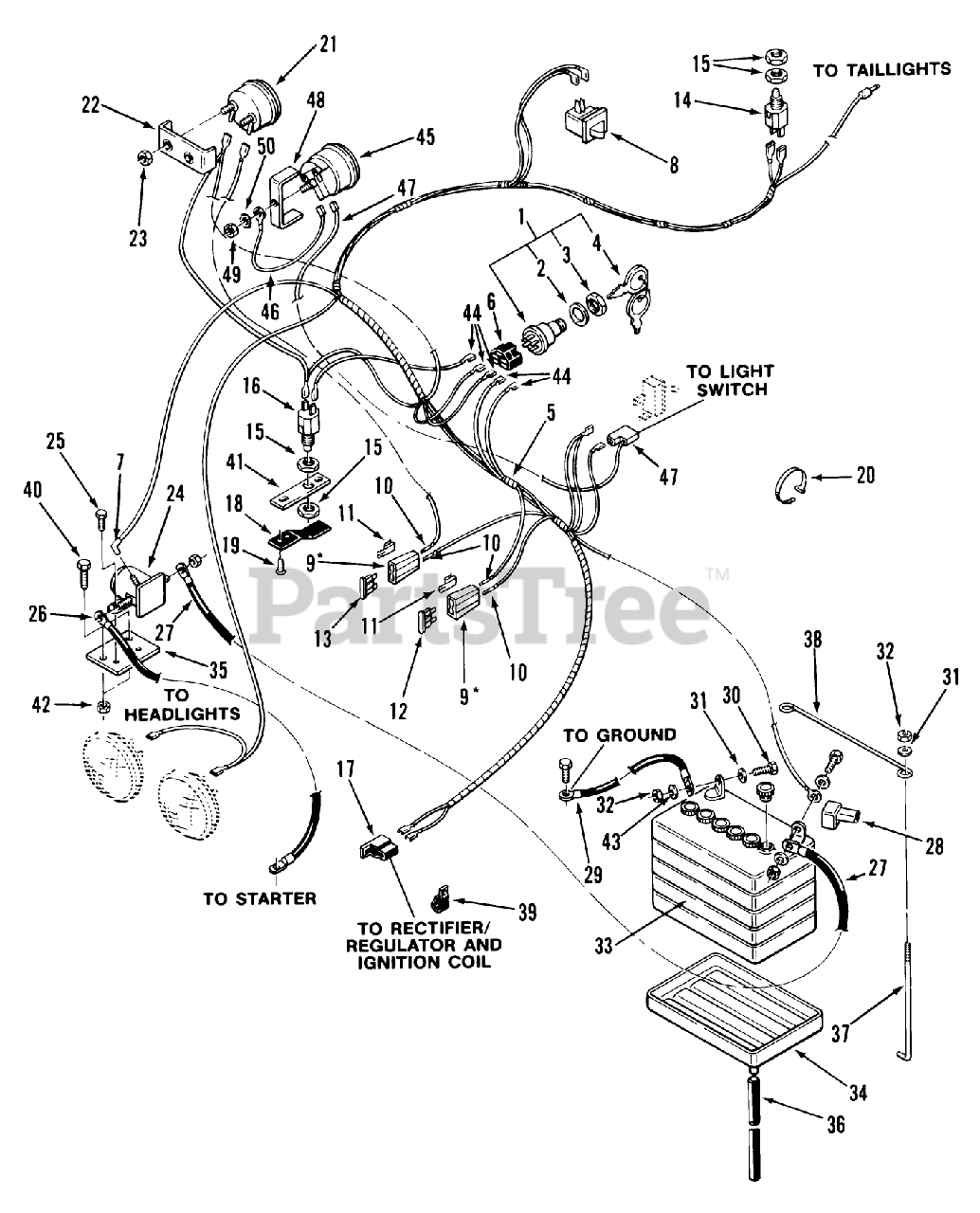

Electrical System Parts Diagram

  • Title

1

Toro 103990

SWITCH-IGNITION

$30.99

$

In Stock, Qty 9

0

2

Toro 920160

See Supercession: 9201604
(Superseded to 9201604)

$0.99

$

In Stock, only 2 left!

0

3

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

4

Toro 7262

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 20+

0

5

Toro 109778

DISCONTINUED

$

$

Not available

6

Toro 105302

See Supercession: 32160-014
(Superseded to 32160-014)

$6.49

$

In Stock, Qty 7

0

7

Toro 518246

DISCONTINUED

$

$

Not available

8

Toro 103480

DISCONTINUED

$

$

Not available

9

Toro 109117

DISCONTINUED

$

$

Not available

10

Toro 108995

DISCONTINUED

$

$

Not available

11

Toro 109445

CLIP

$8.99

$

Usually ships in 3-6 days

0

12

Toro 109355

FUSE-BLADE, 15 AMP

$4.49

$

In Stock, Qty 8

0

13

Toro 109102

FUSE-BLADE, 25 AMP

$6.49

$

In Stock, Qty 16

0

14

Toro 106268

SWITCH

$37.99

$

Usually ships in 3-6 days

0

15

Toro 8786

NUT-HEX

$

$

Not available

16

Toro 106268

SWITCH

$37.99

$

Usually ships in 3-6 days

0

17

Toro 109357

CONNECTOR BODY

$

$

Not available

18

Toro 105873

DISCONTINUED

$

$

Not available

19

Toro 923784

See Supercession: 3290-54
(Superseded to 3290-54)

$0.99

$

Usually ships in 3-6 days

0

20

Toro 100571

DISCONTINUED

$

$

Not available

21

Toro 102046

DISCONTINUED

$

$

Not available

22

Toro 109604

DISCONTINUED

$

$

Not available

23

Toro 5924

HEX NUT 10-32 E.S. + + USE 3296-21 + +

$

$

Not available

24

Toro 109605

See Supercession: 110979
(Superseded to 110979)

$

$

Not available

25

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

26

Toro 104266

DISCONTINUED

$

$

Not available

27

Toro 106860

DISCONTINUED

$

$

Not available

28

Toro 109553

See Supercession: 28-8080
(Superseded to 28-8080)

$27.99

$

Usually ships in 3-6 days

0

29

Toro 3660

See Supercession: 704057
(Superseded to 704057)

$

$

Not available

30

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

31

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

32

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 9

0

33

Toro 105842

See Supercession: 104-8162
(Superseded to 104-8162)

$

$

Not available

34

Toro 106948

TRAY-BATTERY

$12.99

$

In Stock, only 3 left!

0

34

Toro 110298

TRAY BATTERY

$33.99

$

In Stock, only 1 left!

0

35

Toro 109676

DISCONTINUED

$

$

Not available

36

Toro 109112

DISCONTINUED

$

$

Not available

37

Toro 109547

HOOK

$10.99

$

In Stock, only 1 left!

0

38

Toro 105504

ROD-HOLD DOWN

$27.99

$

In Stock, only 4 left!

0

39

Toro 8830

CLIP

$

$

Not available

40

Toro 908032

See Supercession: 323-4
(Superseded to 323-4)

$4.49

$

In Stock, Qty 20+

0

41

Toro 108307

DISCONTINUED

$

$

Not available

42

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

43

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$15.99

$

In Stock, only 4 left!

0

44

Toro 102651

DUP PART SEE $BOOK

$

$

Not available

45

Toro 108767

HOURMETER

$545.99

$

Usually ships in 3-6 days

0

46

Toro 103726

DISCONTINUED

$

$

Not available

47

Toro 108141

DISCONTINUED

$

$

Not available

48

Toro 108768

DISCONTINUED

$

$

Not available

49

Toro 915538

See Supercession: 3217-26
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

50

Toro 920120

See Supercession: 3255-17
(Superseded to 3255-17)

$0.99

$

Usually ships in 3-6 days

0
