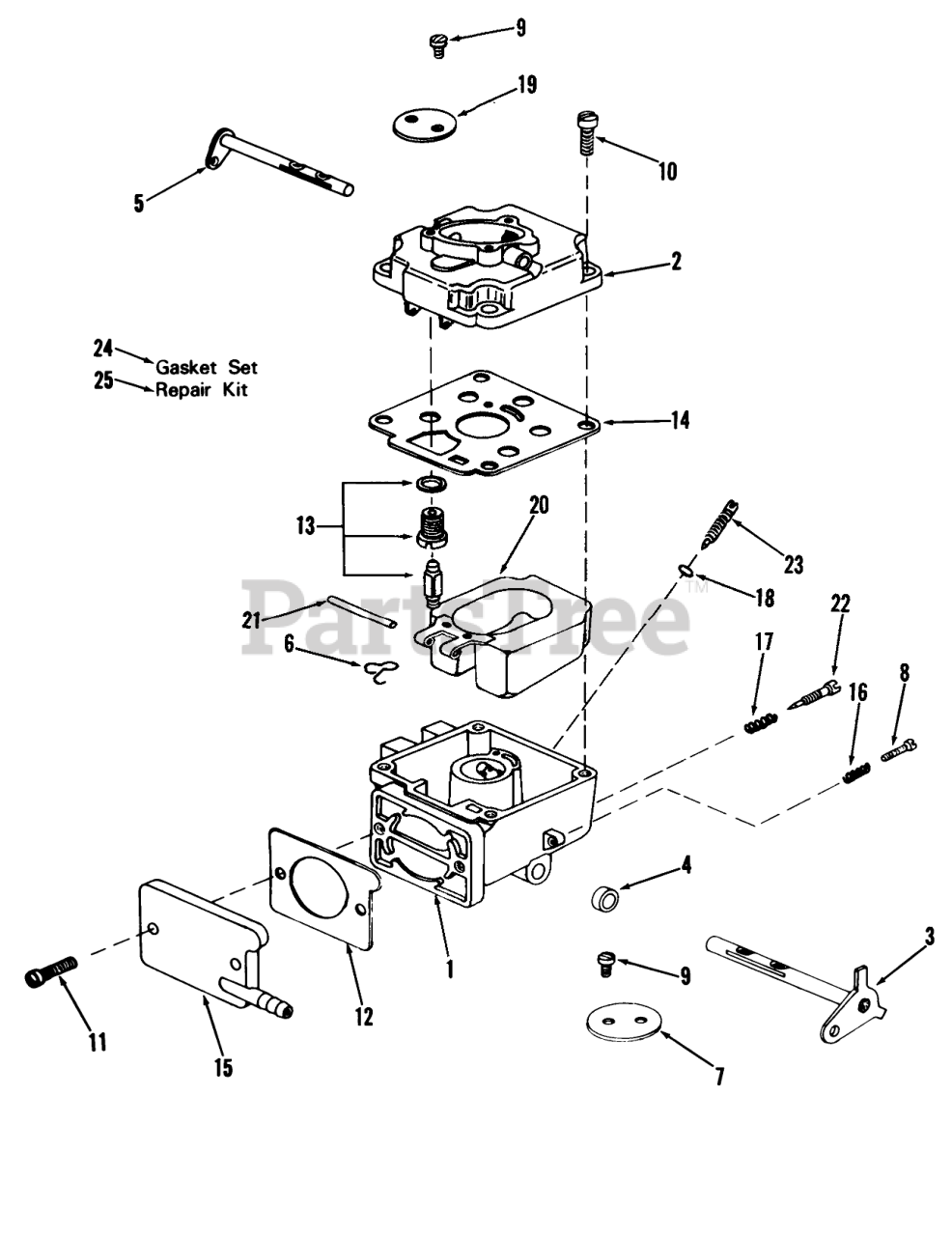

01-20KS00 (D-200) - Toro Garden Tractor (1981) D-160 Onan Engine, Carburetor Parts Group Parts Diagram

Garden Tractor

D-160 Onan Engine, Carburetor Parts Group Parts Diagram

  • Title

1

Toro 201296

DUP PART SEE $BOOK

$

$

Not available

2

Toro 201339

DISCONTINUED

$

$

Not available

3

Toro 201200

Shaft-Throttle

$

$

Currently unavailable

4

Toro 201201

DISCONTINUED

Note: Indicates parts included in Gasket Set part no. 201338.

$

$

Not available

5

Toro 201202

SHAFT-CHOKE

$86.99

$

Usually ships in 3-6 days

0

6

Toro 201203

DISCONTINUED

$

$

Not available

7

Toro 201204

DISCONTINUED

$

$

Not available

8

Toro 201205

DISCONTINUED

$

$

Not available

9

Toro 201206

Screw-Fly Mounting

$

$

Currently unavailable

10

Toro 201207

SCREW-BOWL COVER MTG

$80.99

$

Usually ships in 3-6 days

0

11

Toro 201207

SCREW-BOWL COVER MTG

$80.99

$

Usually ships in 3-6 days

0

12

Toro 201209

DISCONTINUED
(Superseded to 201221)

Note: Indicates parts included in Gasket Set part no. 201338.

$

$

Not available

13

Toro 201210

DISCONTINUED

$

$

Not available

14

Toro 201340

? Gasket

Note: Indicates parts included in Gasket Set part no. 201338.

$

$

Not available

15

Toro 201212

DISCONTINUED

$

$

Not available

16

Toro 201213

DISCONTINUED

$

$

Not available

17

Toro 201214

DISCONTINUED

$

$

Not available

18

Toro 201215

DISCONTINUED

Note: Indicates parts included in Gasket Set part no. 201338.

$

$

Not available

19

Toro 201216

DISCONTINUED

$

$

Not available

20

Toro 201217

DISCONTINUED

$

$

Not available

21

Toro 201218

Shaft,Float Lever

$

$

Currently unavailable

22

Toro 201219

DISCONTINUED

$

$

Not available

23

Toro 201220

DISCONTINUED

$

$

Not available

24

Toro 201338

DISCONTINUED

$

$

Not available

25

Toro 201337

DISCONTINUED

$

$

Not available
