02611 - Toro HoverPro 550 Walk-Behind Mower (SN: 408000000 - 999999999) Flywheel and Ignition Coil Assembly Parts Diagram

HoverPro 550 Walk-Behind Mower

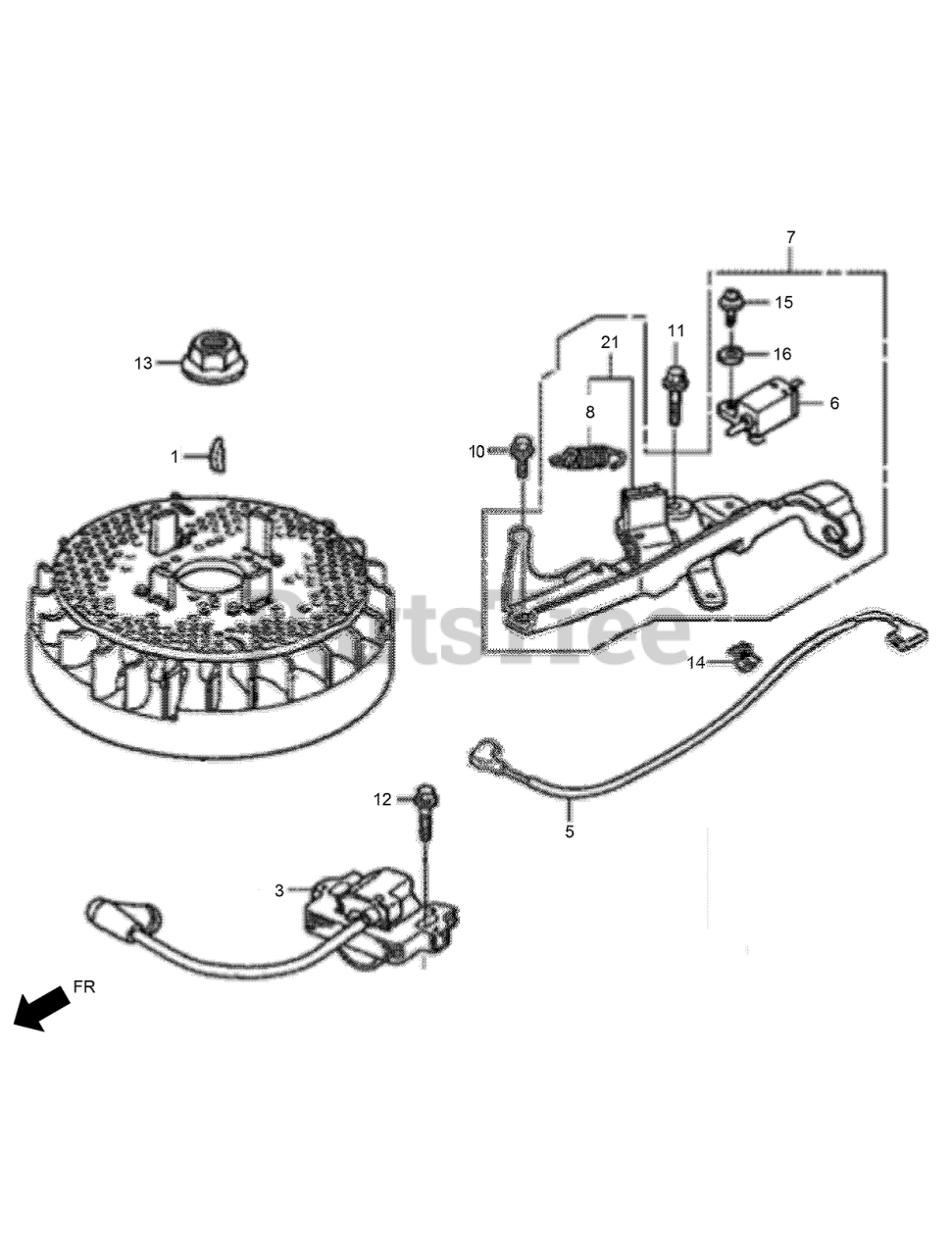

Flywheel and Ignition Coil Assembly Parts Diagram

  • Title

1

Toro 132-0168

KEY-SPECIAL WOODRUFF-25X18

$1.49

$

Usually ships in 3-6 days

0

3

Toro 132-0512

COIL ASM-IGNITION

$156.99

$

Usually ships in 3-6 days

0

5

Toro 132-0524

CORD-STOP SWITCH

$14.99

$

Usually ships in 3-6 days

0

6

Toro 132-0531

SWITCH ASM-ENGINE STOP

$25.99

$

Usually ships in 3-6 days

0

7

Toro 132-0534

BRAKE ASM

$53.99

$

Usually ships in 3-6 days

0

8

Toro 132-0538

SPRING-BRAKE LEVER

$6.99

$

Usually ships in 3-6 days

0

10

Toro 132-0595

BOLT-FLANGE-6X14

$10.99

$

Usually ships in 3-6 days

0

11

Toro 132-0603

BOLT-FLANGE-6X23

$8.49

$

Usually ships in 3-6 days

0

12

Toro 132-0603

BOLT-FLANGE-6X23

$8.49

$

Usually ships in 3-6 days

0

13

Toro 132-0625

NUT-SPECIAL-14MM

$8.99

$

Usually ships in 3-6 days

0

14

Toro 132-0645

CLIP A-CABLE

$2.99

$

Usually ships in 3-6 days

0

15

Toro 132-0682

SCREW-WASHER-4X12

$8.99

$

Usually ships in 3-6 days

0

16

Toro 132-0689

WASHER-PLAIN-4MM

$9.49

$

Usually ships in 3-6 days

0

21

Toro 132-0537

BRAKE SUB ASM

$46.99

$

Usually ships in 3-6 days

0
