02615 - Toro HoverPro 400 Walk-Behind Mower (SN: 408000000 - 999999999) Carburetor Assembly Parts Diagram

HoverPro 400 Walk-Behind Mower

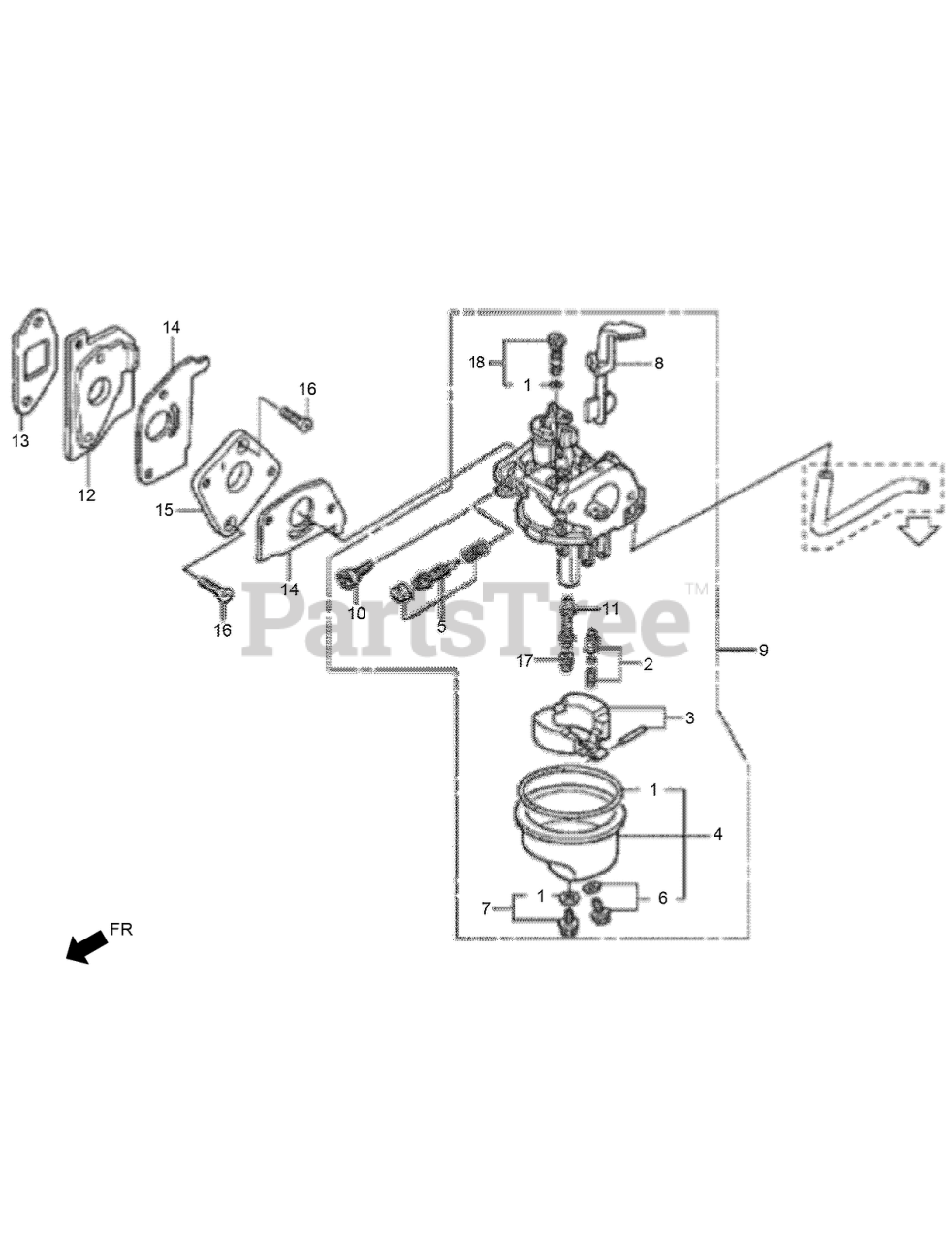

Carburetor Assembly Parts Diagram

  • Title

1

Toro 132-0240

GASKET SET

$28.99

$

Usually ships in 3-6 days

0

2

Toro 132-0241

VALVE SET-FLOAT

$64.99

$

Usually ships in 3-6 days

0

3

Toro 132-0243

FLOAT SET

$60.99

$

Usually ships in 3-6 days

0

4

Toro 132-0248

CHAMBER SET-FLOAT

$89.99

$

Usually ships in 3-6 days

0

5

Toro 132-0250

SCREW SET-PILOT

$71.99

$

Usually ships in 3-6 days

0

6

Toro 132-0252

SCREW SET-DRAIN

$47.99

$

Usually ships in 3-6 days

0

7

Toro 132-0255

SCREW SET

$56.99

$

Usually ships in 3-6 days

0

8

Toro 132-0258

CHOKE SET

$84.99

$

Usually ships in 3-6 days

0

9

Toro 132-0266

CARBURETOR ASM

$125.99

$

Usually ships in 3-6 days

0

10

Toro 132-0268

SCREW-THROTTLE STOP

$61.99

$

Usually ships in 3-6 days

0

11

Toro 132-0275

NOZZLE-MAIN

$45.99

$

Usually ships in 3-6 days

0

12

Toro 132-0280

INSULATOR-CARBURETOR

$20.99

$

Usually ships in 3-6 days

0

13

Toro 132-0283

PACKING-INSULATOR

$4.99

$

Usually ships in 3-6 days

0

14

Toro 132-0286

PACKING-CARBURETOR

$5.99

$

Usually ships in 3-6 days

0

15

Toro 132-0288

PLATE-CARBURETOR JOINT

$38.99

$

Usually ships in 3-6 days

0

16

Toro 132-0680

SCREW-FLAT-5X20

$4.99

$

Usually ships in 3-6 days

0

17

Toro 131-8236

JET-MAIN NO. 52

$23.99

$

Usually ships in 3-6 days

0

18

Toro 131-8238

JET SET-PILOT, NO. 35

$31.99

$

Usually ships in 3-6 days

0
