02615 - Toro HoverPro 400 Walk-Behind Mower (SN: 408000000 - 999999999) Control Assembly Parts Diagram

HoverPro 400 Walk-Behind Mower

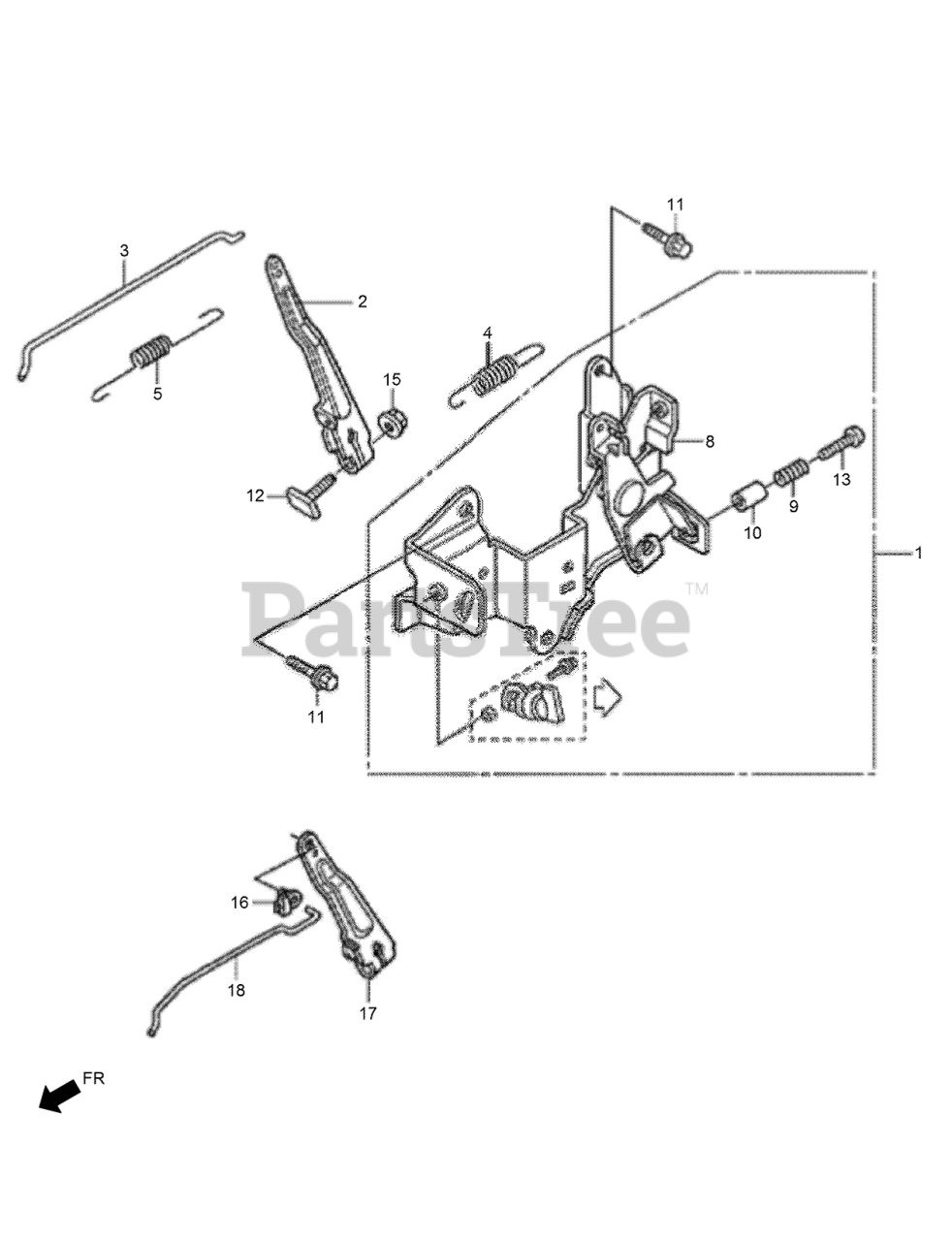

Control Assembly Parts Diagram

  • Title

1

Toro 132-0293

CONTROL ASM

$159.99

$

Usually ships in 3-6 days

0

2

Toro 132-0313

ARM-GOVERNOR

$17.99

$

Usually ships in 3-6 days

0

3

Toro 132-0319

ROD-GOVERNOR

$9.49

$

Usually ships in 3-6 days

0

4

Toro 132-0323

SPRING-GOVERNOR

$8.49

$

Usually ships in 3-6 days

0

5

Toro 132-0327

SPRING-THROTTLE RETURN

$3.49

$

Usually ships in 3-6 days

0

8

Toro 132-0339

CONTROL BASE ASM

$248.99

$

Usually ships in 3-6 days

0

9

Toro 132-0340

SPRING-CONTROL ADJUSTING

$9.99

$

Usually ships in 3-6 days

0

10

Toro 132-0342

COLLAR-STOPPER

$8.49

$

Usually ships in 3-6 days

0

11

Toro 132-0577

BOLT-FLANGE-5X12

$5.99

$

Usually ships in 3-6 days

0

12

Toro 132-0597

BOLT-GOVERNOR ARM

$8.99

$

Usually ships in 3-6 days

0

13

Toro 132-0601

SCREW-RECESSED-5X28

$55.99

$

Usually ships in 3-6 days

0

15

Toro 132-4881

NUT-FLANGE-6MM

$3.49

$

Usually ships in 3-6 days

0

16

Toro 132-0290

JOINT-ROD

$7.99

$

Usually ships in 3-6 days

0

17

Toro 132-0310

ARM-GOVERNOR

$18.99

$

Usually ships in 3-6 days

0

18

Toro 132-0314

ROD-GOVERNOR

$9.49

$

Usually ships in 3-6 days

0
