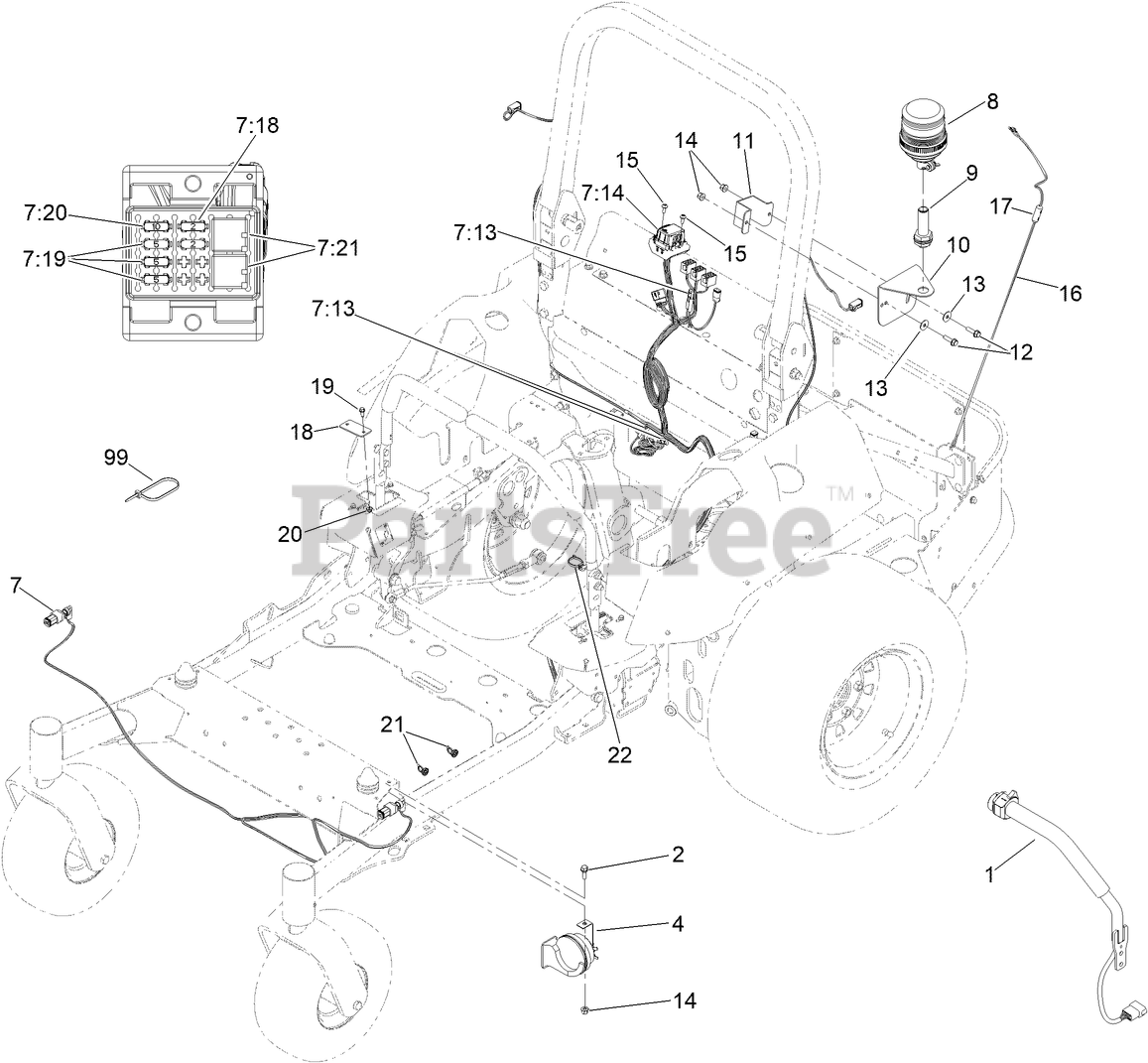

02937 - Toro Road Light Kit for Z-Master Professional 7500-D Series Mowers (SN: 400000000 - 999999999) Wire Harness, Horn and Beacon Assembly Parts Diagram

Road Light Kit for Z-Master Professional 7500-D Series Mowers

Wire Harness, Horn and Beacon Assembly Parts Diagram

  • Title

1

Toro 140-6692

LH LEVER ASM

$1021.99

$

Usually ships in 3-6 days

0

2

Toro 134-3747

SCREW-HHF

$

$

Currently unavailable

4

Toro 110-2594

HORN

$

$

Currently unavailable

7

Toro 122-2482

HARNESS-WIRE, EU LIGHT KIT

$

$

Currently unavailable

7:13

Toro 116-0053

CAP-PLUG

$44.99

$

Usually ships in 3-6 days

0

7:14

Toro 32181-015

COVER-FUSEBLOCK

$47.99

$

Usually ships in 3-6 days

0

7:18

Toro 121-8861

FUSE-MINI BLADE, 2 AMP

$4.99

$

Usually ships in 3-6 days

0

7:19

Toro 121-8864

FUSE-MINI BLADE, 5 AMP

$5.99

$

Usually ships in 3-6 days

0

7:20

Toro 121-8866

FUSE-MINI BLADE, 10 AMP

$5.99

$

Usually ships in 3-6 days

0

7:21

Toro 126-3991

RELAY-MICRO

$44.99

$

In Stock, Qty 18

0

8

Toro 134-5326

LIGHT-BEACON ASM

$

$

Currently unavailable

9

Toro 119-8095

SOCKET-BEACON

$122.99

$

Usually ships in 3-6 days

0

10

Toro 134-6548-03

BRACKET,BEACON

$

$

Currently unavailable

11

Toro 111-2195-03

CLAMP-50MM

$

$

Currently unavailable

12

Toro 134-3748

SCREW-HHF

$

$

Currently unavailable

13

Toro 09270

WASHER-PLAIN

$

$

Not available

14

Toro 134-3762

NUT-FLANGE, NI

$

$

Currently unavailable

15

Toro 09784

SCREW-SOC, HD

$

$

Currently unavailable

16

Toro 122-1222

HARNESS-WIRE

$

$

Currently unavailable

17

Toro 134-5327

FERRITE, EMC SUPPRESION

$

$

Currently unavailable

18

Toro 134-7530-03

PLATE - SPEED LIMITER

$

$

Currently unavailable

19

Toro 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

20

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

21

Toro 32180-139

MOUNT-TIE WRAP, MAGNETIC

$28.99

$

Usually ships in 3-6 days

0

22

Toro 32180-150

CLIP-HARNESS. EDGE, W/TIE-WRAP

$8.99

$

Usually ships in 3-6 days

0

99

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, only 3 left!

0

99

Toro 74-07-020

TIE-CABLE

$

$

Not available

99

Toro HY3966

TIE-CABLE

$

$

Not available
