02938 - Toro Road Light Kit for eZ-Master Revolution Mowers (SN: 400000000 - 999999999) Taillight Mount Assembly Parts Diagram

Road Light Kit for eZ-Master Revolution Mowers

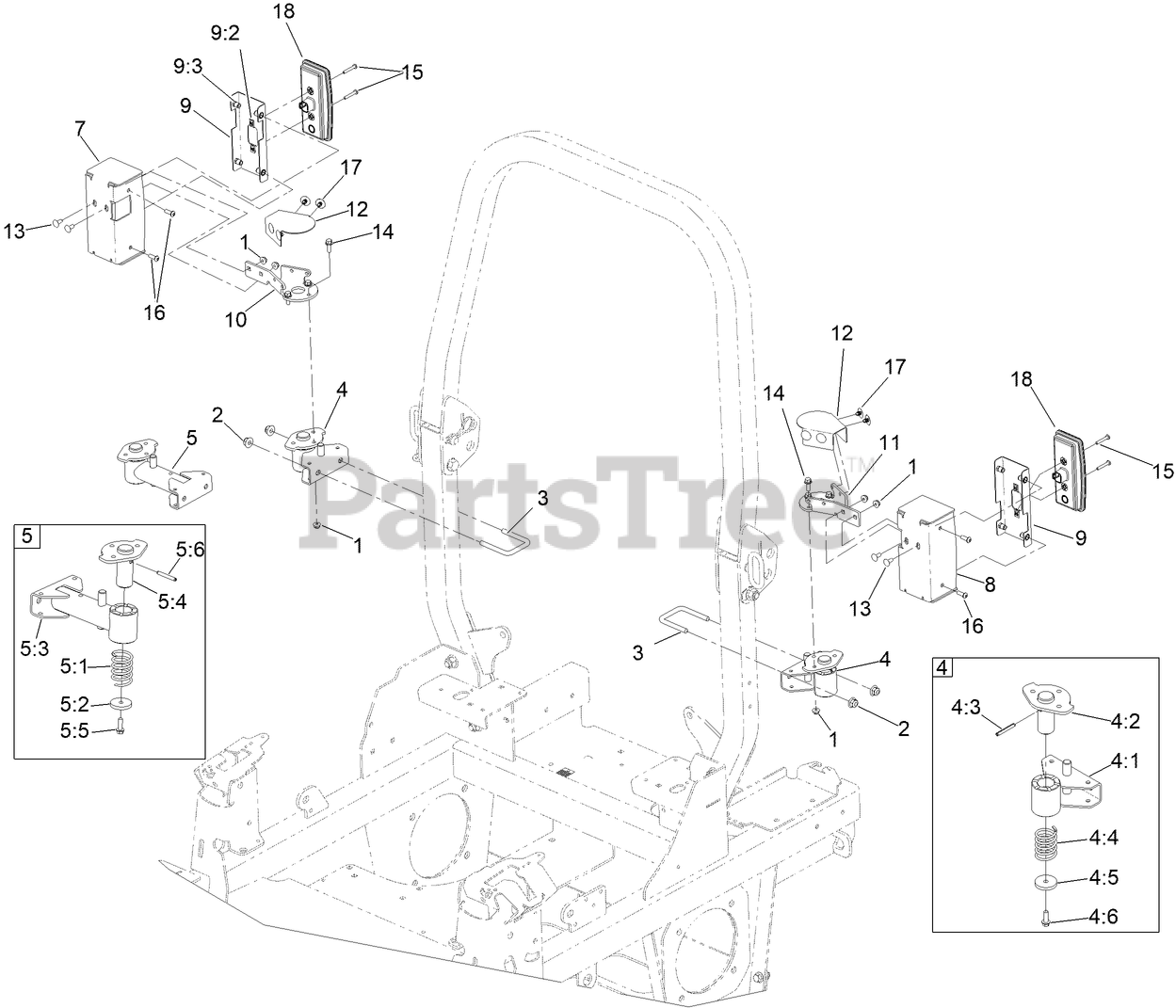

Taillight Mount Assembly Parts Diagram

  • Title

1

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

2

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 130-6549

BOLT-U

$32.99

$

Usually ships in 3-6 days

0

4

Toro 134-6518

BRACKET-PIVOT, ASM

$

$

Currently unavailable

4:1

Toro 134-6517-03

PIVOT BRACKET ASM [BLACK]

$

$

Currently unavailable

4:2

Toro 140-6682-03

PIVOT

$

$

Currently unavailable

4:3

Toro 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 11

0

4:4

Toro 61-3270-03

SPRING-COMPRESSION

$

$

Currently unavailable

4:5

Toro 134-8192

WASHER 34 DIA X 7 DIA X 5 THK

$

$

Currently unavailable

4:6

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

5

Toro 134-6520

BRACKET-PIVOT, ASM WIDE

$

$

Currently unavailable

5:1

Toro 61-3270-03

SPRING-COMPRESSION

$

$

Currently unavailable

5:2

Toro 134-8192

WASHER 34 DIA X 7 DIA X 5 THK

$

$

Currently unavailable

5:3

Toro 134-6519-03

PIVOT BRACKET [BLA

$

$

Currently unavailable

5:4

Toro 140-6682-03

PIVOT

$

$

Currently unavailable

5:5

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

5:6

Toro 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 11

0

7

Toro 134-8126-03

HOUSING-LIGHT, RH

$

$

Currently unavailable

8

Toro 134-8127-03

HOUSING-LIGHT, LH

$

$

Currently unavailable

9

Toro 140-6835

INNER MOUNT ASM

$

$

Currently unavailable

9:2

Toro 107-1013

NUT-SPEED

$3.49

$

Usually ships in 3-6 days

0

9:3

Toro 138-2760

NUT-CLINCH, HEX

$2.49

$

Usually ships in 3-6 days

0

10

Toro 140-6861-03

MOUNT-LIGHT, RH

$

$

Currently unavailable

11

Toro 140-6862-03

MOUNT-LIGHT, LH

$

$

Currently unavailable

12

Toro 140-6863-03

COVER-MOUNT

$

$

Currently unavailable

13

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

14

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

15

Toro 3250-23

SCREW-PPH

$3.49

$

Usually ships in 3-6 days

0

16

Toro 3274-69

SCREW-HSBH

$1.49

$

In Stock, Qty 17

0

17

Toro 139-3205

RIVET-PLASTIC

$1.49

$

Usually ships in 3-6 days

0

18

Toro 139-2071

LIGHT-REAR TAIL/STOP/TURN

$65.99

$

Usually ships in 3-6 days

0
