04438900 - Ariens RT310 Hydrostatic Transmission Hydro-static Transmission - 04438900 Parts Diagram

RT310 Hydrostatic Transmission

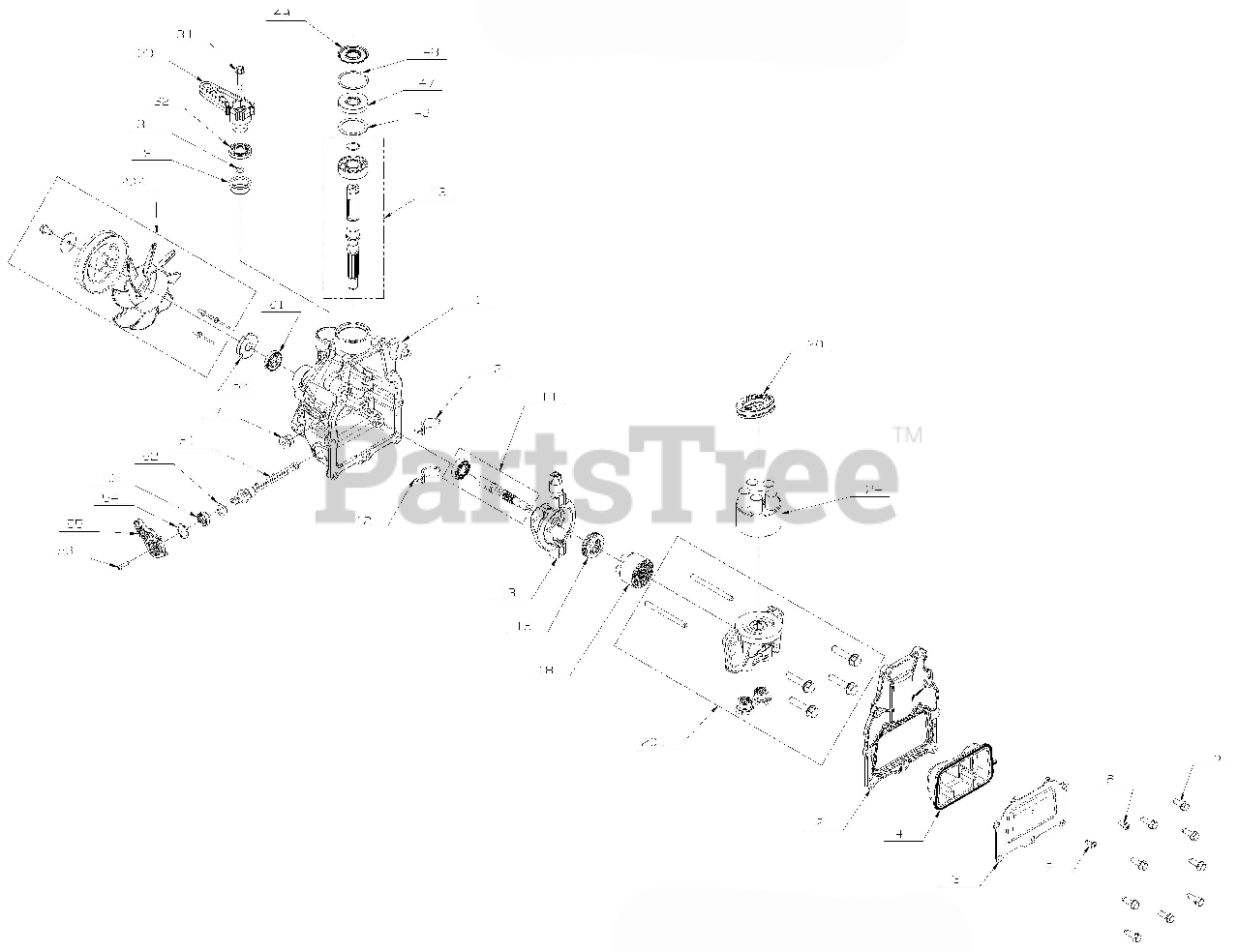

Hydro-static Transmission - 04438900 Parts Diagram

  • Title

1

HOUSING, MAIN, SHOT

Note: 54565

$

$

Not available

2

Ariens 27104900

COVER

Note: 53934

$28.99

$

Usually ships in 4-12 days

0

3

PLATE, EXPANSION

Note: 53943

$

$

Not available

4

Ariens 27105100

BLADDER

Note: 53940

$15.99

$

Usually ships in 4-12 days

0

5

Ariens 21543759

HFHCS 1/4-20X.75

Note: 50752

$2.99

$

Usually ships in 4-12 days

0

6

BOLT, SELF TAPPING 10-32 X .5

Note: 50653

$

$

Not available

7

PLUG, 9/16-18 STR THREAD SOCKET HEAD

Note: 9005110-5600

$

$

Not available

9

GUIDE, PLASTIC ALIGNMENT

Note: 54576

$

$

Not available

12

Ariens 27105200

BEARING, CRADLE

Note: 54229

$23.99

$

Usually ships in 4-12 days

0

13

SWASH PLATE

Note: 54329

$

$

Not available

14

KIT, INPUT SHAFT

Note: 72334

$

$

Not available

15

BEARING, THRUST 21 X 35 X 10

Note: 53894

$

$

Not available

18

KIT, 3cc BLOCK

Note: 72335

$

$

Not available

24

Ariens 21543889

KIT, 10 CC BLOCK

Note: 70331

$99.99

$

Usually ships in 4-12 days

0

28

Ariens 08609100

BEARING. THRUST 30 X 52 X 13

Note: 50551

$16.99

$

Usually ships in 4-12 days

0

31

O-RING, -.11, .301, .07, 70A

Note: 53963

$

$

Not available

32

SEAL, LIP 20 X 30 X 7

Note: 9008000-0124

$

$

Not available

33

Ariens 27105800

ARM, CONTROL

Note: 54190

$42.99

$

Usually ships in 4-12 days

0

34

Ariens 27105900

SCREW,HEX WASHER 1/4-20X1.125

Note: 53246

$2.99

$

In Stock, only 1 left!

0

43

Ariens 27106000

KIT, MOTOR SHAFT

Note: 72336

$95.99

$

Usually ships in 4-12 days

0

46

Ariens 21543773

WASHER 1.23X1.56X.04

Note: 50951

$2.99

$

In Stock, only 1 left!

0

47

Ariens 21543816

SEAL, LIP 17X40X7

Note: 51161

$7.99

$

Usually ships in 4-12 days

0

48

RING, M40, RET, INT

Note: 54000

$

$

Not available

49

SLEEVE, SEAL GUARD

Note: 54039

$

$

Not available

51

ACTUATOR, BYPASS

Note: 54188

$

$

Not available

52

WASHER, 345 X .73 X .01, SPRING

Note: 54016

$

$

Not available

53

Ariens 21543845

SEAL, LIP .375X.75X.25

Note: 51626

$9.99

$

Usually ships in 4-12 days

0

54

Ariens 21543846

RING, RET .750

Note: 51627

$

$

Not available

55

Ariens 27106100

ARM, BYPASS

Note: 54090

$5.49

$

Usually ships in 4-12 days

0

56

SCREW, M4 X 16, WUPLAST

Note: 54051

$

$

Not available

61

SEAL, .47 X 1.10 X .28, LIP, TC4

Note: 53916

$

$

Not available

62

Ariens 27106300

HUB, PULLEY DIA 1.41

Note: 53949

$2.99

$

Usually ships in 4-12 days

0

200

Ariens 27106500

KIT, SEAL

Note: 72337

$42.99

$

Usually ships in 4-12 days

0

201

KIT, CENTER SECTION

Note: 72338

$

$

Not available

202

Ariens 52611600

KIT, RT-310 FAN REPLACEMENT

Note: 72339

$32.99

$

Usually ships in 4-12 days

0

Note: Transmission oil 0 w 40 approximately 32 oz

$

$

Not available
