04828200 - Gravely 3400 Series Hydro-Gear Transmission Transmission, RH - 04828200 Parts Diagram

3400 Series Hydro-Gear Transmission

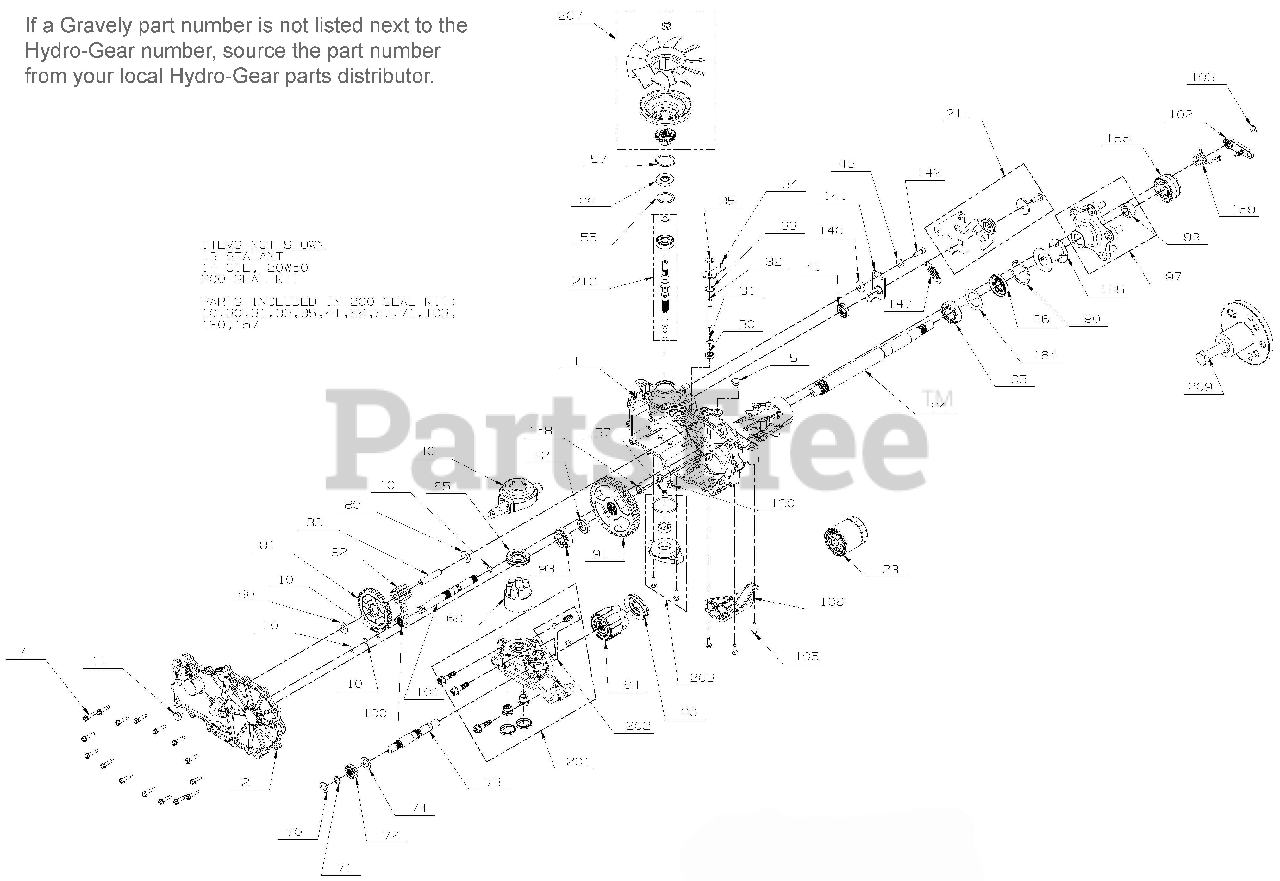

Transmission, RH - 04828200 Parts Diagram

  • Title

1

KIT, MAIN HOUSING, RH, CHARGE, CONTROL

Note: Hydro-Gear p/n 72025

$

$

Not available

2

KIT, SIDE COVER RH

Note: Hydro-Gear p/n 71990

$

$

Not available

5

PLUG, EXTERNAL HEX VENT 9/16-18

Note: Hydro-Gear p/n 54730

$

$

Not available

7

Gravely 27105900

SCREW,HEX WASHER 1/4-20X1.125

Note: Hydro-Gear p/n 53246

$2.99

$

In Stock, only 1 left!

0

10

0-RING -111, .424 X .103

Note: Hydro-Gear p/n 51804

$

$

Not available

11

PLUG, EXTERNAL HEX VENT 9/16-18

Note: Hydro-Gear p/n 54730

$

$

Not available

13

Gravely 21543771

SEALANT TUBE 10.1OZ.

Note: Hydro-Gear p/n 50928

$103.99

$

Usually ships in 4-12 days

0

23

Gravely 21545100

OIL FILTER, TRANSMISSION

Note: Hydro-Gear p/n 52114

$42.99

$

Usually ships in 4-12 days

0

14

OIL, 20W50

$

$

Not available

30

Gravely 21543845

SEAL, LIP .375X.75X.25

Note: Hydro-Gear p/n 51626

$9.99

$

Usually ships in 4-12 days

0

31

Gravely 08622500

RING. RETAINING

Note: Hydro-Gear p/n 51628

$4.49

$

In Stock, Qty 12

0

32

ROD, BYPASS .375 x 2.88

Note: Hydro-Gear p/n 52136

$

$

Not available

33

Gravely 21543846

RING, RET .750

Note: Hydro-Gear p/n 51627

$

$

Not available

34

Gravely 21544046

ARM, BYPASS

Note: Hydro-Gear p/n 51910

$12.99

$

Usually ships in 4-12 days

0

35

Gravely 21543848

RING, RTNG .

Note: Hydro-Gear p/n 51630

$4.49

$

Usually ships in 4-12 days

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

Note: Hydro-Gear p/n 51048

$73.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 18X32X7

Note: Hydro-Gear p/n 51140

$5.49

$

Usually ships in 4-12 days

0

45

Gravely 08611200

WASHER

Note: Hydro-Gear p/n 44130

$4.49

$

Usually ships in 4-12 days

0

55

Gravely 21543773

WASHER 1.23X1.56X.04

Note: Hydro-Gear p/n 50951

$2.99

$

In Stock, only 1 left!

0

56

Gravely 21543816

SEAL, LIP 17X40X7

Note: Hydro-Gear p/n 51161

$7.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RET 1.56 INT

Note: Hydro-Gear p/n 50329

$3.99

$

Usually ships in 4-12 days

0

60

Gravely 21548902

HG THRUST BEARING (51462)

Note: Hydro-Gear p/n 51462

$27.99

$

Usually ships in 4-12 days

0

64

Gravely 21548904

HG 16CC CYLINDER BLOCK (71579)

Note: Hydro-Gear p/n 71579

$103.99

$

In Stock, only 2 left!

0

65

Gravely 21548903

HG THRUST BLOCK (53502)

Note: Hydro-Gear p/n 53502

$

$

Not available

69

Gravely 21548905

HG SEVEN PISTON BLOCK (71971)

Note: Hydro-Gear p/n 71971

$81.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

WASHER .63X1.0X.05

Note: Hydro-Gear p/n 44371

$3.99

$

Usually ships in 4-12 days

0

71

Gravely 21543704

RING, RET 62 EXT

Note: Hydro-Gear p/n 44145

$2.99

$

Usually ships in 4-12 days

0

72

GEAR, 13T

Note: Hydro-Gear p/n 52342

$

$

Not available

73

SHAFT, MOTOR

Note: Hydro-Gear p/n 52150

$

$

Not available

74

Gravely 21543788

WASHER .71 X 1.16 X .04

Note: Hydro-Gear p/n 51069

$

$

Not available

80

Gravely 21543727

WASHER .75X1.5X.03

Note: Hydro-Gear p/n 50152

$

$

Not available

81

GEAR, 46T

Note: Hydro-Gear p/n 52343

$

$

Not available

82

GEAR, 11T

Note: (STEEL) Hydro-Gear p/n 52586

$

$

Not available

83

Gravely 21543793

JACK SHAFT (PIN)

Note: Hydro-Gear p/n 51083

$

$

Not available

90

Gravely 08616500

RING, RETAINING

Note: Hydro-Gear p/n 50859

$3.99

$

Usually ships in 4-12 days

0

91

GEAR, 54T

Note: Hydro-Gear p/n 53327

$

$

Not available

92

SPACER, .750 X 1.320 X .257

Note: Hydro-Gear p/n 53336

$

$

Not available

93

KIT, BEARING

Note: Hydro-Gear p/n 72749

$

$

Not available

94

SHAFT, AXLE

Note: Hydro-Gear p/n 53527

$

$

Not available

95

Gravely 08614000

BEARING, BALL 25.4 X 52 X 15

Note: Hydro-Gear p/n 53656

$15.99

$

In Stock, only 2 left!

0

96

Gravely 08614300

SEAL, LIP

Note: Hydro-Gear p/n 53699

$7.99

$

In Stock, only 4 left!

0

97

Gravely 21544023

HUB, HYDROGEAR P/N 71691

Note: Hydro-Gear p/n 71691

$81.99

$

In Stock, only 1 left!

0

99

Gravely 08621100

NUT, HEX, LOCK 3/4-16

Note: Hydro-Gear p/n 53768

$7.99

$

Usually ships in 4-12 days

0

100

PAWL, BRAKE

Note: Hydro-Gear p/n 52766

$

$

Not available

101

SHAFT, BRAKE

Note: Hydro-Gear p/n 53539

$

$

Not available

102

Gravely 21544067

KIT, BRAKE ARM RIGHT HAND
(Superseded to 21544037)

Note: Hydro-Gear p/n 71957

$15.99

$

Usually ships in 4-12 days

0

103

RING, RETAINING - EXTERNAL .438

Note: Hydro-Gear p/n 53019

$

$

Not available

105

Gravely 21543759

HFHCS 1/4-20X.75

Note: Hydro-Gear p/n 50752

$2.99

$

Usually ships in 4-12 days

0

106

Gravely 21544054

GUARD, FILTER, RH

Note: Hydro-Gear p/n 53655

$15.99

$

Usually ships in 4-12 days

0

130

TUBE, CHARGE TRIPLE 0-RING

Note: Hydro-Gear p/n 54501

$

$

Not available

140

Gravely 21543870

SPACER

Note: Hydro-Gear p/n 54315

$

$

Not available

141

Gravely 21543866

ARM, NEUTRAL RIGHT

Note: Hydro-Gear p/n 51945

$11.99

$

Usually ships in 4-12 days

0

142

Gravely 21543843

SHCS 5/16-24X1 PATCH

Note: (W/PATCH) Hydro-Gear p/n 51616

$

$

Not available

147

Gravely 21544041

RTN SPRING HG 51605

Note: Hydro-Gear p/n 51605

$6.49

$

Usually ships in 4-12 days

0

156

CAP, AXLE

Note: Hydro-Gear p/n 53088

$

$

Not available

157

SEAL, GEROTOR .281 X .420 X .160

Note: Hydro-Gear p/n 53696

$

$

Not available

158

Gravely 21543799

MAGNET, RING

Note: Hydro-Gear p/n 51100

$2.99

$

Usually ships in 4-12 days

0

159

Gravely 21544052

SPRING, TORSION CCW

Note: Hydro-Gear p/n 53429

$11.99

$

Usually ships in 4-12 days

0

164

WASHER, 1.355 x 2.035 x .021 FLAT

Note: Hydro-Gear p/n 53514

$

$

Not available

165

TUBE, AXLE 2.03

Note: Hydro-Gear p/n 53496

$

$

Not available

200

Gravely 21544034

HG SEAL KIT (71976)

Note: Hydro-Gear p/n 71976

$52.99

$

Usually ships in 4-12 days

0

201

KIT, CENTER SECTION RH CHARGE

Note: Hydro-Gear p/n 72502

$

$

Not available

202

KIT, CHARGE RELIEF

Note: Hydro-Gear p/n 71436

$

$

Not available

203

Gravely 21544071

KIT, CHARGE PUMP

Note: Hydro-Gear p/n 71977

$90.99

$

Usually ships in 4-12 days

0

207

KIT, FAN-PULLEY

Note: Hydro-Gear p/n 72656

$

$

Not available

209

Gravely 21544009

HUB PULLER 4 BLT HYDGEAR 71459
(Superseded to 21544008)

Note: Hydro-Gear p/n 72320

$497.99

$

Usually ships in 4-12 days

0

210

Gravely 21544039

INPUT SHAFT HG 71978

Note: Hydro-Gear p/n 71978

$

$

Not available

211

Gravely 21544002

RTN KIT HYDROGEAR P/N 71597

Note: Hydro-Gear p/n 71597

$36.99

$

Usually ships in 4-12 days

0
