05-37MS05 - Toro 37" Side-Discharge Mower Deck (1985) Rear Discharge Mower-36 In. (92 Cm) 2 Parts Diagram

37" Side-Discharge Mower Deck

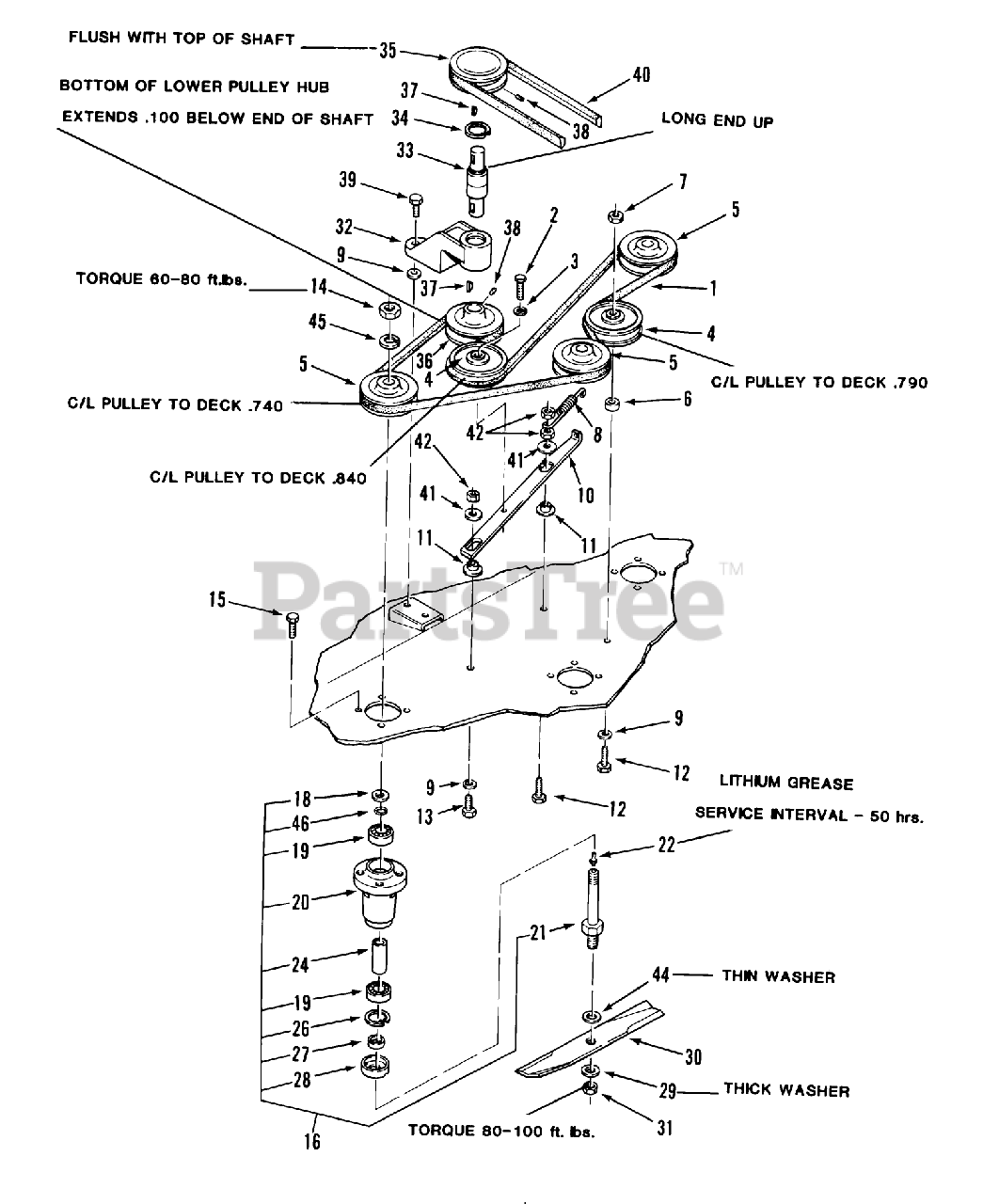

Rear Discharge Mower-36 In. (92 Cm) 2 Parts Diagram

  • Title

1

Toro 106751

V BELT

$47.99

$

Usually ships in 3-6 days

0

2

Toro 105865

DISCONTINUED

$

$

Not available

3

Toro 920083

See Supercession: 3253-21
(Superseded to 3253-21)

$0.99

$

In Stock, only 4 left!

0

4

Toro 7434

See Supercession: 112426
(Superseded to 112426)

$29.99

$

Usually ships in 3-6 days

0

5

Toro 109967

PULLEY

$79.99

$

In Stock, only 2 left!

0

6

Toro 102704

SPACER

$2.99

$

In Stock, Qty 8

0

7

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

8

Toro 100071

SPRING-EXTENSION

$12.99

$

In Stock, Qty 9

0

9

Toro 2844

WASHER

$3.49

$

In Stock, Qty 20+

0

10

Toro 105860

DISCONTINUED

$

$

Not available

11

Toro 107674

SPACER-BUSHING

$2.49

$

In Stock, Qty 20+

0

12

Toro 908037

See Supercession: 323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

13

Toro 908035

See Supercession: 323-7
(Superseded to 323-7)

$3.49

$

In Stock, Qty 20+

0

14

Toro 9150894

See Supercession: 3220-6
(Superseded to 3220-6)

Note: "4" At end indicates free-running nut.DO NOT use Eslok or other type locking nut.

$1.49

$

In Stock, Qty 17

0

15

Toro 908032

See Supercession: 323-4
(Superseded to 323-4)

$4.49

$

In Stock, Qty 20+

0

16

Toro 109964

DISCONTINUED

$

$

Not available

18

Toro 920215

See Supercession: 9202154
(Superseded to 9202154)

$3.49

$

In Stock, Qty 10

0

19

Toro 109966

BEARING-BALL

$17.99

$

In Stock, Qty 11

0

20

Toro 107448

HOUSING-SPINDLE

$

$

Not available

21

Toro 109965

See Supercession: 112673
(Superseded to 112673)

$177.99

$

Usually ships in 3-6 days

0

22

Toro 1030

DUP PART SEE $BOOK

$

$

Not available

24

Toro 110088

See Supercession: 116115
(Superseded to 116115)

$29.99

$

Usually ships in 3-6 days

0

26

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 20+

0

27

Toro 106068

SPACER-BLADE

$8.49

$

In Stock, Qty 5

0

28

Toro 106067

See Supercession: 106067-03
(Superseded to 106067-03)

$16.99

$

In Stock, only 2 left!

0

29

Toro 920258

SpeciaI Washer
(Superseded to 9202584)

$8.49

$

In Stock, only 2 left!

0

30

Toro 107983

S/A BLADE KIT

$170.99

$

Usually ships in 3-6 days

0

31

Toro 9150904

See Supercession: 3220-7
(Superseded to 3220-7)

Note: "4" At end indicates free-running nut.DO NOT use Eslok or other type locking nut.

$4.99

$

In Stock, Qty 20+

0

32

Toro 104176

See Supercession: 104176-01
(Superseded to 104176-01)

$

$

Not available

33

Toro 106388

BEARING-INT SHAFT

$186.99

$

Usually ships in 3-6 days

0

34

Toro 936021

See Supercession: 32120-10
(Superseded to 32120-10)

$1.49

$

In Stock, Qty 20+

0

35

Toro 106524

PULLEY

$

$

Not available

36

Toro 109310

PULLEY-SPLIT

$102.99

$

Usually ships in 3-6 days

0

37

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, only 1 left!

0

38

Toro 909862

See Supercession: 3246-2
(Superseded to 3246-2)

$0.99

$

In Stock, Qty 10

0

39

Toro 926715

Bolt
(Superseded to 9267154)

$3.99

$

In Stock, Qty 6

0

40

Toro 106533

V-BELT

$37.99

$

Usually ships in 3-6 days

0

41

Toro 107675

WASHER

$3.99

$

In Stock, Qty 20+

0

42

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

44

Toro 920257

See Supercession: 9202574
(Superseded to 9202574)

$2.49

$

In Stock, Qty 20+

0

45

Toro 920087

See Supercession: 3253-8
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

46

Toro 971015

O RING

$2.49

$

In Stock, Qty 8

0
