05-37MS05 - Toro 37" Side-Discharge Mower Deck (1985) Side Discharge Mower-32 In. (81 Cm) 2 Parts Diagram

37" Side-Discharge Mower Deck

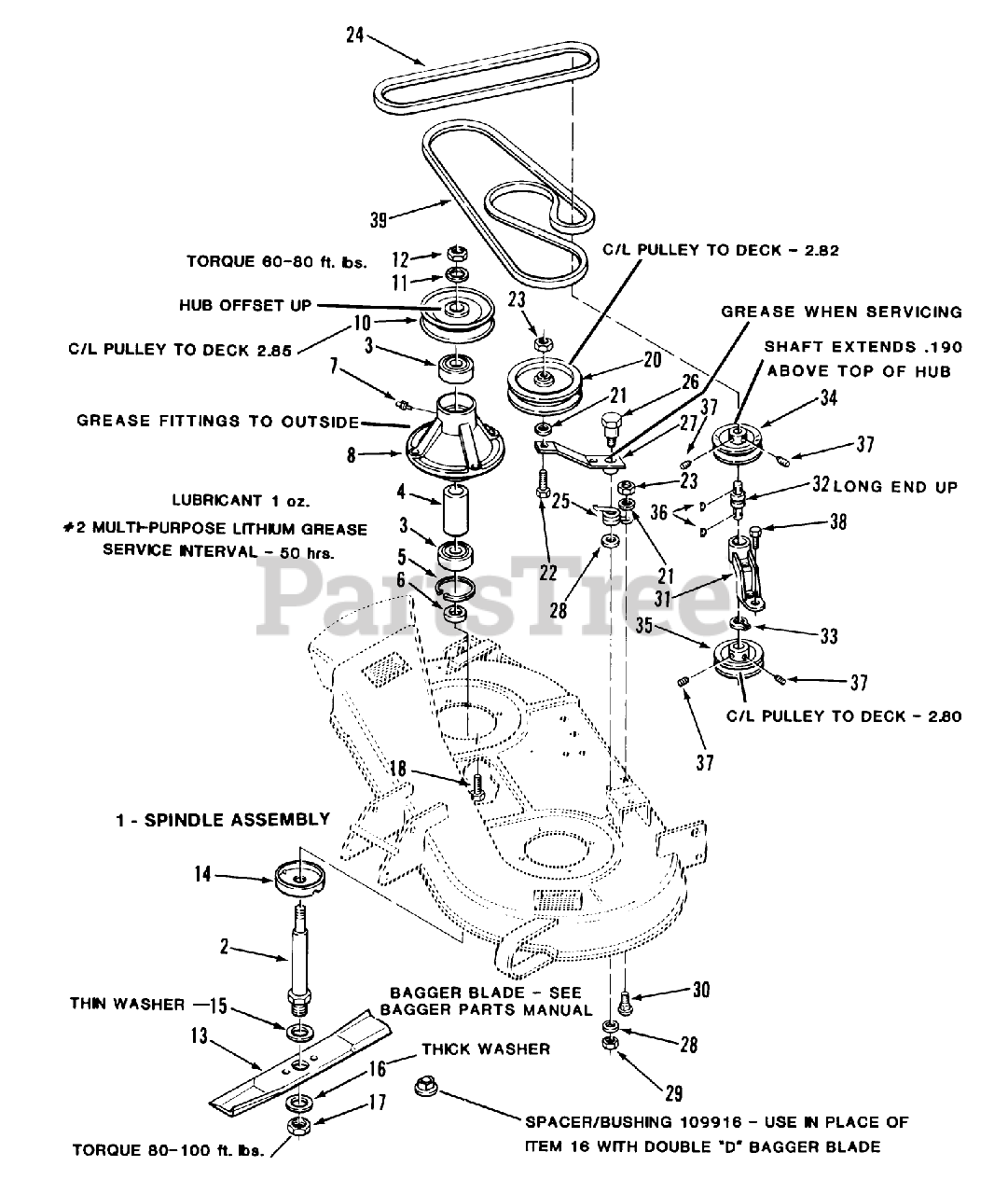

Side Discharge Mower-32 In. (81 Cm) 2 Parts Diagram

  • Title

1

Toro 109911

DISCONTINUED

$

$

Not available

2

Toro 109912

SHAFT SPINDLE

$

$

Not available

3

Toro 109966

BEARING-BALL

$17.99

$

In Stock, Qty 11

0

4

Toro 110200

DISCONTINUED

$

$

Not available

5

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 20+

0

6

Toro 106068

SPACER-BLADE

$8.49

$

In Stock, Qty 5

0

7

Toro 3796

See Supercession: 302-16
(Superseded to 302-16)

$

$

Not available

8

Toro 109913

HOUSING SPINDLE

$

$

Not available

10

Toro 109984

DISCONTINUED

$

$

Not available

11

Toro 920087

See Supercession: 3253-8
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

12

Toro 9150894

See Supercession: 3220-6
(Superseded to 3220-6)

Note: "4" At end indicates free-running nut.DO NOT use Eslok or other type locking nut.

$1.49

$

In Stock, Qty 17

0

13

Toro 109078

ASSY BLADE KIT

$

$

Not available

14

Toro 106067

See Supercession: 106067-03
(Superseded to 106067-03)

$16.99

$

In Stock, only 2 left!

0

15

Toro 920257

See Supercession: 9202574
(Superseded to 9202574)

$2.49

$

In Stock, Qty 20+

0

16

Toro 920258

SpeciaI Washer
(Superseded to 9202584)

$8.49

$

In Stock, only 2 left!

0

17

Toro 9150904

See Supercession: 3220-7
(Superseded to 3220-7)

Note: "4" At end indicates free-running nut.DO NOT use Eslok or other type locking nut.

$4.99

$

In Stock, Qty 20+

0

18

Toro 908032

See Supercession: 323-4
(Superseded to 323-4)

$4.49

$

In Stock, Qty 20+

0

20

Toro 106144

See Supercession: 93-1622
(Superseded to 93-1622)

$54.99

$

In Stock, Qty 5

0

21

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

22

Toro 908037

See Supercession: 323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

23

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

24

Toro 108196

V-BELT

$29.99

$

Usually ships in 3-6 days

0

25

Toro 108177

SPRING-TORSION

$20.99

$

Usually ships in 3-6 days

0

26

Toro 108176

DISCONTINUED

$

$

Not available

27

Toro 108782

DISCONTINUED

$

$

Not available

28

Toro 920010

WASHER

$

$

Not available

29

Toro 109996

DISCONTINUED

$

$

Not available

30

Toro 900063

See Supercession: 3231-2
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

31

Toro 104176

See Supercession: 104176-01
(Superseded to 104176-01)

$

$

Not available

32

Toro 106388

BEARING-INT SHAFT

$186.99

$

Usually ships in 3-6 days

0

33

Toro 936021

See Supercession: 32120-10
(Superseded to 32120-10)

$1.49

$

In Stock, Qty 20+

0

34

Toro 108786

PULLEY

$

$

Not available

35

Toro 109310

PULLEY-SPLIT

$102.99

$

Usually ships in 3-6 days

0

36

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, only 1 left!

0

37

Toro 909862

See Supercession: 3246-2
(Superseded to 3246-2)

$0.99

$

In Stock, Qty 10

0

38

Toro 926715

Bolt
(Superseded to 9267154)

$3.99

$

In Stock, Qty 6

0

39

Toro 109640

BELT-V MOWER

$

$

Not available
