05-38SL02 - Toro 38" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) Spindle Assembly Parts Diagram

38" Side-Discharge Mower Deck

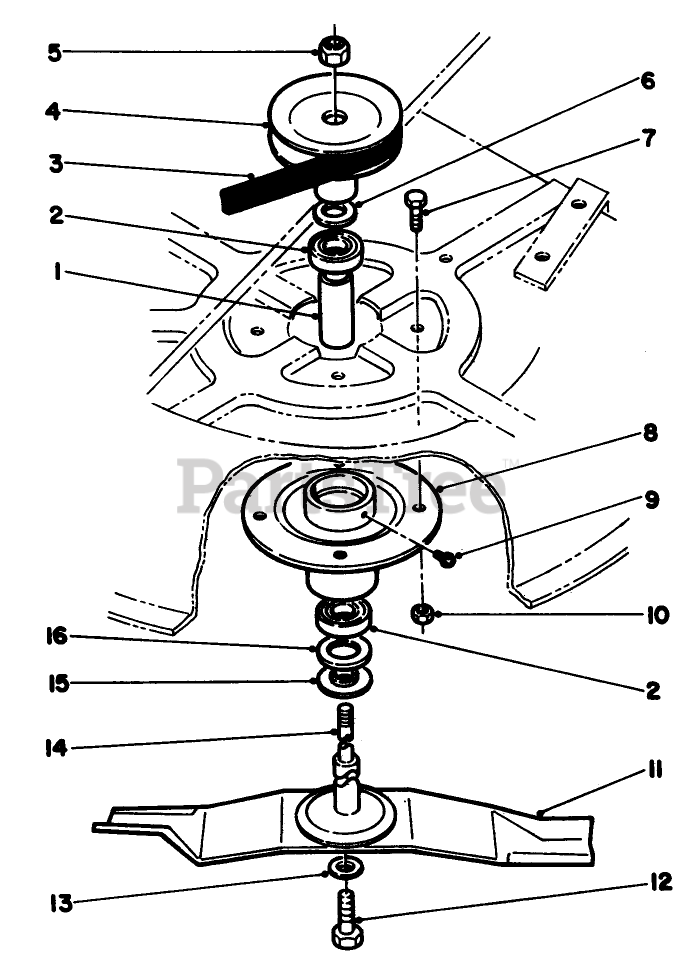

Spindle Assembly Parts Diagram

  • Title

1

Toro 79-2780

SPACER

$24.99

$

In Stock, only 1 left!

0

2

Toro 79-1090

See Supercession: 251-318
(Superseded to 251-318)

$21.99

$

In Stock, only 3 left!

0

3

Toro 121330

BELT-V

$148.99

$

Usually ships in 3-6 days

0

4

Toro 79-3810

PULLEY *R

$

$

Not available

5

Toro 915007

See Supercession: 3219-7
(Superseded to 3219-7)

$1.99

$

In Stock, Qty 20+

0

6

Toro 920216

See Supercession: 9202164
(Superseded to 9202164)

$

$

Not available

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 79-1050

See Supercession: 79-1050-03
(Superseded to 79-1050-03)

$

$

Not available

9

Toro 302-16

ZERK FITTING

$

$

Not available

10

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 57-4700

See Supercession: 57-4700-03
(Superseded to 57-4700-03)

$46.99

$

In Stock, only 2 left!

0

12

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

13

Toro 112843

WASHER

$3.99

$

In Stock, Qty 5

0

14

Toro 80-4350

SHAFT-SPINDLE

$96.99

$

In Stock, only 3 left!

0

15

Toro 80-4390

SPACER-HARDNED

$4.99

$

Usually ships in 3-6 days

0

16

Toro 80-4370

SHIELD-BEARING

$19.99

$

Usually ships in 3-6 days

0
