05-38SS02 - Toro 38" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) Cutting Unit Assembly Parts Diagram

38" Side-Discharge Mower Deck

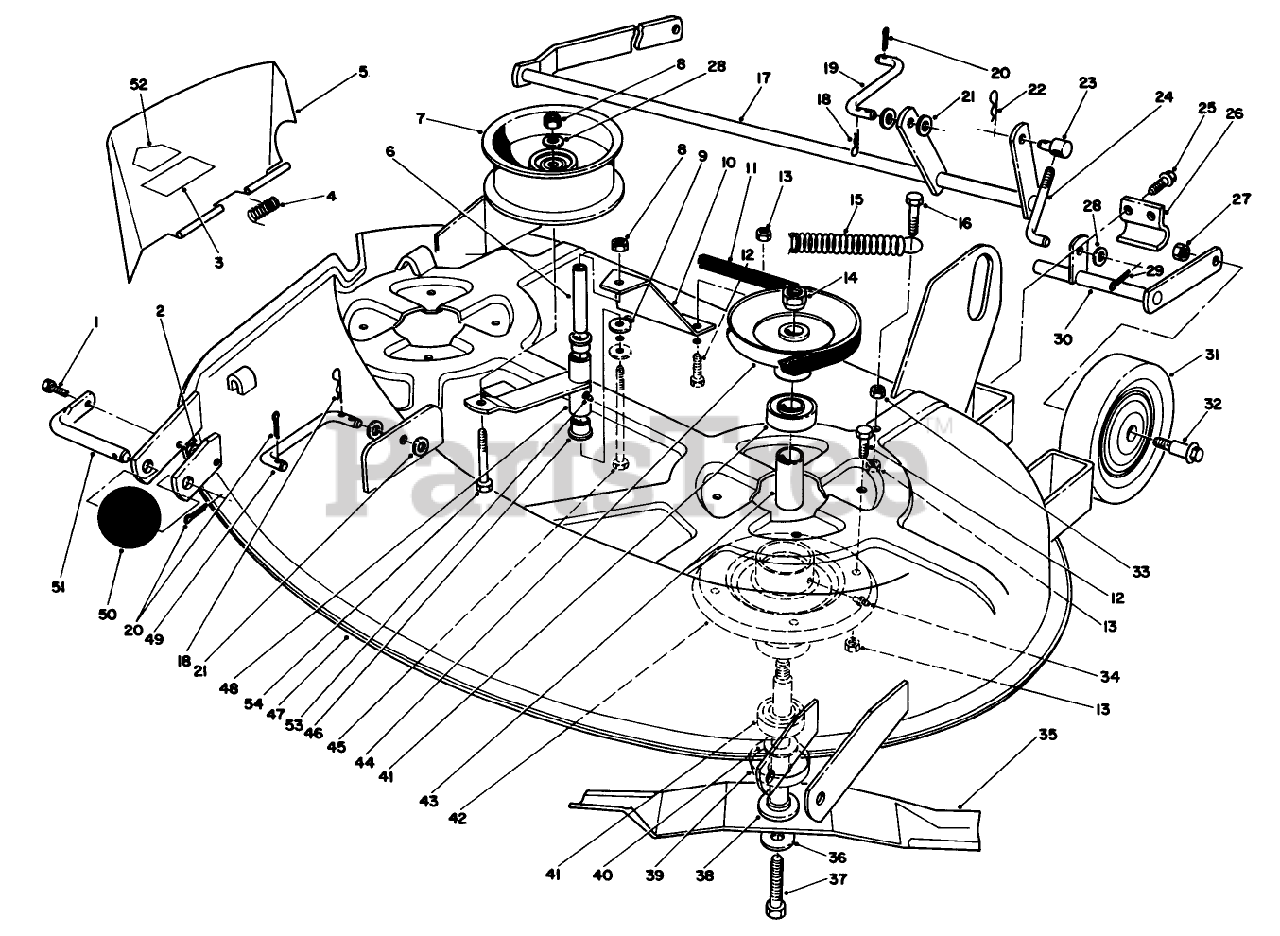

Cutting Unit Assembly Parts Diagram

  • Title

1

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, Qty 6

0

4

Toro 119691

SPRING-TORSION

$

$

Not available

5

Toro 119740

DISCONTINUED
(Superseded to 119740-01)

$

$

Not available

6

Toro 109950

SPACER

$

$

Not available

7

Toro 78-8250

See Supercession: 92-7082
(Superseded to 92-7082)

$149.99

$

In Stock, only 2 left!

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 2844

WASHER

$3.49

$

In Stock, Qty 20+

0

10

Toro 78-8091

DISCONTINUED
(Superseded to 78-8091-01)

$

$

Not available

11

Toro 79-5980

V-BELT

$53.99

$

In Stock, only 2 left!

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 915007

See Supercession: 3219-7
(Superseded to 3219-7)

$1.99

$

In Stock, Qty 20+

0

15

Toro 78-6210

SPRING-EXTENSION

$

$

Not available

16

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

17

Toro 78-8011

See Supercession: 78-8011-03
(Superseded to 78-8011-03)

$165.99

$

Usually ships in 3-6 days

0

18

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 7

0

19

Toro 78-8071

LINK-REAR

$64.99

$

Usually ships in 3-6 days

0

20

Toro 3272-21

PIN-COTTER

$3.99

$

In Stock, only 3 left!

0

21

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 5

0

23

Toro 110656

See Supercession: 101161
(Superseded to 101161)

$

$

Not available

24

Toro 121010

ROD-LIFT

$29.99

$

Usually ships in 3-6 days

0

25

Toro 926715

Bolt
(Superseded to 9267154)

$3.99

$

In Stock, Qty 6

0

26

Toro 78-6400

See Supercession: 78-6400-03
(Superseded to 78-6400-03)

$

$

Not available

27

Toro 32146-2

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

30

Toro 78-7991

See Supercession: 78-7991-01
(Superseded to 78-7991-01)

$

$

Not available

31

Toro 110506

WHEEL

$46.99

$

In Stock, Qty 15

0

32

Toro 5188

BOLT-SHOULDER

$6.99

$

In Stock, Qty 20+

0

33

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

34

Toro 302-16

ZERK FITTING

$

$

Not available

35

Toro 57-4700

See Supercession: 57-4700-03
(Superseded to 57-4700-03)

$46.99

$

In Stock, only 2 left!

0

36

Toro 112843

WASHER

$3.99

$

In Stock, Qty 5

0

37

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

38

Toro 80-4351

SHAFT-SPINDLE

$200.99

$

Usually ships in 3-6 days

0

39

Toro 80-4370

SHIELD-BEARING

$19.99

$

Usually ships in 3-6 days

0

40

Toro 80-4390

SPACER-HARDNED

$4.99

$

Usually ships in 3-6 days

0

41

Toro 79-1090

See Supercession: 251-318
(Superseded to 251-318)

$21.99

$

In Stock, only 3 left!

0

42

Toro 79-1050

See Supercession: 79-1050-03
(Superseded to 79-1050-03)

$

$

Not available

43

Toro 79-2780

SPACER

$24.99

$

In Stock, only 1 left!

0

44

Toro 78-6042

See Supercession: 92-7081
(Superseded to 92-7081)

$

$

Not available

45

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

46

Toro 109859

BUSHING

$19.99

$

Usually ships in 3-6 days

0

47

Toro 79-2170

DISCONTINUED
(Superseded to 92-8015)

$

$

Not available

48

Toro 78-3370

See Supercession: 78-3370-01
(Superseded to 78-3370-01)

$

$

Not available

49

Toro 78-6701

DISCONTINUED

$

$

Not available

50

Toro 29-4820

ROLLER

$19.99

$

In Stock, Qty 6

0

51

Toro 118960

See Supercession: 118960-03
(Superseded to 118960-03)

$50.99

$

In Stock, only 2 left!

0

52

Toro 54-9220

See Supercession: 93-1122
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 9

0

53

Toro 302-26

FITTING-GREASE

$7.99

$

Usually ships in 3-6 days

0

54

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
