05172400 - Gravely 3100 Series Hydro-Gear Transmission 05172400 - 3100 Series Transaxle Parts Diagram

3100 Series Hydro-Gear Transmission

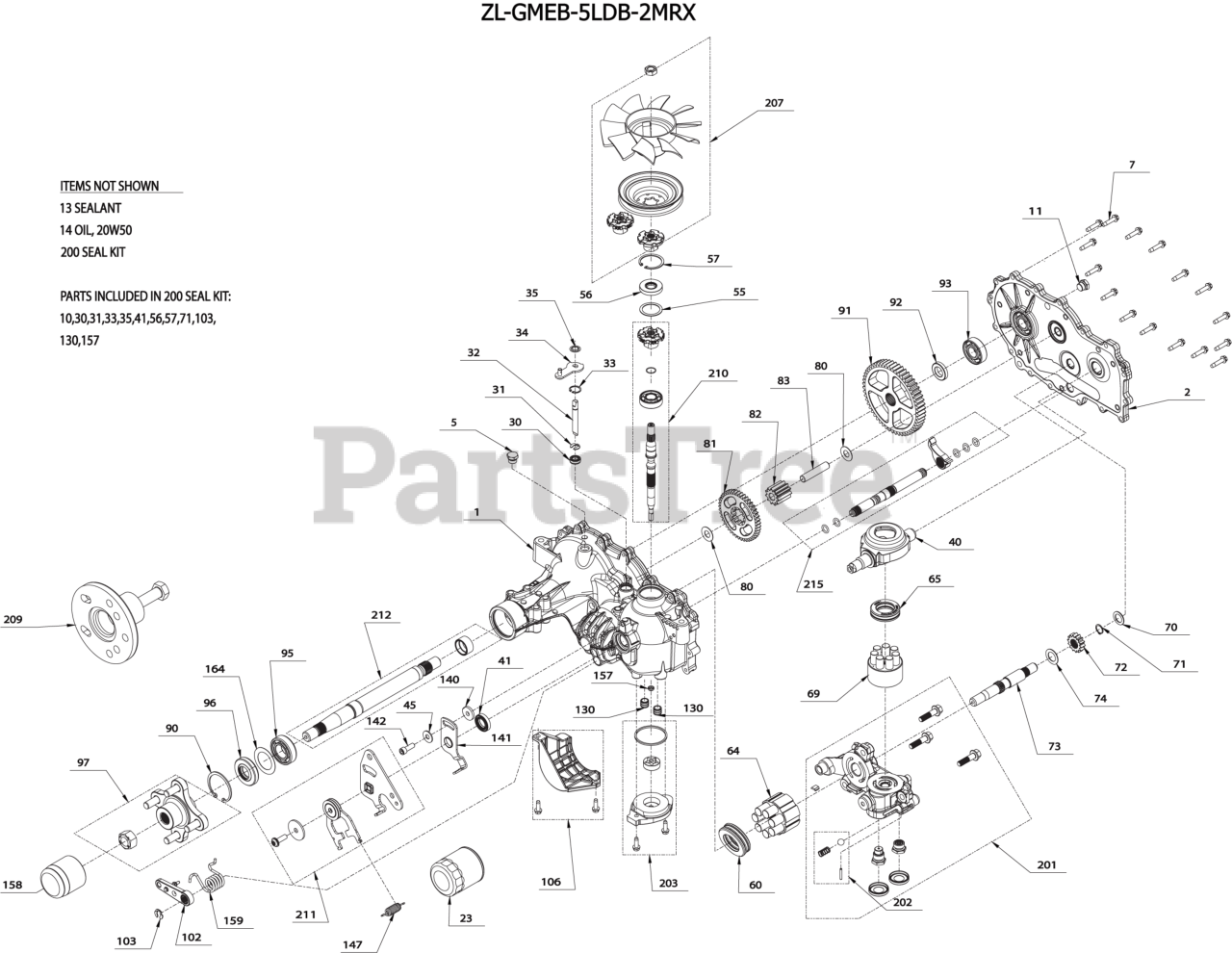

05172400 - 3100 Series Transaxle Parts Diagram

  • Title

1

Gravely 21500053

$233.99

$

Usually ships in 4-12 days

0

2

SIDE COVER RH

Note: Hydro-Gear Part 71572

$

$

Not available

5

Gravely 21500049

$5.49

$

In Stock, only 2 left!

0

7

Gravely 27105900

SCREW,HEX WASHER 1/4-20X1.125

$2.99

$

In Stock, only 1 left!

0

11

Plug External Vent

Note: Hydro-Gear Part 84730

$

$

Not available

13

Gravely 21543771

SEALANT TUBE 10.1OZ.

$103.99

$

Usually ships in 4-12 days

0

14

Gravely 00057100

FLUID, HYDRO 15W50 QT

$14.99

$

In Stock, Qty 12

0

23

Gravely 21544900

FILTER, HYDRO-GEAR 2800 TRANS
(Superseded to 21545100)

$42.99

$

Usually ships in 4-12 days

0

30

Gravely 21500013

Seal, lip .375 x 375 x 325

$5.49

$

In Stock, only 2 left!

0

31

Gravely 08622500

RING. RETAINING

$4.49

$

In Stock, Qty 12

0

32

ROD, BYPASS

Note: Hydro-Gear Part 52136

$

$

Not available

33

Gravely 21543846

RING, RET .750

$

$

Not available

34

Gravely 21544046

ARM, BYPASS

$12.99

$

Usually ships in 4-12 days

0

35

Gravely 21543848

RING, RTNG .

$4.49

$

Usually ships in 4-12 days

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

$73.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 18X32X7

$5.49

$

Usually ships in 4-12 days

0

45

Gravely 06400023

WASHER
(Superseded to 08611200)

$4.49

$

Usually ships in 4-12 days

0

55

Gravely 21543773

WASHER 1.23X1.56X.04

$2.99

$

In Stock, only 1 left!

0

56

Gravely 21543816

SEAL, LIP 17X40X7

$7.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RET 1.56 INT

$3.99

$

Usually ships in 4-12 days

0

60

Gravely 21548902

HG THRUST BEARING (51462)

$27.99

$

Usually ships in 4-12 days

0

64

Gravely 21548904

HG 16CC CYLINDER BLOCK (71579)

$103.99

$

In Stock, only 2 left!

0

65

Gravely 08609100

BEARING. THRUST 30 X 52 X 13

$16.99

$

Usually ships in 4-12 days

0

69

Gravely 21543921

ASSY, BLOCK 7 PISTON

$137.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

WASHER .63X1.0X.05

$3.99

$

Usually ships in 4-12 days

0

71

Gravely 21543704

RING, RET 62 EXT

$2.99

$

Usually ships in 4-12 days

0

72

GEAR 14T STEEL

Note: Hydro-Gear Part 52341

$

$

Not available

73

SHAFT, MOTOR

Note: Hydro-Gear Part 52150

$

$

Not available

74

Gravely 21543788

WASHER .71 X 1.16 X .04

$

$

Not available

80

Gravely 21543724

WASHER .5X1.0X.032

$

$

Not available

81

GEAR 45 TOOTH

Note: Hydro-Gear Part 52110

$

$

Not available

82

GEAR 11 TOOTH STEEL

Note: Hydro-Gear Part 52586

$

$

Not available

83

Gravely 21543793

JACK SHAFT (PIN)

$

$

Not available

90

Gravely 08616500

RING, RETAINING

$3.99

$

Usually ships in 4-12 days

0

91

GEAR 54 TOOTH

Note: Hydro-Gear Part 52108

$

$

Not available

92

SPACER

Note: Hydro-Gear Part 53336

$

$

Not available

93

Gravely 21500082

KIT, BEARING

$23.99

$

In Stock, only 2 left!

0

95

Gravely 08614000

BEARING, BALL 25.4 X 52 X 15

$15.99

$

In Stock, only 2 left!

0

96

Gravely 08614300

SEAL, LIP

$7.99

$

In Stock, only 4 left!

0

97

Gravely 21544061

KIT, HUB 4 BOLT

$71.99

$

Usually ships in 4-12 days

0

102

Gravely 21544037

BRAKE ARM HG 71957

$15.99

$

Usually ships in 4-12 days

0

103

Gravely 21544007

CLIP,BRAKE ARM HYDROGEAR 52027

$2.99

$

Usually ships in 4-12 days

0

106

KIT FILTER GUARD

Note: Hydro-Gear Part 73041

$

$

Not available

130

TUBE CHARGE TRIPLE ORING

Note: Hydro-Gear Part 54501

$

$

Not available

140

Gravely 21543870

SPACER

$

$

Not available

141

Gravely 21543866

ARM, NEUTRAL RIGHT

$11.99

$

Usually ships in 4-12 days

0

142

Gravely 21543843

SHCS 5/16-24X1 PATCH

$

$

Not available

147

Gravely 21544001

SPRING, HYDROGEAR P/N 51833

$15.99

$

Usually ships in 4-12 days

0

157

KIT GEROTOR SEAL

Note: Hydro-Gear Part 72291

$

$

Not available

158

Gravely 21500038

CAP, AXLE

$8.99

$

Usually ships in 4-12 days

0

159

Gravely 21544052

SPRING, TORSION CCW

$11.99

$

Usually ships in 4-12 days

0

164

WASHER

Note: Hydro-Gear Part 73514

$

$

Not available

200

Gravely 21543999

KIT, SEAL

$54.99

$

Usually ships in 4-12 days

0

201

Gravely 21500075

KIT, CENTER SECTION RH, CHARGE

$201.99

$

Usually ships in 4-12 days

0

202

KIT CHARGE RELIEF

Note: Hydro-Gear Part 71436

$

$

Not available

203

Gravely 21544060

KIT, CHARGE

$77.99

$

In Stock, only 2 left!

0

207

Gravely 21500024

KIT, FAN / PULLEY

$36.99

$

Usually ships in 4-12 days

0

209

Gravely 21544008

HUB PULLER 5 BLT

Note: Service Tool

$497.99

$

Usually ships in 4-12 days

0

210

KIT INPUT SHAFT

Note: Hydro-Gear Part 73047

$

$

Not available

211

KIT RTN BIDIRECTIONAL

Note: Hydro-Gear Part 71588

$

$

Not available

212

KIT SHAFT AXLE

Note: Hydro-Gear Part 71569

$

$

Not available

215

KIT OUTBOARD RH

Note: Hydro-Gear Part 72753

$

$

Not available
