05189200 - Gravely 3400 Series Hydro-Gear Transmission Transmission, RH - 05189200 Parts Diagram

3400 Series Hydro-Gear Transmission

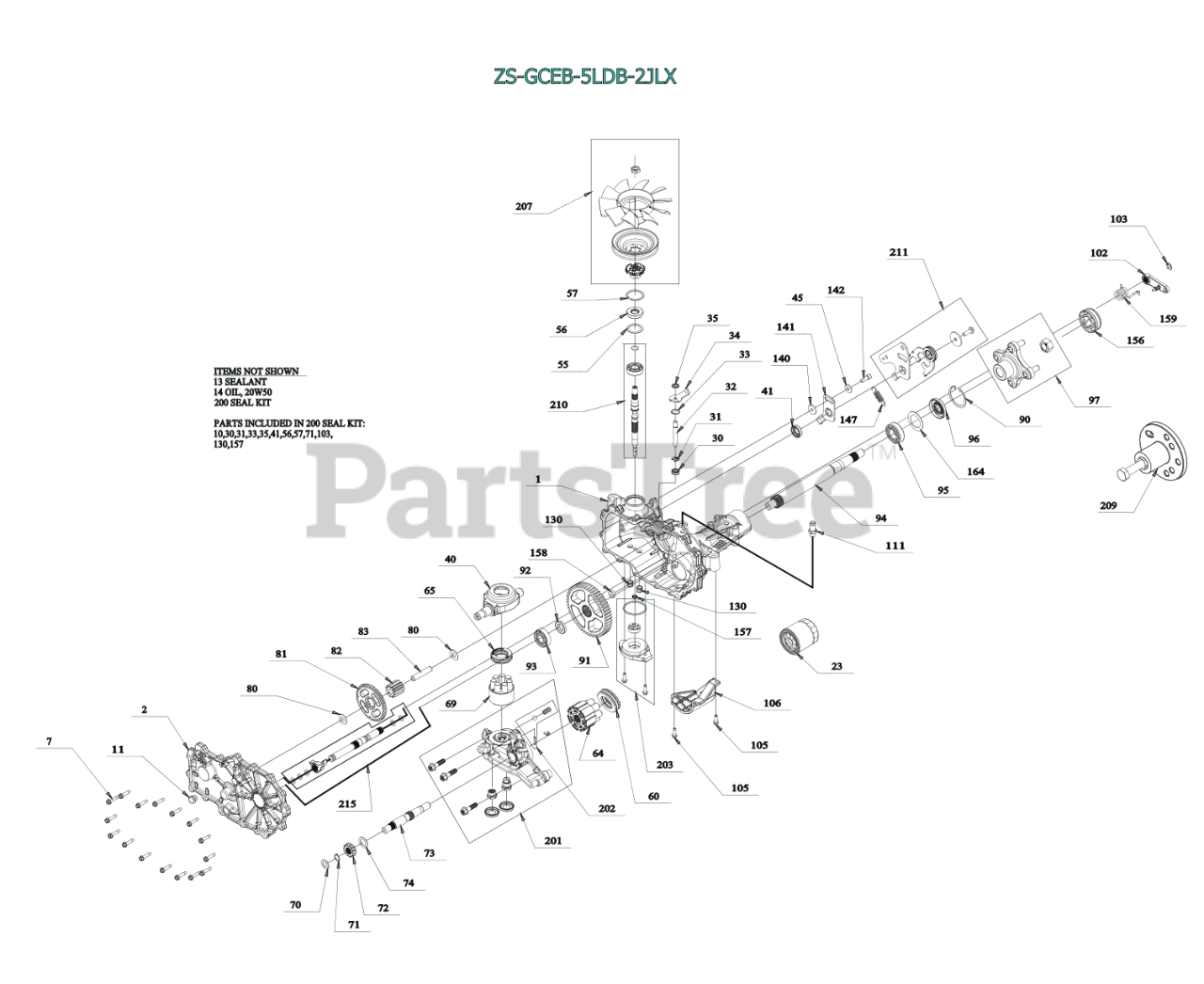

Transmission, RH - 05189200 Parts Diagram

  • Title

1

KIT, MAIN HOUSING, RH, CHARGE, CONTROL

Note: Hydro Gear 72025

$

$

Not available

2

KIT, SIDE COVER RH

Note: Hydro Gear 71990

$

$

Not available

7

Gravely 27105900

SCREW,HEX WASHER 1/4-20X1.125

$2.99

$

In Stock, only 1 left!

0

11

Gravely 21500049

$5.49

$

In Stock, only 2 left!

0

23

Gravely 21545100

OIL FILTER, TRANSMISSION

$42.99

$

Usually ships in 4-12 days

0

30

Gravely 21543845

SEAL, LIP .375X.75X.25

$9.99

$

Usually ships in 4-12 days

0

31

Gravely 08622500

RING. RETAINING

$4.49

$

In Stock, Qty 12

0

32

ROD, BYPASS .375 X 2.88

Note: Hydro Gear 52136

$

$

Not available

33

Gravely 21543846

RING, RET .750

$

$

Not available

34

Gravely 21544046

ARM, BYPASS

$12.99

$

Usually ships in 4-12 days

0

35

Gravely 21543848

RING, RTNG .

$4.49

$

Usually ships in 4-12 days

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

$73.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 18X32X7

$5.49

$

Usually ships in 4-12 days

0

45

Gravely 06400023

WASHER
(Superseded to 08611200)

$4.49

$

Usually ships in 4-12 days

0

55

Gravely 21543773

WASHER 1.23X1.56X.04

$2.99

$

In Stock, only 1 left!

0

56

Gravely 21543816

SEAL, LIP 17X40X7

$7.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RET 1.56 INT

$3.99

$

Usually ships in 4-12 days

0

60

Gravely 21548902

HG THRUST BEARING (51462)

$27.99

$

Usually ships in 4-12 days

0

64

Gravely 21548904

HG 16CC CYLINDER BLOCK (71579)

$103.99

$

In Stock, only 2 left!

0

65

Gravely 21548903

HG THRUST BLOCK (53502)

$

$

Not available

69

Gravely 21548905

HG SEVEN PISTON BLOCK (71971)

$81.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

WASHER .63X1.0X.05

$3.99

$

Usually ships in 4-12 days

0

71

Gravely 21543704

RING, RET 62 EXT

$2.99

$

Usually ships in 4-12 days

0

72

GEAR, 14T (STEEL)

Note: Hydro Gear 52341

$

$

Not available

73

SHAFT, MOTOR

Note: Hydro Gear 52150

$

$

Not available

74

Gravely 21543788

WASHER .71 X 1.16 X .04

$

$

Not available

80

Gravely 21543724

WASHER .5X1.0X.032

$

$

Not available

81

GEAR, 45T

Note: Hydro Gear 52110

$

$

Not available

82

GEAR, 11T (STEEL)

Note: Hydro Gear 52586

$

$

Not available

83

Gravely 21543793

JACK SHAFT (PIN)

$

$

Not available

90

Gravely 08616500

RING, RETAINING

$3.99

$

Usually ships in 4-12 days

0

91

Gravely 21500035

GEAR, 54T

$67.99

$

Usually ships in 4-12 days

0

92

SPACER, .750 X 1.320 X .257

Note: Hydro Gear 53336

$

$

Not available

93

Gravely 21500082

KIT, BEARING

$23.99

$

In Stock, only 2 left!

0

94

Gravely 21500040

GEAR, 54T

$149.99

$

In Stock, only 1 left!

0

95

Gravely 08614000

BEARING, BALL 25.4 X 52 X 15

$15.99

$

In Stock, only 2 left!

0

96

Gravely 08614300

SEAL, LIP

$7.99

$

In Stock, only 4 left!

0

97

Gravely 21500051

KIT, HUB 4 BOLT

$59.99

$

Usually ships in 4-12 days

0

102

Gravely 21544037

BRAKE ARM HG 71957

$15.99

$

Usually ships in 4-12 days

0

103

Gravely 21544007

CLIP,BRAKE ARM HYDROGEAR 52027

$2.99

$

Usually ships in 4-12 days

0

105

Gravely 21543759

HFHCS 1/4-20X.75

$2.99

$

Usually ships in 4-12 days

0

106

Gravely 21544054

GUARD, FILTER, RH

$15.99

$

Usually ships in 4-12 days

0

111

Gravely 21544058

KIT, FITTING 1/2 BEADED 9/16

$33.99

$

Usually ships in 4-12 days

0

130

TUBE, CHARGE TRIPLE O - RING

Note: Hydro Gear 54501

$

$

Not available

140

Gravely 21543870

SPACER

$

$

Not available

141

Gravely 21543866

ARM, NEUTRAL RIGHT

$11.99

$

Usually ships in 4-12 days

0

142

Gravely 21543843

SHCS 5/16-24X1 PATCH

$

$

Not available

147

Gravely 21544001

SPRING, HYDROGEAR P/N 51833

$15.99

$

Usually ships in 4-12 days

0

156

Gravely 21500034

CAP, AXLE

$6.49

$

Usually ships in 4-12 days

0

157

KIT, GEROTOR SEAL

Note: Hydro Gear 72291

$

$

Not available

158

Gravely 21543799

MAGNET, RING

$2.99

$

Usually ships in 4-12 days

0

159

Gravely 21500036

SPRING, TORSION, CW

$11.99

$

Usually ships in 4-12 days

0

164

WASHER, 1.355 X 2.035 X .021 FLAT

Note: Hydro Gear 53514

$

$

Not available

200

Gravely 21544034

HG SEAL KIT (71976)

$52.99

$

Usually ships in 4-12 days

0

201

KIT, CENTER SECTION, RH CHARGE

Note: Hydro Gear 72502

$

$

Not available

202

KIT, CHARGE RELIEF

Note: Hydro Gear 71436

$

$

Not available

203

Gravely 21544071

KIT, CHARGE PUMP

$90.99

$

Usually ships in 4-12 days

0

207

Gravely 21544079

KIT, FAN/PULLEY

$56.99

$

In Stock, only 3 left!

0

209

Gravely 21544008

HUB PULLER 5 BLT

$497.99

$

Usually ships in 4-12 days

0

210

Gravely 21544039

INPUT SHAFT HG 71978

$

$

Not available

211

KIT, RTN BIDIRECTIONAL

Note: Hydro Gear 71588

$

$

Not available

215

KIT, OUTBOARD, RH ROT A / LH ROT B

Note: Hydro Gear 72753

$

$

Not available
