06-42SS01 - Toro 42" Snow Thrower Attachment (SN: 020000001 - 029999999) (1992) Auger Assembly Parts Diagram

42" Snow Thrower Attachment

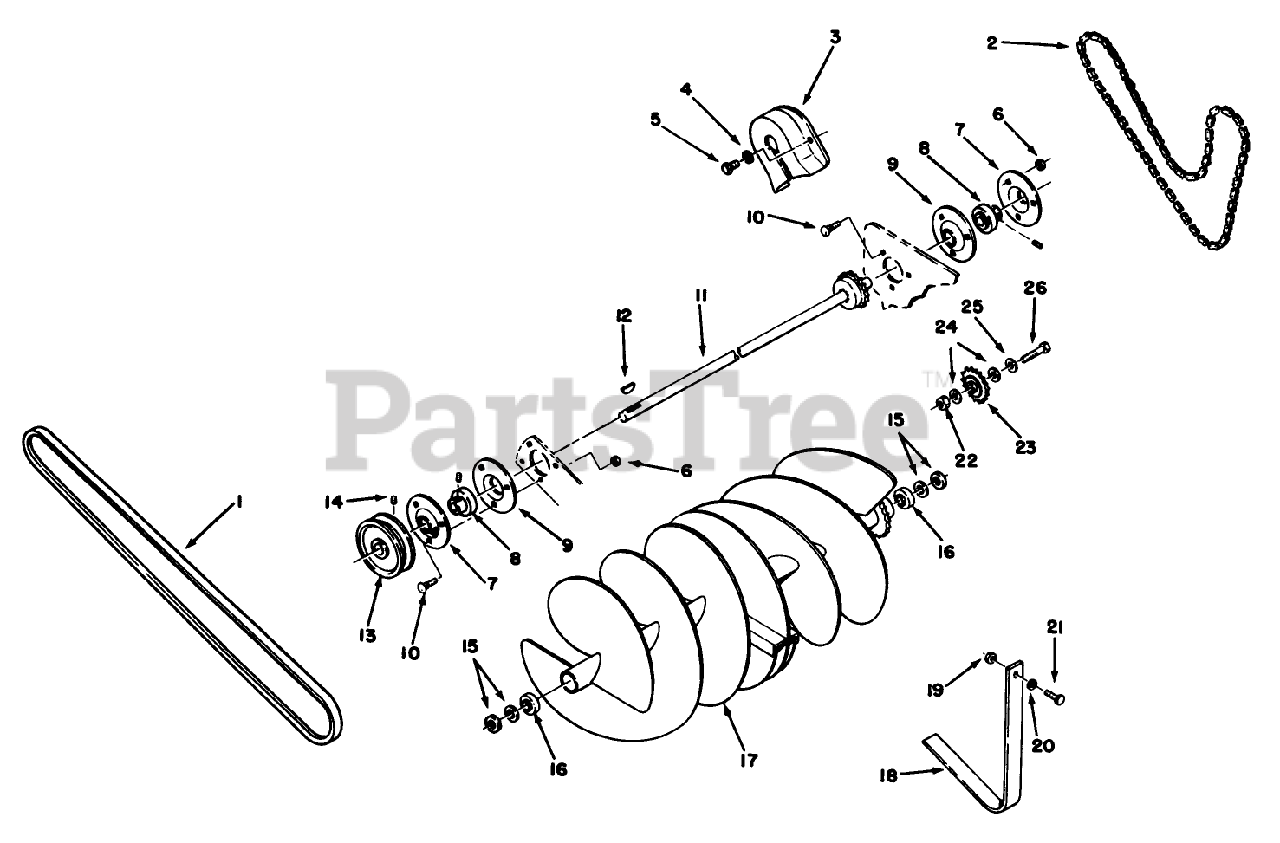

Auger Assembly Parts Diagram

  • Title

1

Toro 78-6240

See Supercession: 92-6991
(Superseded to 92-6991)

$126.99

$

In Stock, only 2 left!

0

2

Toro 115165

CHAIN-64 PITCHES

$

$

Not available

3

Toro 79-4000

GUARD-CHAIN

$

$

Not available

4

Toro 3456-22

Washer

$

$

Currently unavailable

5

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

6

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 110567

FLANGE-ZERK RELUBE

$27.99

$

In Stock, only 2 left!

0

8

Toro 110569

BEARING AND COLLAR

$125.99

$

In Stock, only 1 left!

0

9

Toro 110568

FLANGE

$21.99

$

In Stock, only 2 left!

0

10

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

11

Toro 79-4840

See Supercession: 79-4840-01
(Superseded to 79-4840-01)

$566.99

$

Usually ships in 3-6 days

0

12

Key-Woodruff

$

$

Not available

13

Toro 113356

PULLEY

$113.99

$

Usually ships in 3-6 days

0

14

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, Qty 5

0

15

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

16

Toro 101480

BEARING-BALL

$64.99

$

In Stock, only 3 left!

0

17

Toro 4467

DISCONTINUED
(Superseded to 105-1478)

$

$

Not available

18

Toro 109219

See Supercession: 93-1619-01
(Superseded to 93-1619-01)

$46.99

$

Usually ships in 3-6 days

0

19

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

20

Toro 3256-63

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

21

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 2174

See Supercession: 93-1614
(Superseded to 93-1614)

$

$

Not available

24

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 6417

SPACER

$

$

Not available

26

Toro 325-8

SCREW-HH

$5.99

$

In Stock, only 3 left!

0
