06-42ST07 - Toro 42" Snow Thrower Attachment (SN: 020000001 - 029999999) (1992) Control Chute Assembly Parts Diagram

42" Snow Thrower Attachment

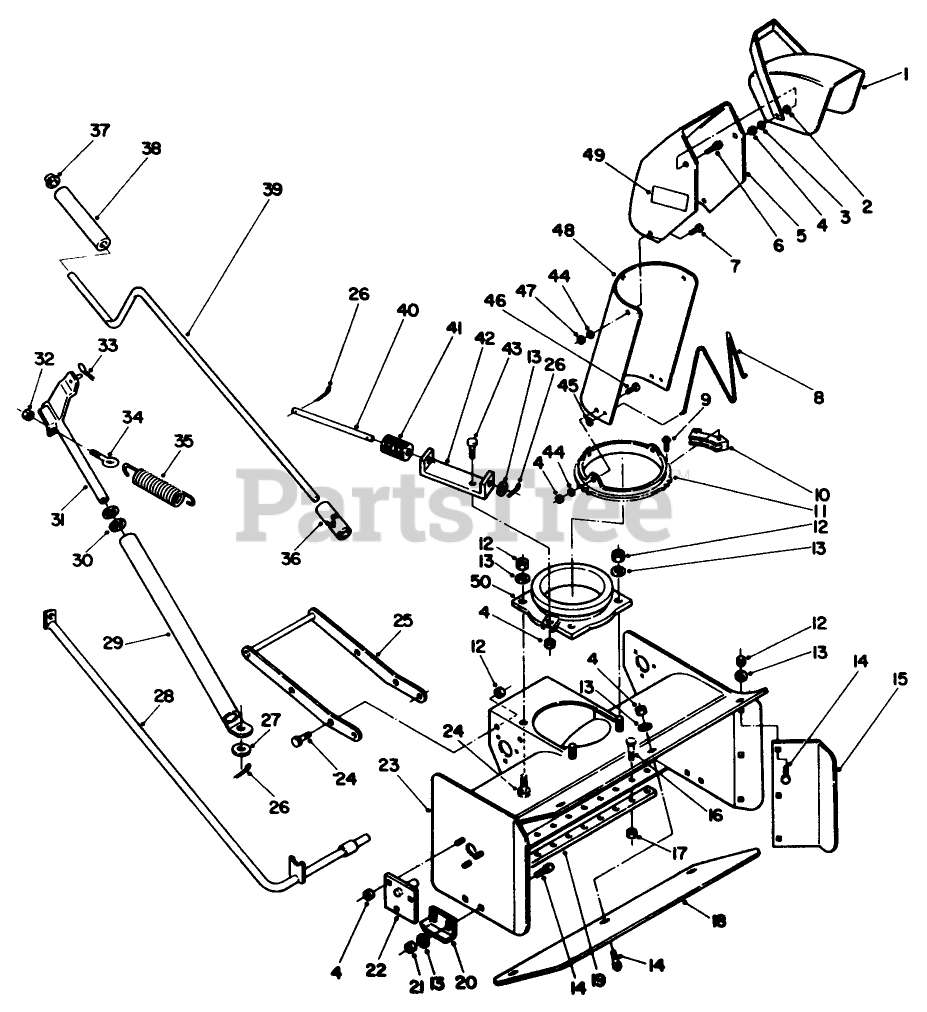

Control Chute Assembly Parts Diagram

  • Title

1

Toro 11-9346

Deflector

$

$

Currently unavailable

2

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

3

Toro 3290-340

WASHER-BELLEVILLE

$8.99

$

In Stock, only 4 left!

0

4

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 56-2600

See Supercession: 92-6335-01
(Superseded to 92-6335-01)

$248.99

$

Usually ships in 3-6 days

0

6

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

7

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

8

Toro 12-2040

WIRE-CHUTE

$

$

Not available

9

Toro 27-0220

SCREW-SPECIAL

$8.49

$

In Stock, only 2 left!

0

10

Toro 25-5450

RETAINER-CHUTE

$42.99

$

Usually ships in 3-6 days

0

11

Toro 78-0160

See Supercession: 78-0160-01
(Superseded to 78-0160-01)

$

$

Not available

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 900063

See Supercession: 3231-2
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

15

Toro 103552

See Supercession: 93-1617-01
(Superseded to 93-1617-01)

$

$

Not available

16

Toro 3229-25

See Supercession: 3229-1
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 7495

See Supercession: 93-1616-01
(Superseded to 93-1616-01)

$

$

Not available

19

Toro 114042

See Supercession: 79-6170-03
(Superseded to 79-6170-03)

$111.99

$

Usually ships in 3-6 days

0

20

Toro 111491

See Supercession: 93-1620-01
(Superseded to 93-1620-01)

$56.99

$

In Stock, only 1 left!

0

21

Toro 3296-24

NUT-HEX

$5.49

$

In Stock, Qty 20+

0

22

Toro 109201

See Supercession: 93-1618-01
(Superseded to 93-1618-01)

$56.99

$

In Stock, only 2 left!

0

23

Toro 78-0240

See Supercession: 92-7299
(Superseded to 92-7299)

$

$

Not available

24

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

25

Toro 104604

See Supercession: 104604-01
(Superseded to 104604-01)

$

$

Not available

26

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, only 4 left!

0

27

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

28

Toro 78-0200

DISCONTINUED
(Superseded to 78-0200-01)

$

$

Not available

29

Toro 81650

SNOW THROWER COM PKG

$

$

Not available

30

Toro 920015

See Supercession: 3256-28
(Superseded to 3256-28)

$3.99

$

In Stock, Qty 20+

0

31

Toro 101461

See Supercession: 101461-03
(Superseded to 101461-03)

$

$

Not available

32

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

33

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

34

Toro 100653

EYEBOLT

$

$

Not available

35

Toro 4629

SPRING

$

$

Not available

36

Toro 78-0230

See Supercession: 94-2686
(Superseded to 94-2686)

$

$

Not available

37

Toro 3290-320

NUT-PUSH

$1.99

$

In Stock, only 2 left!

0

38

Toro 40-8230

GRIP-CONTROL, CHUTE

$18.99

$

Usually ships in 3-6 days

0

39

Toro 51-2650

ROD-CHUTE CONTROL

$228.99

$

Usually ships in 3-6 days

0

40

Toro 78-7430

ROD

$

$

Not available

41

Toro 8-8600

GEAR-WORM, CHUTE

$151.99

$

Usually ships in 3-6 days

0

42

Toro 79-3770

See Supercession: 79-3770-01
(Superseded to 79-3770-01)

$54.99

$

Usually ships in 3-6 days

0

43

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

44

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

45

Toro 3290-326

NUT-PUSH

$

$

Not available

46

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

47

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

48

Toro 26-1110

See Supercession: 26-1110-01
(Superseded to 26-1110-01)

$194.99

$

Usually ships in 3-6 days

0

49

Toro 111190

DISCONTINUED

$

$

Not available

50

Toro 78-0330

DISCONTINUED
(Superseded to 78-0330-03)

$

$

Not available
