06-44SC01 - Toro 44" Two Stage Snow Thrower Attachment (SN: 020000001 - 029999999) (1992) Gear Case And Belt Assembly Parts Diagram

44" Two Stage Snow Thrower Attachment

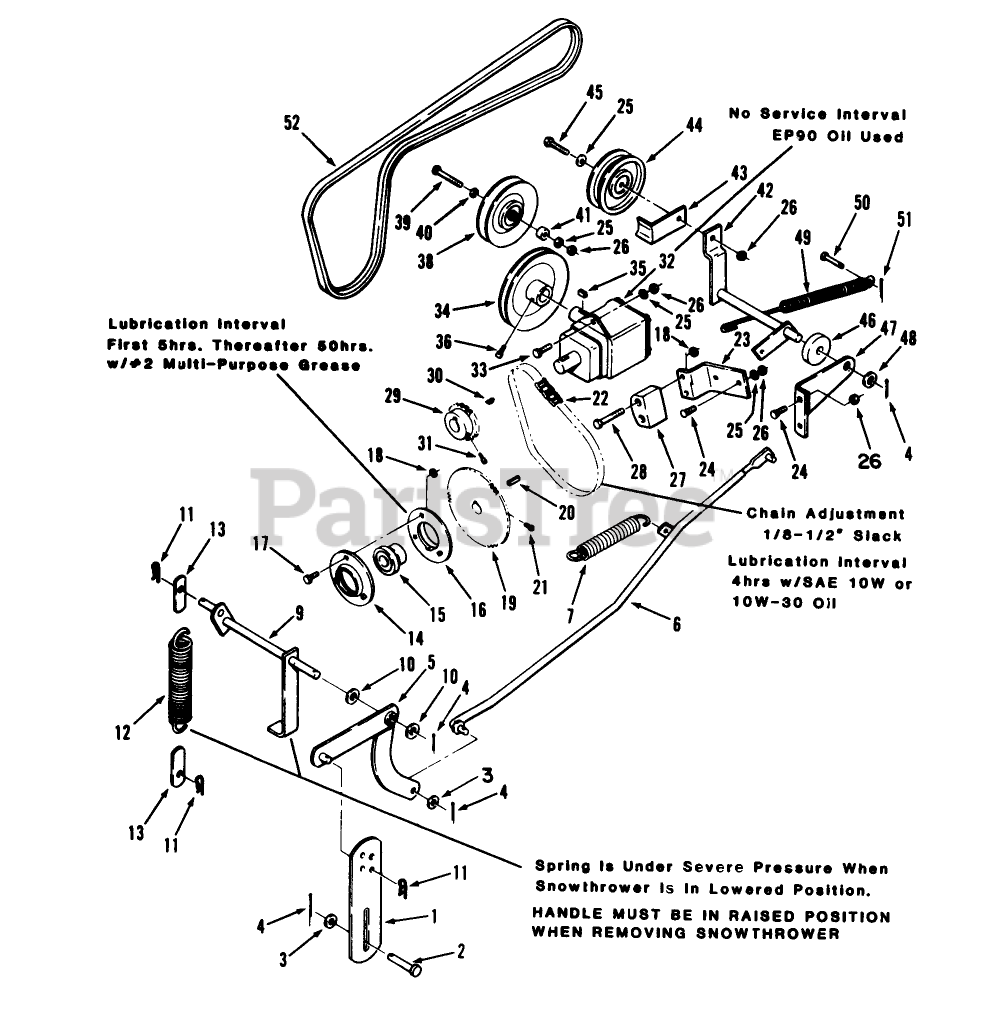

Gear Case And Belt Assembly Parts Diagram

  • Title

1

Toro 117219

LINK-LIFT *R

$

$

Not available

2

Toro 933001

CLEVIS PIN

$

$

Not available

3

Toro 920011

See Supercession: 3256-26
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

4

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

5

Toro 117543

DISCONTINUED

$

$

Not available

6

Toro 117556

DISCONTINUED

$

$

Not available

7

Toro 110614

DISCONTINUED

$

$

Not available

9

Toro 116906

DISCONTINUED
(Superseded to 116906-01)

$

$

Not available

10

Toro 920262

See Supercession: 9202624
(Superseded to 9202624)

$9.49

$

Usually ships in 3-6 days

0

11

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

12

Toro 4629

SPRING

$

$

Not available

13

Toro 117539

See Supercession: 117539-01
(Superseded to 117539-01)

$20.99

$

Usually ships in 3-6 days

0

14

Toro 110568

FLANGE

$21.99

$

In Stock, only 2 left!

0

15

Toro 110569

BEARING AND COLLAR

$125.99

$

In Stock, only 1 left!

0

16

Toro 119020

FLANGE-RELUBE

$26.99

$

Usually ships in 3-6 days

0

17

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

18

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 116919

SPROCKET-33T

$350.99

$

Usually ships in 3-6 days

0

20

Toro 6366

KEY

$5.99

$

Usually ships in 3-6 days

0

21

Toro 909544

See Supercession: 3242-6
(Superseded to 3242-6)

$4.99

$

Usually ships in 3-6 days

0

22

Toro 117447

CHAIN

$

$

Not available

23

Toro 117517

DISCONTINUED

$

$

Not available

24

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

27

Toro 108959

See Supercession: 95-7699
(Superseded to 95-7699)

$126.99

$

In Stock, only 3 left!

0

28

Toro 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

29

Toro 117338

See Supercession: 117338-03
(Superseded to 117338-03)

$221.99

$

Usually ships in 3-6 days

0

30

Toro 937221

See Supercession: 3257-17
(Superseded to 3257-17)

$

$

Not available

31

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

32

Toro 116938

DISCONTINUED

$

$

Not available

33

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

34

Toro 117558

See Supercession: 92-5769
(Superseded to 92-5769)

$121.99

$

Usually ships in 3-6 days

0

35

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, only 1 left!

0

36

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, Qty 5

0

38

Toro 115118

See Supercession: 92-7099
(Superseded to 92-7099)

$75.99

$

In Stock, only 4 left!

0

39

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Toro 2844

WASHER

$3.49

$

In Stock, Qty 20+

0

41

Toro 106887

SPACER

$

$

Not available

42

Toro 117546

DISCONTINUED

$

$

Not available

43

Toro 7450

See Supercession: 7450-01
(Superseded to 7450-01)

$

$

Not available

44

Toro 116859

PULLEY-FLAT IDLER

$102.99

$

Usually ships in 3-6 days

0

45

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

46

Toro 117770

RUBBER WASHER

$

$

Not available

47

Toro 117544

BRACKET-PIVOT *R

$

$

Not available

48

Toro 920013

See Supercession: 3256-27
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 20+

0

49

Toro 117545

DISCONTINUED

$

$

Not available

50

Toro 932865

Pin-Clevis

$

$

Currently unavailable

51

Toro 932016

See Supercession: 3272-10
(Superseded to 3272-10)

$1.49

$

In Stock, only 4 left!

0

52

Toro 116332

V-BELT 64 .5EL

$63.99

$

In Stock, only 2 left!

0
