07-11BY01 - Toro 38" Easy Twin Rear Bagger (SN: 020000001 - 029999999) (1992) Bag Frame Assembly Parts Diagram

38" Easy Twin Rear Bagger

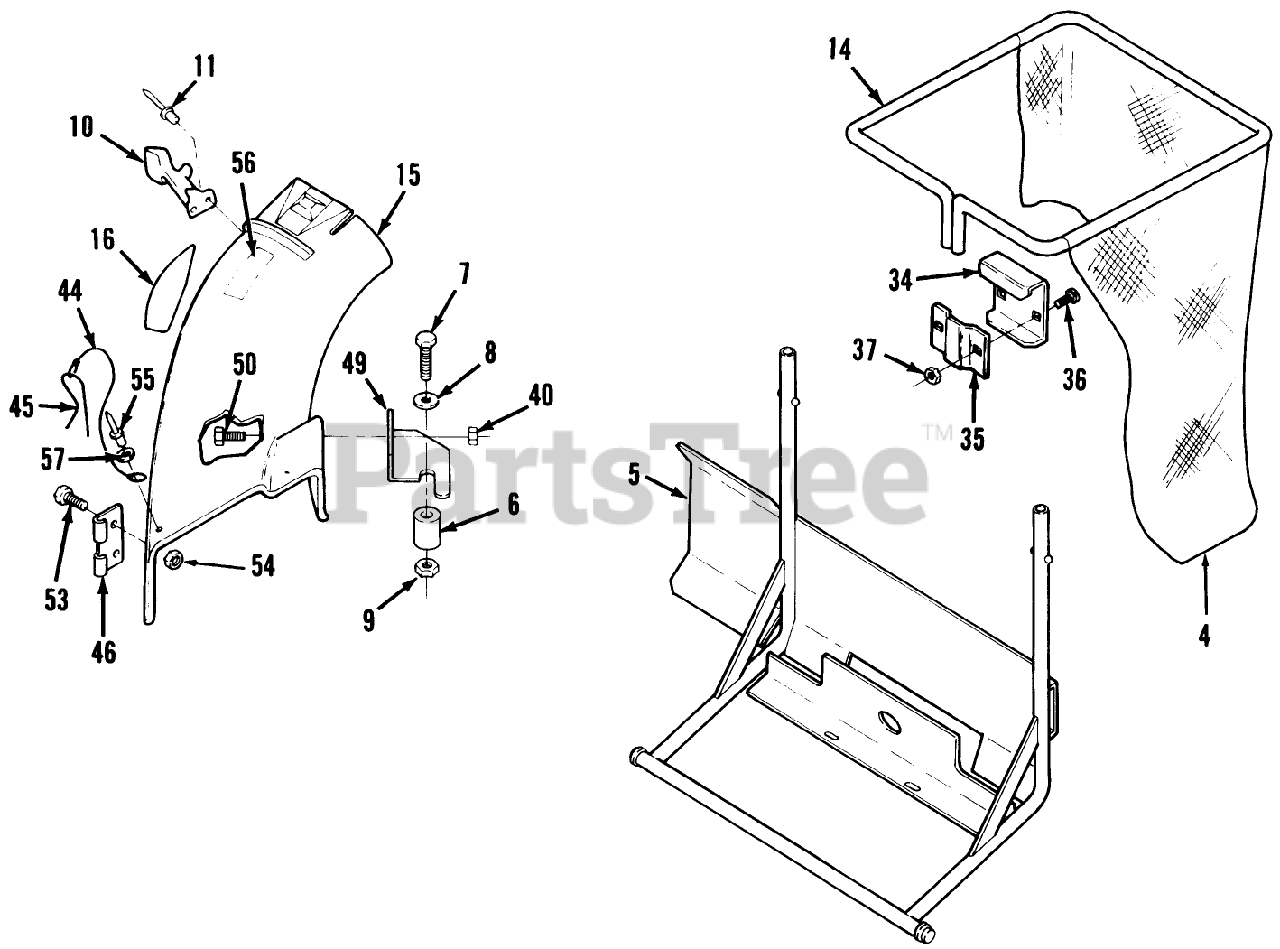

Bag Frame Assembly Parts Diagram

  • Title

4

Toro 114971

See Supercession: 93-1623
(Superseded to 93-1623)

$103.99

$

In Stock, only 2 left!

0

5

Toro 79-1860

WLDMT-BAGGER RODS *B

$

$

Not available

6

Toro 105474

SPACER

$

$

Not available

7

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 32564

Washer

$

$

Currently unavailable

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 57-4670

See Supercession: 117344
(Superseded to 117344)

$41.99

$

In Stock, only 4 left!

0

11

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 16

0

14

Toro 114972

See Supercession: 114972-03
(Superseded to 114972-03)

$124.99

$

In Stock, only 2 left!

0

15

Toro 120200

ASS'Y-ELBOW

$376.99

$

Usually ships in 3-6 days

0

16

Toro 549220

Decal-Danger

$

$

Currently unavailable

34

Toro 114973

See Supercession: 114973-03
(Superseded to 114973-03)

$28.99

$

In Stock, only 2 left!

0

35

Toro 114974

See Supercession: 114974-03
(Superseded to 114974-03)

$15.99

$

In Stock, only 2 left!

0

36

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

37

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

40

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

44

Toro 28-8070

LANYARD

$16.99

$

Usually ships in 3-6 days

0

45

Toro 28-8130

PIN-LOCKING, CHUTE

$13.99

$

Usually ships in 3-6 days

0

46

Toro 28-8050

BRACKET-MOUNTING, CHUTE

$27.99

$

Usually ships in 3-6 days

0

49

Toro 120312

LATCH-BAGGER ELBOW

$

$

Not available

50

Toro 911460

See Supercession: 9114604
(Superseded to 9114604)

$1.49

$

Usually ships in 3-6 days

0

53

Toro 911460

See Supercession: 9114604
(Superseded to 9114604)

$1.49

$

Usually ships in 3-6 days

0

54

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

55

Toro 3269-4

RIVET-POP

$1.49

$

Usually ships in 3-6 days

0

56

Toro 113914

DECAL-DANGER

$

$

Not available

57

Toro 920270

See Supercession: 9202704
(Superseded to 9202704)

$1.99

$

In Stock, Qty 11

0

Toro 807287

DISCONTINUED

$

$

Not available
