07-38BS01 - Toro 38" Easy Twin Rear Bagger (SN: 020000001 - 029999999) (1992) Bag Frame Assembly Parts Diagram

38" Easy Twin Rear Bagger

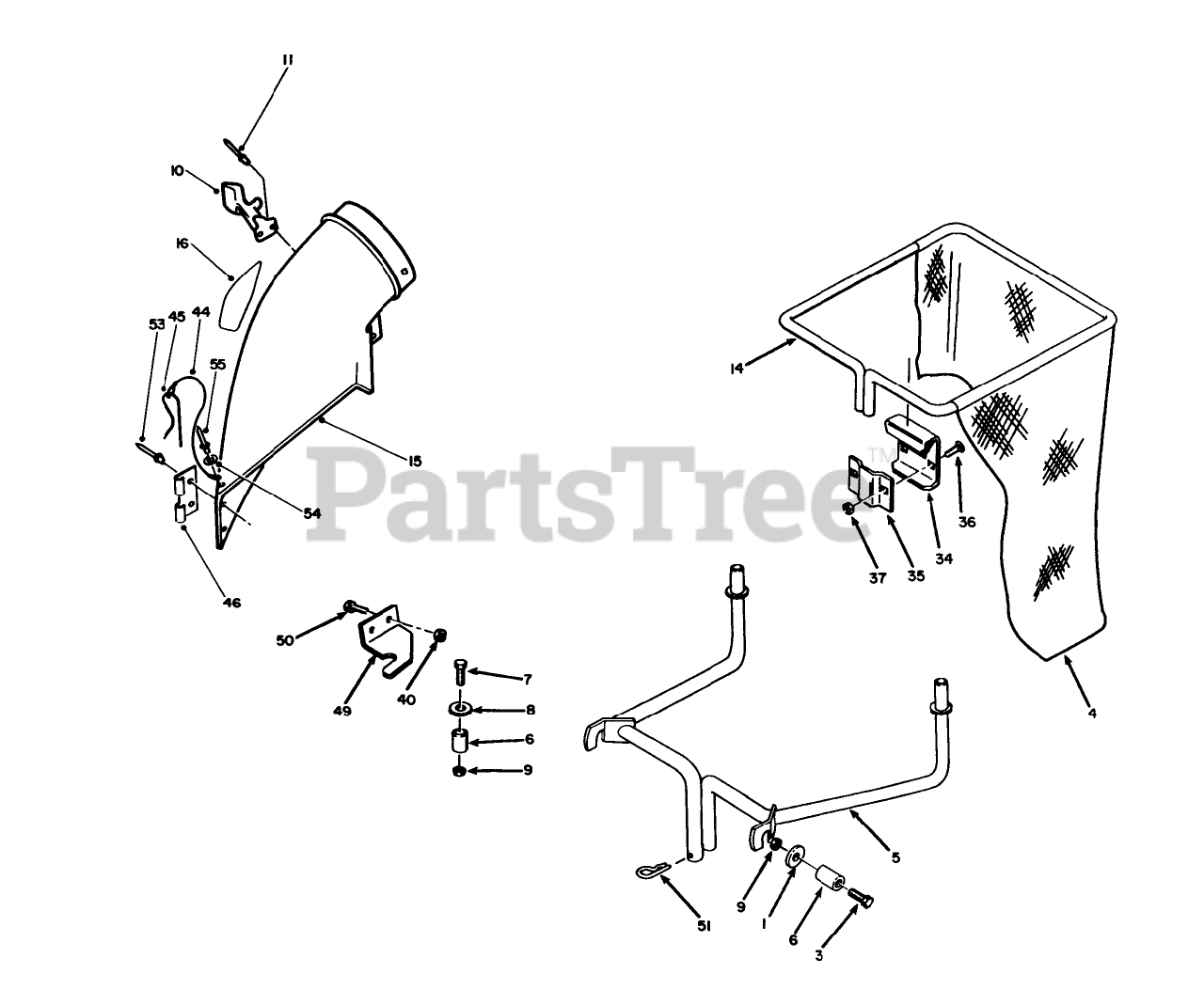

Bag Frame Assembly Parts Diagram

  • Title

1

Toro 920220

WASHER

$

$

Not available

2

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

3

Toro 908037

See Supercession: 323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

4

Toro 114971

See Supercession: 93-1623
(Superseded to 93-1623)

$103.99

$

In Stock, only 2 left!

0

5

Toro 78-8600

See Supercession: 78-8600-03
(Superseded to 78-8600-03)

$484.99

$

Usually ships in 3-6 days

0

6

Toro 105474

SPACER

$

$

Not available

7

Toro 908036

See Supercession: 323-8
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

8

Toro 920039

See Supercession: 3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

9

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

10

Toro 57-4670

See Supercession: 117344
(Superseded to 117344)

$41.99

$

In Stock, only 4 left!

0

11

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 16

0

14

Toro 114972

See Supercession: 114972-03
(Superseded to 114972-03)

$124.99

$

In Stock, only 2 left!

0

15

Toro 120210

ELBOW-BAGGER, 38 INCH

$322.99

$

Usually ships in 3-6 days

0

16

Toro 54-9220

See Supercession: 93-1122
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 9

0

21

Toro 920270

See Supercession: 9202704
(Superseded to 9202704)

$1.99

$

In Stock, Qty 11

0

34

Toro 114973

See Supercession: 114973-03
(Superseded to 114973-03)

$28.99

$

In Stock, only 2 left!

0

35

Toro 114974

See Supercession: 114974-03
(Superseded to 114974-03)

$15.99

$

In Stock, only 2 left!

0

36

Toro 900037

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

37

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

40

Toro 915661

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

44

Toro 28-8070

LANYARD

$16.99

$

Usually ships in 3-6 days

0

45

Toro 28-8130

PIN-LOCKING, CHUTE

$13.99

$

Usually ships in 3-6 days

0

46

Toro 28-8050

BRACKET-MOUNTING, CHUTE

$27.99

$

Usually ships in 3-6 days

0

49

Toro 120312

LATCH-BAGGER ELBOW

$

$

Not available

50

Toro 911460

See Supercession: 9114604
(Superseded to 9114604)

$1.49

$

Usually ships in 3-6 days

0

51

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 7

0

53

Toro 3290-412

RIVET-BLIND

$3.99

$

In Stock, Qty 17

0

54

Toro 3296-49

NUT-LOCK, NI

$15.99

$

In Stock, only 2 left!

0

55

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 7

0

Toro 807325

DISCONTINUED

$

$

Not available
