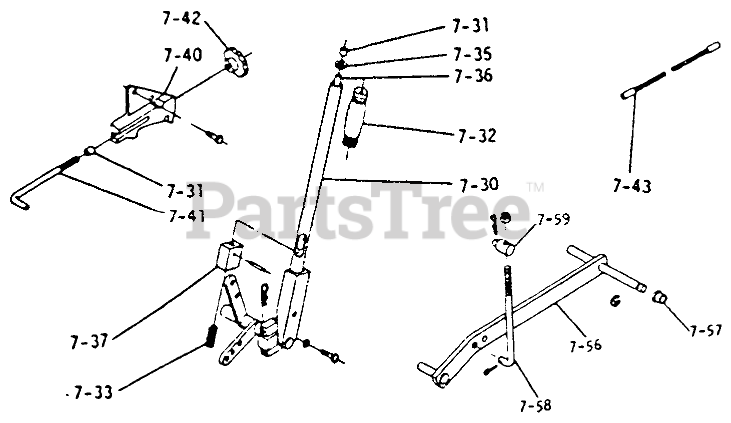

1-0370 - Toro Lawn Tractor, 8hp (1973) Lift Linkage Parts Diagram

Lawn Tractor, 8hp

Lift Linkage Parts Diagram

  • Title

7-30

Toro 5448

DISCONTINUED

$

$

Not available

Toro 933506-4

Hairpen

$

$

Currently unavailable

Toro 908015-4

Bolt Hex 5/16-18

$

$

Currently unavailable

Toro 920082-4

Lockwasher

$

$

Currently unavailable

7-31

Toro 3680

See Supercession: 105316
(Superseded to 105316)

$1.99

$

In Stock, Qty 20+

0

7-32

Toro 6542

HANDGRIP

$

$

Not available

7-33

Toro 3642

DISCONTINUED

$

$

Not available

7-35

Toro 3778

Guide-Plunger Rod

$

$

Currently unavailable

7-36

Toro 5449

DISCONTINUED

$

$

Not available

7-37

Toro 4438

DISCONTINUED

$

$

Not available

Toro 933168

Roll Pin
(Superseded to 32121-114)

$2.49

$

Usually ships in 3-6 days

0

7-38

Toro 102797

Plug

$

$

Currently unavailable

7-40

Toro 5640

DISCONTINUED

$

$

Not available

7-41

Toro 2179

DISCONTINUED

$

$

Not available

7-42

Toro 5280

KNOB-LIFT CONTROL

$

$

Not available

Toro 926715-4

Bolt, 3/8-16 x 3/4 S.T.

$

$

Currently unavailable

7-43

Toro 8277

DISCONTINUED

$

$

Not available

7-56

Toro 102373

See Supercession: 102373-01
(Superseded to 102373-01)

$209.99

$

Usually ships in 3-6 days

0

7-57

Toro 6229

BUSHING

$10.99

$

In Stock, only 3 left!

0

Toro 5701

See Supercession: 32120-47
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 10

0

7-58

Toro 102385

ROD-LIFT

$

$

Not available

7-59

Toro 6739

TRUNNION-LIFT

$27.99

$

In Stock, only 2 left!

0

Toro 933504-4

Hairpin

$

$

Currently unavailable

Toro 932008-4

Hairpin

$

$

Currently unavailable

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable
