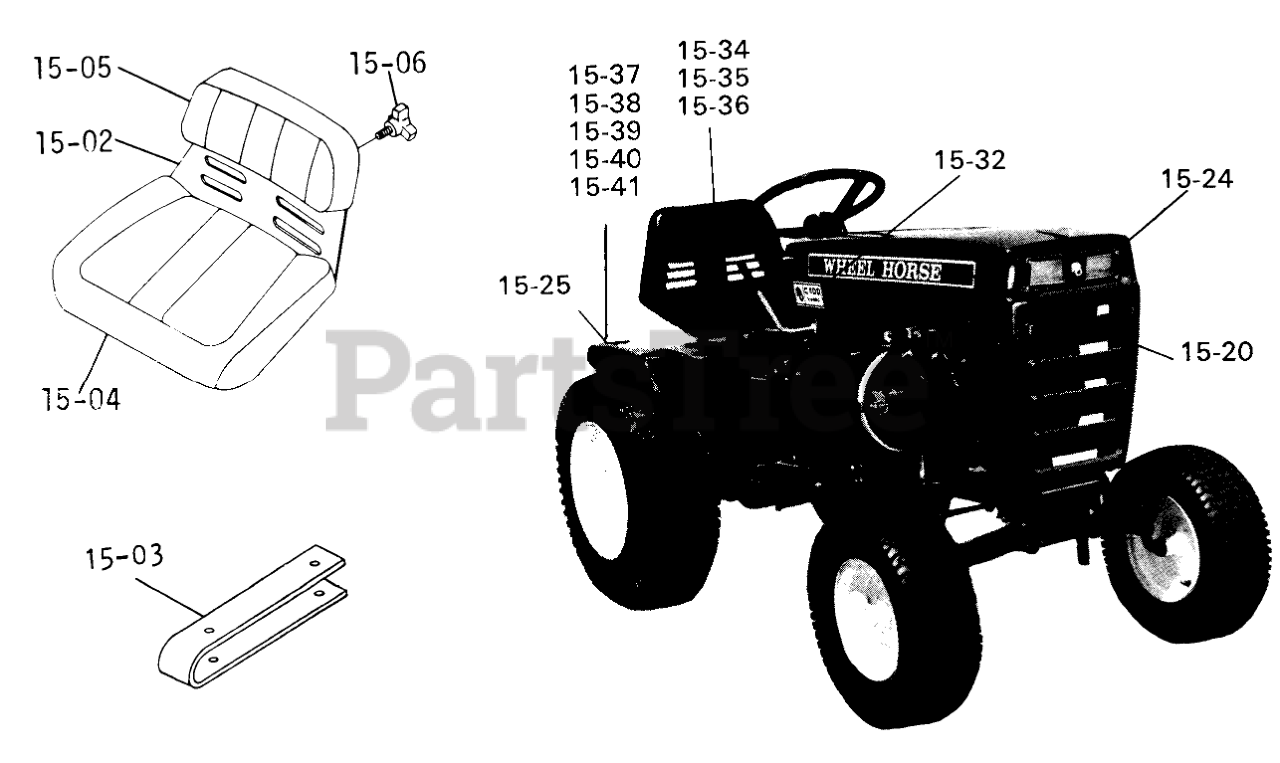

1-0390 (C-100) - Toro Lawn Tractor (1974) Seats, Decals, Misc. Trim Parts Diagram

Lawn Tractor

Seats, Decals, Misc. Trim Parts Diagram

  • Title

15-02

Toro 102033

DISCONTINUED

$

$

Not available

Toro 900037-4

Bolt Hex 5/16-18 x 3/4

$

$

Currently unavailable

Toro 915112-4

Nut, 5/16-18

$

$

Currently unavailable

15-03

Toro 103145

See Supercession: 110920-03
(Superseded to 110920-03)

$219.99

$

Usually ships in 3-6 days

0

15-04

Toro 9663

BULLT 281

$

$

Not available

Toro 960151-4

Bolt, 1/4-20 Whizlock

$

$

Currently unavailable

15-05

Toro 9664

BULLT 281

$

$

Not available

15-06

Toro 9665

DISCONTINUED

$

$

Not available

Toro 920082-4

Lockwasher

$

$

Currently unavailable

Toro 915932-4

Nut-Hi Crown

$

$

Currently unavailable

Toro 908016-4

Bolt Hex 5/16-18

$

$

Currently unavailable

15-20

Toro 102831

See Supercession: 108851
(Superseded to 108851)

$45.99

$

Usually ships in 3-6 days

0

15-32

Toro 104366

DISCONTINUED

$

$

Not available

Toro 104066

Decal-8-Speed-C-100

$

$

Currently unavailable

Toro 103954

Decal-C-160

$

$

Currently unavailable

15-25

Toro 103174

DISCONTINUED

$

$

Not available

15-34

Toro 103567

Washer

$

$

Currently unavailable

15-35

Toro 103568

Decal-Read Manual

$

$

Currently unavailable

15-36

Toro 102948

DECAL-HAND LIFT

$

$

Not available

15-37

Toro 102847

DISCONTINUED

$

$

Not available

15-38

Toro 103435

See Supercession: 104951
(Superseded to 104951)

$

$

Not available

15-39

Toro 102859

DISCONTINUED

$

$

Not available

15-40

Toro 103885

See Supercession: 106722
(Superseded to 106722)

$

$

Not available

15-41

Toro 102848

See Supercession: 106738
(Superseded to 106738)

$

$

Not available
