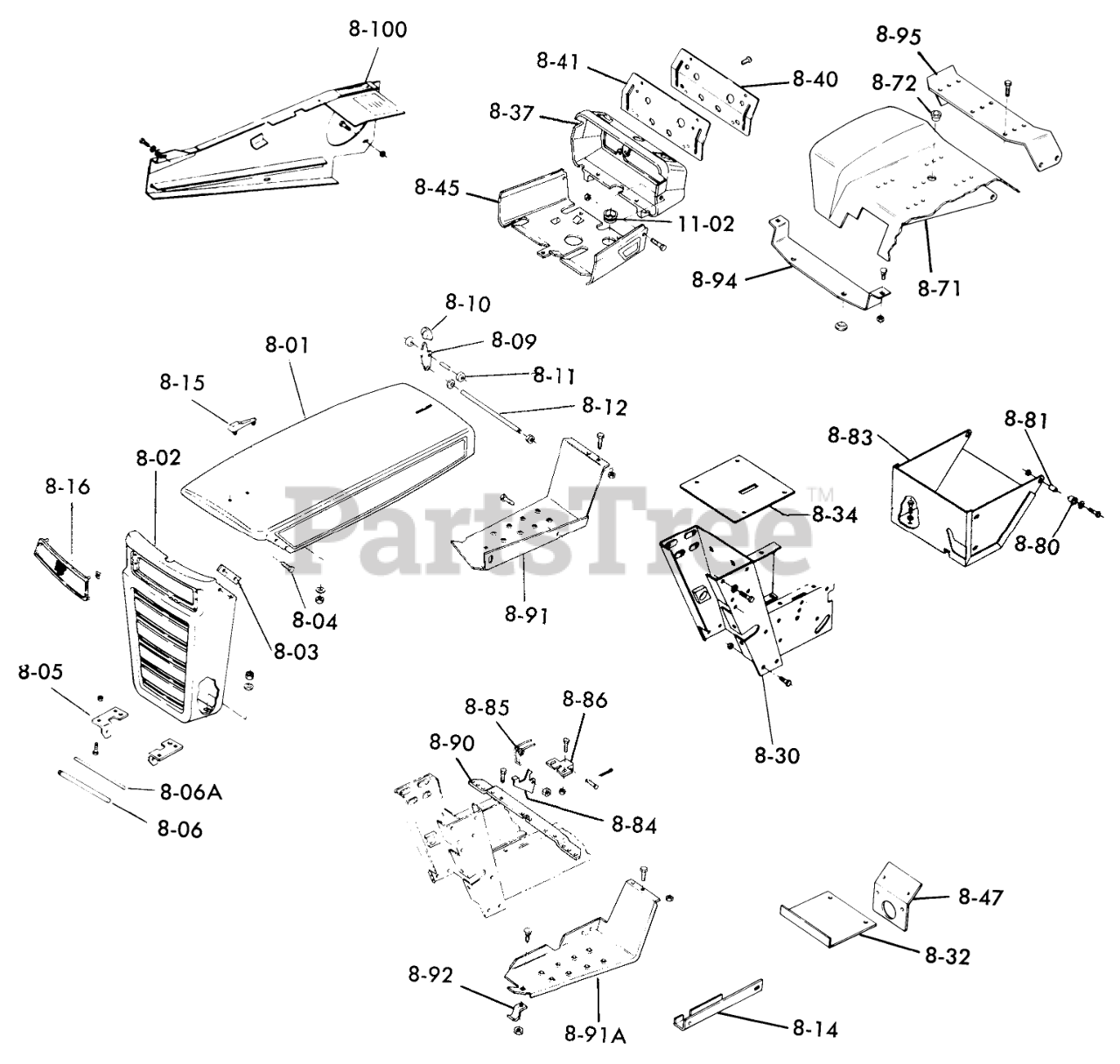

1-0511 (B-100) - Toro Lawn Tractor (1975) Sheet Metal And Covers Parts Diagram

Lawn Tractor

Sheet Metal And Covers Parts Diagram

  • Title

8-01

Toro 105033

Hood Assembly

$

$

Currently unavailable

8-02

Toro 105039

Spacer Sleeve

$

$

Currently unavailable

8-03

Toro 105038

Plate, Grille

$

$

Currently unavailable

8-04

Toro 926693

See Supercession: 9266934
(Superseded to 9266934)

$10.99

$

In Stock, only 2 left!

0

8-05

Toro 103834

DISCONTINUED

$

$

Not available

Toro 103835

DISCONTINUED

$

$

Not available

Toro 900037

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 20+

0

8-06

Toro 101710

GRILL PIVOT ROD

$

$

Not available

Toro 100398

See Supercession: 105797
(Superseded to 105797)

$0.99

$

In Stock, Qty 13

0

8-06A

Toro 101850

ROD-HOOD STOP

$25.99

$

Usually ships in 3-6 days

0

Toro 932000

See Supercession: 3272-1
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 10

0

8-09

Toro 5467

LEVER HOOD LATCH

$209.99

$

Usually ships in 3-6 days

0

Toro 933182

SPIROL PIN

$

$

Not available

8-10

Toro 5469

KNOB

$4.99

$

In Stock, only 2 left!

0

8-11

Toro 5468

DISCONTINUE WHEN EXP

$

$

Not available

8-12

Toro 5522

See Supercession: 88-2090
(Superseded to 88-2090)

$

$

Not available

Toro 5466

DISCONTINUED

$

$

Not available

Toro 915932

NUT

$8.99

$

Usually ships in 3-6 days

0

8-14

Toro 102810

DISCONTINUED

$

$

Not available

8-15

Toro 5438

Hood Ornament

$

$

Currently unavailable

Toro 5437

DISCONTINUED

$

$

Not available

8-16

Toro 7416

ESCUTCHEON PLATE

$

$

Not available

Toro 7721

SPEED NUT

$

$

Not available

Toro 100646

DISCONTINUED

$

$

Not available

8-30

Toro 104706

DISCONTINUED

$

$

Not available

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

Toro 920083

See Supercession: 3253-21
(Superseded to 3253-21)

$0.99

$

In Stock, only 4 left!

0

8-32

Toro 104180

Cover-Dust

$

$

Currently unavailable

8-34

Toro 104056

DISCONTINUED

$

$

Not available

Toro 960151

See Supercession: 3234-13
(Superseded to 3234-13)

$1.49

$

Usually ships in 3-6 days

0

Toro MW-4474

Clip

$

$

Currently unavailable

Toro 104745

DISCONTINUED

$

$

Not available

8-37

Toro 5450

DISCONTINUED

$

$

Not available

Toro 960152

See Supercession: 3234-33
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 8

0

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 9

0

8-40

Toro 104023

DISCONTINUED

$

$

Not available

Toro 104868

DISCONTINUED

$

$

Not available

8-41

Toro 101841

DISCONTINUED

$

$

Not available

Toro 5442

DISCONTINUED

$

$

Not available

Toro 102168

DISCONTINUED

$

$

Not available

Toro 5606

See Supercession: 106556
(Superseded to 106556)

$

$

Not available

8-45

Toro 103877

DISCONTINUED

$

$

Not available

Toro 926720

Screw
(Superseded to 9264964)

$1.99

$

In Stock, only 4 left!

0

Toro 9690

DISCONTINUED

$

$

Not available

8-47

Toro 101344

DISCONTINUED

$

$

Not available

Toro MW-4475

Clip

$

$

Currently unavailable

8-71

Toro 104853

DISCONTINUED

$

$

Not available

8-72

Toro 938030

DISCONTINUED

$

$

Not available

8-80

Toro 7879

BUSHING-FLANGED

$27.99

$

Usually ships in 3-6 days

0

8-81

Toro 4937

DISCONTINUED

$

$

Not available

Toro 908034

See Supercession: 323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

8-83

Toro 6110

DUP PART SEE $BOOK

$

$

Not available

8-84

Toro 104087

DISCONTINUED

$

$

Not available

8-85

Toro MW-8863

Spring

$

$

Currently unavailable

Toro 5977

NYLINER BUSHING

$7.49

$

In Stock, only 1 left!

0

Toro 7617

DISCONTINUED

$

$

Not available

Toro 932008

See Supercession: 3272-6
(Superseded to 3-2726)

$

$

Not available

8-86

Toro 7616

DISCONTINUED

$

$

Not available

Toro 908002

See Supercession: 321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

8-90

Toro 103830

DISCONTINUED

$

$

Not available

Toro 926694

SCREW

$

$

Not available

8-91

Toro 103372

DISCONTINUED

$

$

Not available

8-91A

Toro 102799

See Supercession: 105843
(Superseded to 105843)

$

$

Not available

Toro 105201

DISCONTINUED

$

$

Not available

Toro 908017

See Supercession: 322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

8-92

Toro 7456

BRACKET

$

$

Not available

8-94

Toro 102248

DISCONTINUED

$

$

Not available

Toro 5667

GROMMET

$5.49

$

In Stock, only 3 left!

0

8-95

Toro 102249

DISCONTINUED

$

$

Not available

8-100

Toro 102954

DISCONTINUED

$

$

Not available

Toro 908046

See Supercession: 324-4
(Superseded to 324-4)

$4.49

$

Usually ships in 3-6 days

0

Toro 960175

DISCONTINUED

$

$

Not available

Toro 920082

See Supercession: 3253-4
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0
