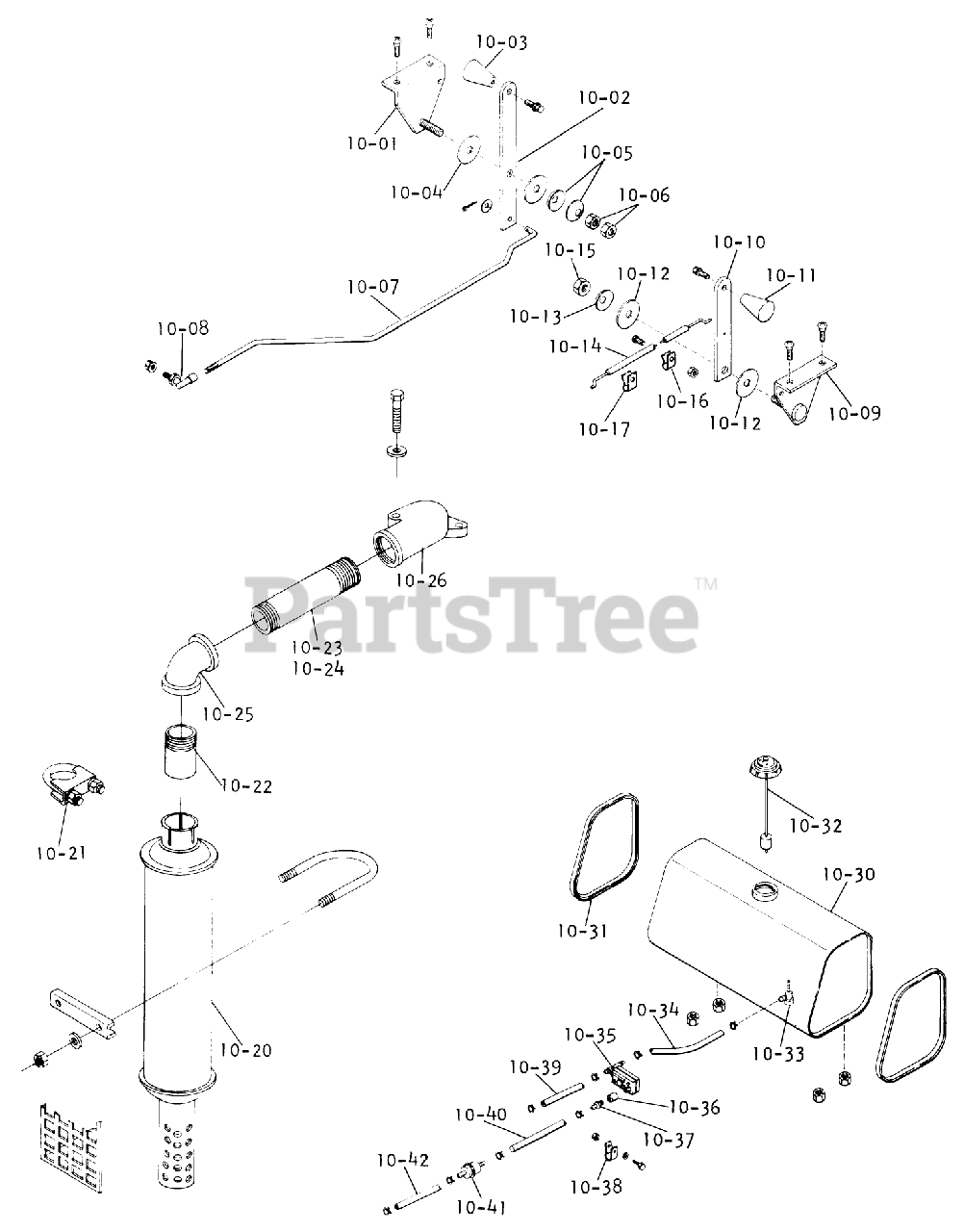

1-0601 - Toro Lawn Tractor, 18hp (1973) Fuel And Exhaust Systems Parts Diagram

Lawn Tractor, 18hp

Fuel And Exhaust Systems Parts Diagram

  • Title

10-01

Toro 102709

DISCONTINUED

$

$

Not available

Toro 101410

DISCONTINUED

$

$

Not available

10-02

Toro 102904

DISCONTINUED

$

$

Not available

10-03

Toro 102892

KNOB

$

$

Not available

Toro 960151-4

Bolt, 1/4-20 Whizlock

$

$

Currently unavailable

10-04

Toro 100305

FRICTION WASHER

$6.49

$

In Stock, only 2 left!

0

10-05

Toro 100365

WASHER-SPRING DISC

$

$

Not available

10-06

Toro 915113-4

Nut

$

$

Currently unavailable

Toro 920039-4

Washer

$

$

Currently unavailable

10-07

Toro 102860

DISCONTINUED

$

$

Not available

Toro 920007-4

Washer

$

$

Currently unavailable

Toro 932007-4

Pin-cotter 3/32 X 1/2

$

$

Currently unavailable

10-08

Toro 102903

DISCONTINUED

$

$

Not available

Toro 915000-6

Nut-Nylok 1/4-28

$

$

Currently unavailable

10-09

Toro 102709

DISCONTINUED

$

$

Not available

10-10

Toro 102711

HANDLE

$

$

Not available

10-11

Toro 102892

KNOB

$

$

Not available

10-12

Toro 100305

FRICTION WASHER

$6.49

$

In Stock, only 2 left!

0

10-13

Toro 100365

WASHER-SPRING DISC

$

$

Not available

10-14

Toro 102863

DISCONTINUED

$

$

Not available

10-15

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

10-16

Toro 7059

CLIP BOWDEN WIRE

$

$

Not available

Toro 960140-4

Screw, 10-32 X 5/8 Hex

$

$

Currently unavailable

Toro 5924

HEX NUT 10-32 E.S. + + USE 3296-21 + +

$

$

Not available

10-17

Toro 100729

THROTTLE CONTROL CLP

$8.49

$

Usually ships in 3-6 days

0

10-20

Toro 103393

See Supercession: 103729
(Superseded to 103729)

$603.99

$

Usually ships in 3-6 days

0

Toro 103128

DISCONTINUED

$

$

Not available

Toro 103536

DISCONTINUED

$

$

Not available

Toro 103537

Channel-U Bolt

$

$

Currently unavailable

Toro 915112-4

Nut, 5/16-18

$

$

Currently unavailable

Toro 920038-4

Washer

$

$

Currently unavailable

10-21

Toro 102645

ASSY-MUFFLER CLAMP

$16.99

$

In Stock, only 1 left!

0

10-22

Toro 103096

DISCONTINUED

$

$

Not available

10-23

Toro 943367-4

Nipple 1" Pipe x 2"

$

$

Currently unavailable

10-24

Toro 943372-4

Nipple-Exhaust 1 X 5

$

$

Currently unavailable

10-25

Toro 943026-4

Elbow 90 X 1

$

$

Currently unavailable

10-26

Toro 103396

DISCONTINUE

$

$

Not available

Toro 103397

DISCONTINUED

$

$

Not available

10-26

Toro 908020-4

Bolt 5/16-18 x 11/4

$

$

Currently unavailable

Toro 908025-4

Bolt Hex 5/6-18 X 2-1/2

$

$

Currently unavailable

Toro 920082-4

Lockwasher

$

$

Currently unavailable

10-30

Toro 102631

DISCONTINUED

$

$

Not available

Toro 960010-4

Nut Whizlock 5/16-18

$

$

Currently unavailable

10-31

Toro 102898

DISCONTINUED

$

$

Not available

10-32

Toro 102587

GAUGE CAP

$179.99

$

Usually ships in 3-6 days

0

10-33

Toro 4941

DISCONTINUED

$

$

Not available

10-34

Toro 8215

Fuel Hose

$

$

Currently unavailable

Toro 950153

DISCONTINUED

$

$

Not available

10-35

Toro 103085

See Supercession: 27-7000
(Superseded to 27-7000)

$

$

Not available

10-36

Toro 943001-4

Coupling 1/8" Pipe

$

$

Currently unavailable

10-37

Toro 1787

DISCONTINUED
(Superseded to 105076)

$

$

Not available

Toro 908003-4

Bolt 1/4-20 X 3/4

$

$

Currently unavailable

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

10-38

Toro 101861

DISCONTINUED

$

$

Not available

10-39

Toro 8214

See Supercession: 110521
(Superseded to 110521)

$

$

Not available

Toro 908019-4

Bolt 5/16-18 x 1

$

$

Currently unavailable

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

10-40

Toro 7722

See Supercession: 110521
(Superseded to 110521)

$

$

Not available

10-41

Toro 100327

See Supercession: 109585
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 20+

0

10-42

Toro 9212

See Supercession: 101338
(Superseded to 101338)

$

$

Not available
