1-0630 (D-200) - Toro Lawn Tractor (1974) Brake, Speed Control Linkage (cont-D) Parts Diagram

Lawn Tractor

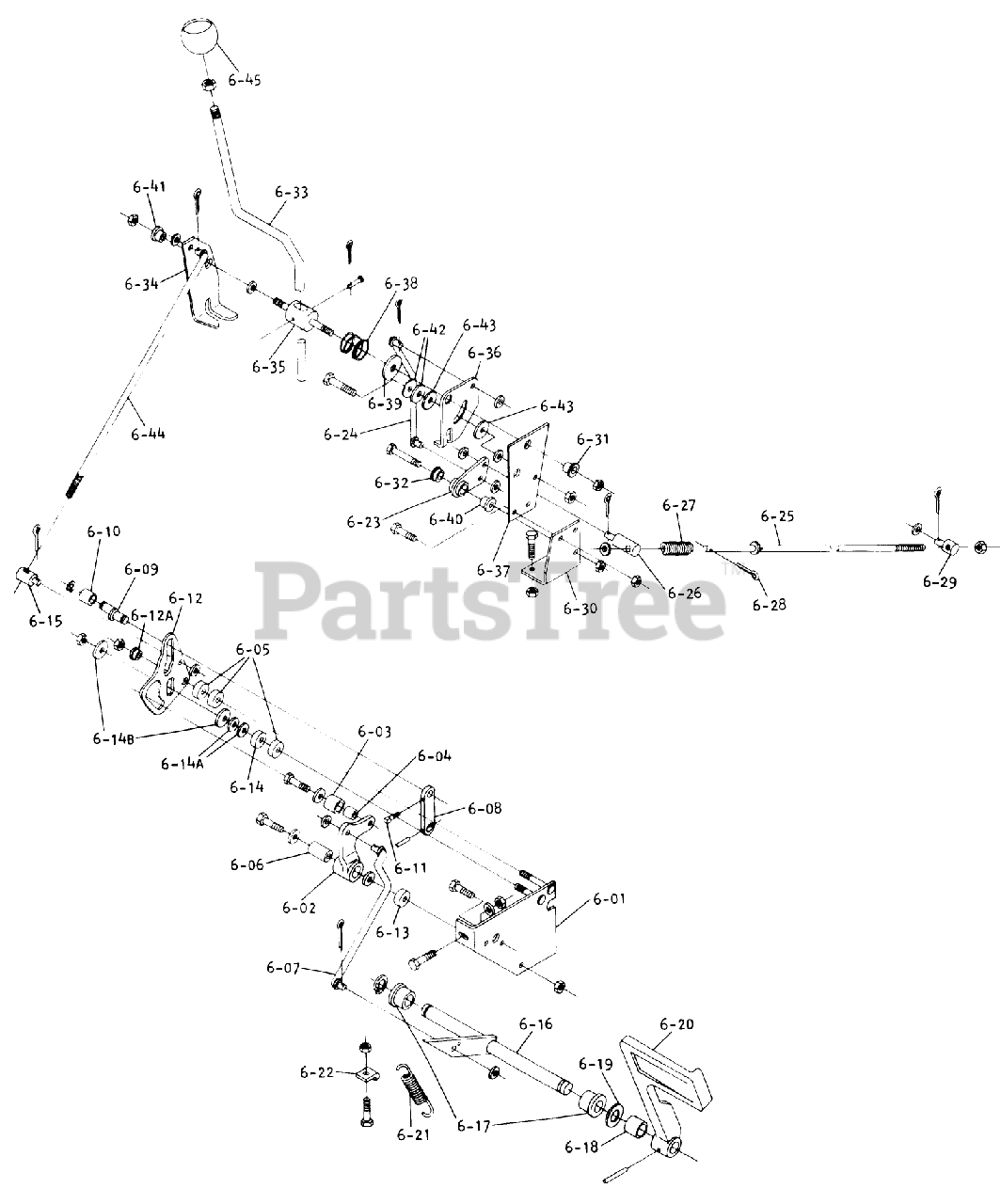

Brake, Speed Control Linkage (cont-D) Parts Diagram

  • Title

6-01

Toro 104158

DISCONTINUED

$

$

Not available

Toro 960152-4

Bolt 1/4-20 x 5/8 Whizlock

$

$

Currently unavailable

Toro 908018-4

Bolt, 5/16-18 X 7/8

$

$

Currently unavailable

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

Toro 920008-4

Washer

$

$

Currently unavailable

6-02

Toro 104160

Lever-Neutral Return

$

$

Currently unavailable

6-03

Toro 100656

BEARING-CAM RETURN

$

$

Not available

6-04

Toro 100357

DISCONTINUED

$

$

Not available

Toro 908034-5

Bolt Hex 3/8-16 x 1

$

$

Currently unavailable

6-05

Toro 102427

DISCONTINUED

$

$

Not available

6-06

Toro 100313

DISCONTINUED

$

$

Not available

Toro 908040-4

Bolt 3/8-16 x 2 1/2

$

$

Currently unavailable

Toro 920211-4

Washer

$

$

Currently unavailable

6-07

Toro 104161

Neutral Return Rod Assembly

$

$

Currently unavailable

Toro 932008-4

Hairpin

$

$

Currently unavailable

Toro 920009-4

Washer

$

$

Currently unavailable

6-08

Toro 104163

DISCONTINUED

$

$

Not available

Toro 933269

DISCONTINUED

$1.99

$

Usually ships in 3-6 days

0

6-09

Toro 104164

ECCENTRIC-CAM FOLLOW

$209.99

$

Usually ships in 3-6 days

0

6-10

Toro 100304

BEARING CAM ROLLER

$8.49

$

Usually ships in 3-6 days

0

Toro 100307

E RING

$

$

Not available

6-11

Toro 909532-6

Set Screw, 1/4-20 x 1/2 Sq . Hd.

$

$

Currently unavailable

6-12

Toro 104165

DISCONTINUED

$

$

Not available

6-12A

Toro 100309

CAM-SPACER

$10.99

$

Usually ships in 3-6 days

0

Toro 915113-6

Nut

$

$

Currently unavailable

6-13

Toro 102427

DISCONTINUED

$

$

Not available

6-14

Toro 100687

DISCONTINUED

$

$

Not available

6-14A

Toro 100365

WASHER-SPRING DISC

$

$

Not available

6-14B

Toro 100305

FRICTION WASHER

$6.49

$

In Stock, only 2 left!

0

6-15

Toro 6434

DISCONTINUED

$

$

Not available

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

Toro 920011-4

Washer

$

$

Currently unavailable

6-16

Toro 101089

DISCONTINUED

$

$

Not available

6-17

Toro 101442

BEARING

$

$

Not available

Toro 5618

E-RING

$1.49

$

In Stock, only 3 left!

0

6-18

Toro 979120-4

Spacer

$

$

Currently unavailable

6-19

Toro 1278

WASHER

$2.49

$

In Stock, Qty 14

0

6-20

Toro 102004

DISCONTINUED

$

$

Not available

Toro 933216

PIN-ROLL, SPIROL

$3.99

$

In Stock, only 1 left!

0

6-21

Toro 9170

DISCONTINUED

$

$

Not available

6-22

Toro 2534

CLIP - SPRING

$4.99

$

Usually ships in 3-6 days

0

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

6-23

Toro 103854

DISCONTINUED

$

$

Not available

6-24

Toro 103857

Rod Assembly

$

$

Currently unavailable

6-25

Toro 103859

DISCONTINUED

$

$

Not available

6-26

Toro 9808

DISCONTINUE

$

$

Not available

6-27

Toro 102977

DISCONTINUED

$

$

Not available

Toro 932016-4

Cotter Pin

$

$

Currently unavailable

6-29

Toro 101161

TRUNNION

$

$

Not available

Toro 920228-4

Washer

$

$

Currently unavailable

6-30

Toro 103860

Bracket-Support

$

$

Currently unavailable

6-31

Toro 5179

DISCONTINUED

$

$

Not available

6-32

Toro 100309

CAM-SPACER

$10.99

$

Usually ships in 3-6 days

0

Toro 908036-4

Bolt, 3/8-16 x 1/2

$

$

Currently unavailable

6-33

Toro 103866

DISCONTINUED

$

$

Not available

6-34

Toro 103863

DISCONTINUED

$

$

Not available

6-35

Toro 103865

DISCONTINUED

$

$

Not available

Toro 932913-4

Pin-Clevis

$

$

Currently unavailable

Toro 932000-4

Cotter Pin

$

$

Currently unavailable

6-36

Toro 103868

DISCONTINUED

$

$

Not available

6-37

Toro 103870

Plate-Support

$

$

Currently unavailable

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

6-38

Toro 103867

Washer

$

$

Not available

6-39

Toro 920249-4

Washer, .406 X 1.5 X .065

$

$

Currently unavailable

6-40

Toro 5179

DISCONTINUED

$

$

Not available

6-41

Toro 100309

CAM-SPACER

$10.99

$

Usually ships in 3-6 days

0

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

6-42

Toro 100365

WASHER-SPRING DISC

$

$

Not available

6-43

Toro 100305

FRICTION WASHER

$6.49

$

In Stock, only 2 left!

0

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

Toro 920039-4

Washer

$

$

Currently unavailable

6-44

Toro 103851

DISCONTINUED

$

$

Not available

6-45

Toro 102891

KNOB

$

$

Not available

Toro 915238-4

Nut-1/2-13

$

$

Currently unavailable
