1-0630 (D-200) - Toro Lawn Tractor (1974) P.t.o. Clutch (cont-D) Parts Diagram

Lawn Tractor

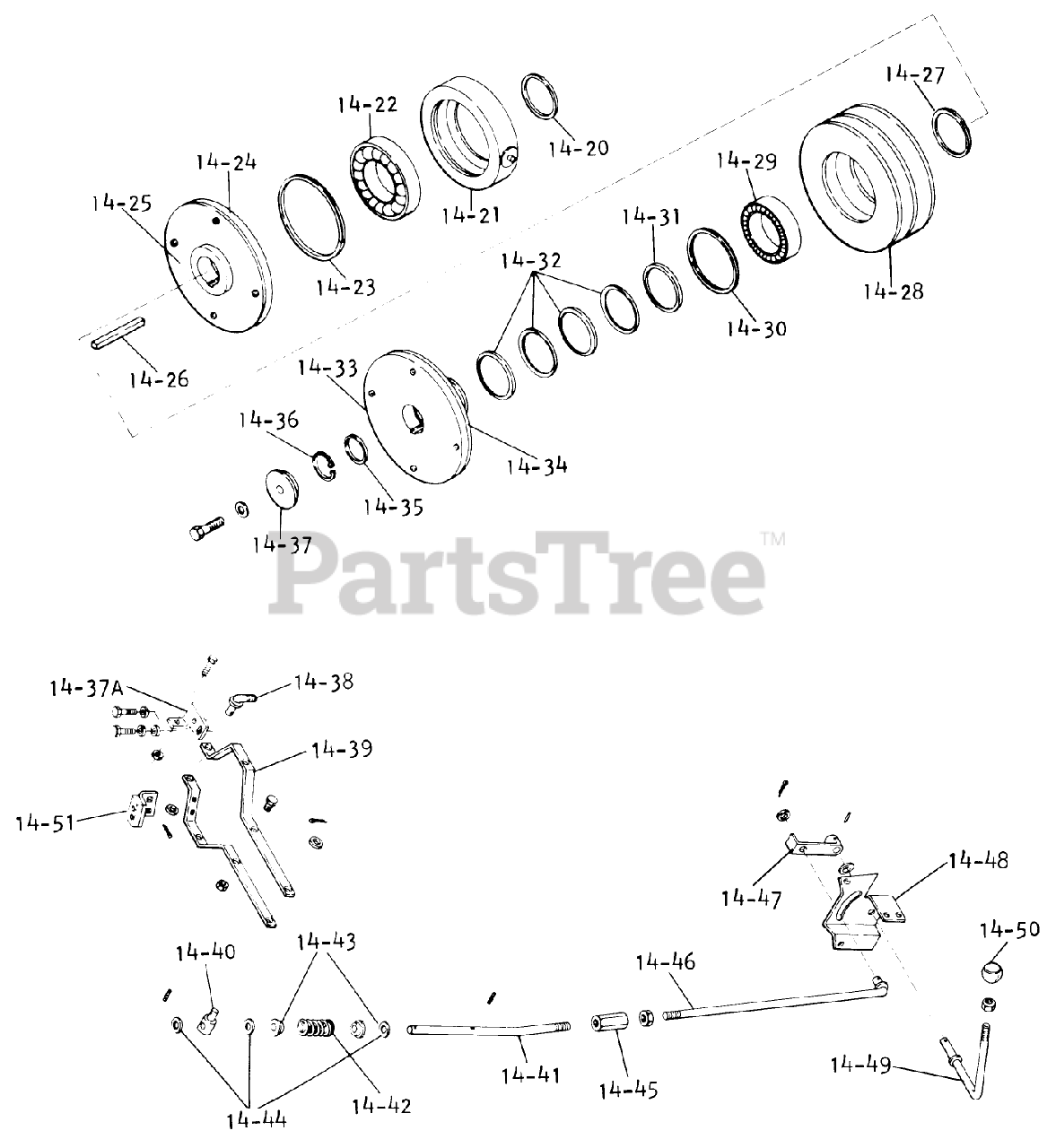

P.t.o. Clutch (cont-D) Parts Diagram

  • Title

14-20

Toro 102917

DISCONTINUED

$

$

Not available

14-21

Toro 102911

ASSY COLLAR

$655.99

$

Usually ships in 3-6 days

0

14-22

Toro 102914

BEARING

$331.99

$

Usually ships in 3-6 days

0

14-23

Toro 102918

DISCONTINUED

$

$

Not available

14-24

Toro 102905

DISCONTINUED

$

$

Not available

14-25

Toro 102907

CLUTCH FACING

$

$

Not available

Toro 102910

RIVET

$

$

Not available

14-26

Toro 1188

See Supercession: 703214
(Superseded to 703214)

$

$

Not available

Toro 102934

KEY

$

$

Not available

14-27

Toro 102916

RING EXTERNAL

$

$

Not available

14-28

Toro 102913

PULLEY CLUTCH

$

$

Not available

14-29

Toro 102915

DISCONTINUED

$

$

Not available

14-30

Toro 102919

DISCONTINUED

$

$

Not available

14-31

Toro 920245-4

Washer-Spacer

$

$

Currently unavailable

14-32

Toro 102923

DISCONTINUED

$

$

Not available

14-33

Toro 102908

DISCONTINUE

$

$

Not available

14-34

Toro 102907

CLUTCH FACING

$

$

Not available

14-35

Toro 920232-4

Washer, plain

$

$

Currently unavailable

14-36

Toro 936020

DISCONTINUED

$

$

Not available

14-37

Toro 102920

DISCONTINUED

$

$

Not available

Toro 908198-4

Bolt, 7/16-20 X 1 3/4

$

$

Currently unavailable

Toro 920084-4

Lockwasher 3/8

$

$

Currently unavailable

14-37A

Toro 104184

See Supercession: 115091
(Superseded to 115091)

$

$

Not available

Toro 908045-4

Bolt Hex 7/16-4 x 3/4

$

$

Currently unavailable

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

Toro 920009-4

Washer

$

$

Currently unavailable

Toro 920083-4

Lockwasher

$

$

Currently unavailable

14-38

Toro 103036

DISCONTINUED

$

$

Not available

Toro 920010-4

Washer

$

$

Currently unavailable

Toro 932016-4

Cotter Pin

$

$

Currently unavailable

14-39

Toro 104189

DUP PART SEE $BOOK

$

$

Not available

Toro 103227

See Supercession: 103227-01
(Superseded to 103227-01)

$

$

Not available

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

Toro 915113-4

Nut

$

$

Currently unavailable

Toro 908048-4

Bolt, 7/16-14 X 1 1/2

$

$

Currently unavailable

Toro 915664-4

Nut, 7/16-14

$

$

Currently unavailable

14-40

Toro 102213

TRUNION

$

$

Not available

Toro 920011-4

Washer

$

$

Currently unavailable

Toro 9320174

COTTER PIN 1/8 X 1

$0.99

$

Usually ships in 3-6 days

0

14-41

Toro 103039

DISCONTINUED

$

$

Not available

Toro 933156

PIN-ROLL

$1.49

$

In Stock, only 3 left!

0

14-42

Toro 101439

DISCONTINUED

$

$

Not available

14-43

Toro 5840

See Supercession: 101441
(Superseded to 101441)

$

$

Not available

14-44

Toro 920011-4

Washer

$

$

Currently unavailable

14-45

Toro 102926

DISCONTINUED

$

$

Not available

14-46

Toro 102927

DISCONTINUED

$

$

Not available

Toro 915238-4

Nut-1/2-13

$

$

Currently unavailable

Toro 103117

DISCONTINUED

$

$

Not available

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

14-47

Toro 102932

ARM CLUTCH ENGAGE

$237.99

$

Usually ships in 3-6 days

0

14-48

Toro 102930

DISCONTINUED

$

$

Not available

Toro 102973

DISCONTINUED

$

$

Not available

Toro 923785-4

Pop Rivet 1/8 x .232

$

$

Currently unavailable

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

14-49

Toro 102935

ASSY CLUTCH HANDLE

$129.99

$

Usually ships in 3-6 days

0

Toro 933171

Spirol Pin
(Superseded to 32121-94)

$

$

Not available

14-50

Toro 102891

KNOB

$

$

Not available

14-51

Toro 103313

DISCONTINUED

$

$

Not available

Toro 103315

See Supercession: 94-6653
(Superseded to 94-6653)

$

$

Not available

Toro 6657

RIVET-BRASS

$1.49

$

Usually ships in 3-6 days

0

Toro 900016-4

Bolt-Carriage 1/4-20 X 1

$

$

Currently unavailable

Toro 920007-4

Washer

$

$

Currently unavailable
