1010 - Lawn-Boy Edger (SN: 100000001 - 199999999) (1961) Model L153b Cultivator Parts Diagram

Edger

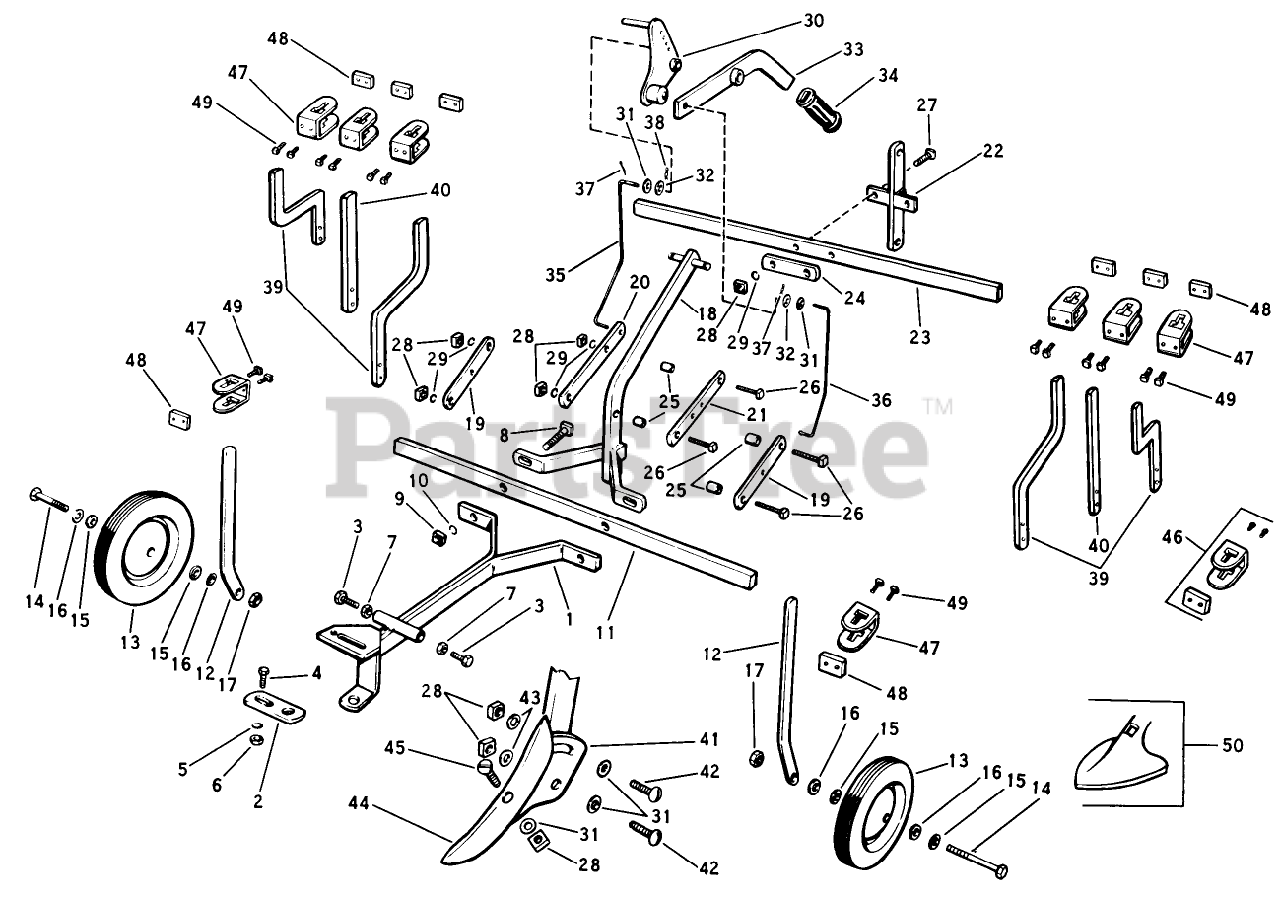

Model L153b Cultivator Parts Diagram

  • Title

1

Lawn-Boy 150289

Drawbar Assembly

$

$

Currently unavailable

2

Lawn-Boy 103280

DISCONTINUED

$

$

Not available

3

Lawn-Boy 103748

Capscrew 3/8-16 x 1-1/4 Lg.

$

$

Currently unavailable

4

Lawn-Boy 103659

Capscrew 5/16-18 x 3/4 Lg.

$

$

Currently unavailable

5

Lawn-Boy 104019

BAR-LIFT LINK *R

$49.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 103573

DISCONTINUED

$

$

Not available

7

Lawn-Boy 103574

See Supercession: 25-2470
(Superseded to 25-2470)

$63.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 103411

Square Head Machine Bolt 1/2-13 x 1-3/4 Lg.

$

$

Currently unavailable

9

Lawn-Boy 104396

DISCONTINUED

$

$

Not available

10

Lawn-Boy 104318

Lockwasher 1/2

$

$

Currently unavailable

11

Lawn-Boy 103281

DISCONTINUED

$

$

Not available

12

Lawn-Boy 103282

See Supercession: 254-78
(Superseded to 254-78)

$14.99

$

In Stock, Qty 9

0

13

Lawn-Boy 103283

DISCONTINUED

$

$

Not available

14

Lawn-Boy 103762

Hex Head Axle Bolt 1/2-13 x 4 Lg.

$

$

Currently unavailable

15

Lawn-Boy 104533

Rubber Washer

$

$

Currently unavailable

16

Lawn-Boy 104534

Washer 1/2 SAE

$

$

Currently unavailable

17

Lawn-Boy 104819

DISCONTINUED

$

$

Not available

18

Lawn-Boy 150292

Operating Lever Support Assembly

$

$

Currently unavailable

19

Lawn-Boy 103284

ORDER 103285 & 103286

$

$

Not available

20

Lawn-Boy 103286

DISCONTINUED

$

$

Not available

21

Lawn-Boy 103285

DISCONTINUED

$

$

Not available

22

Lawn-Boy 150293

Rear Pivot Bar Assembly

$

$

Currently unavailable

23

Lawn-Boy 103289

DISCONTINUED

$

$

Not available

24

Lawn-Boy 103290

DISCONTINUED

$

$

Not available

25

Lawn-Boy 105039

Spacer Sleeve

$

$

Currently unavailable

26

Lawn-Boy 103407

Square Head Machine Bolt 3/8-16 x 1-1/2 Lg.

$

$

Currently unavailable

27

Lawn-Boy 103412

DISCONTINUED

$

$

Not available

28

Lawn-Boy 103776

Square Nut 3/8-16

$

$

Currently unavailable

29

Lawn-Boy 103793

See Supercession: 120177
(Superseded to 120177)

$

$

Not available

30

Lawn-Boy 150294

Operating Lever Assembly

$

$

Currently unavailable

31

Lawn-Boy 103775

DISCONTINUED

$

$

Not available

32

Lawn-Boy 104677

Washer

$

$

Currently unavailable

33

Lawn-Boy 150295

Lift Lever Assembly

$

$

Currently unavailable

34

Lawn-Boy 102669

DISCONTINUED

$

$

Not available

35

Lawn-Boy 103296

DISCONTINUED

$

$

Not available

36

Lawn-Boy 103297

DISCONTINUED

$

$

Not available

37

Lawn-Boy 103973

Cotter Pin 3/32 x 1 Lg.

$

$

Currently unavailable

38

Lawn-Boy 103298

DISCONTINUED

$

$

Not available

39

Lawn-Boy 103299

DISCONTINUED

$

$

Not available

40

Lawn-Boy 103300

Shovel Support, Straight

$

$

Currently unavailable

41

Lawn-Boy 150296

Adjusting Tool Holder Assembly

$

$

Currently unavailable

42

Lawn-Boy 103358

Carr. Bolt 3/8-16 x 1-1/2 Lg.

$

$

Currently unavailable

43

Lawn-Boy 103783

Washer 7/16

$

$

Currently unavailable

44

Lawn-Boy 103303

DISCONTINUED

$

$

Not available

45

Lawn-Boy 103436

DISCONTINUED

$

$

Not available

46

Lawn-Boy 150297

Clamp Assembly

$

$

Currently unavailable

47

Lawn-Boy 103305

Clamp

$

$

Currently unavailable

48

Lawn-Boy 103306

Clamp Plate

$

$

Currently unavailable

49

Lawn-Boy 104766

See Supercession: 108802
(Superseded to 108802)

$

$

Not available

50

Lawn-Boy 103304

DISCONTINUED

$

$

Not available
