1010 - Lawn-Boy Edger (SN: 100000001 - 199999999) (1961) Model Lpt Tractor Parts List Parts Diagram

Edger

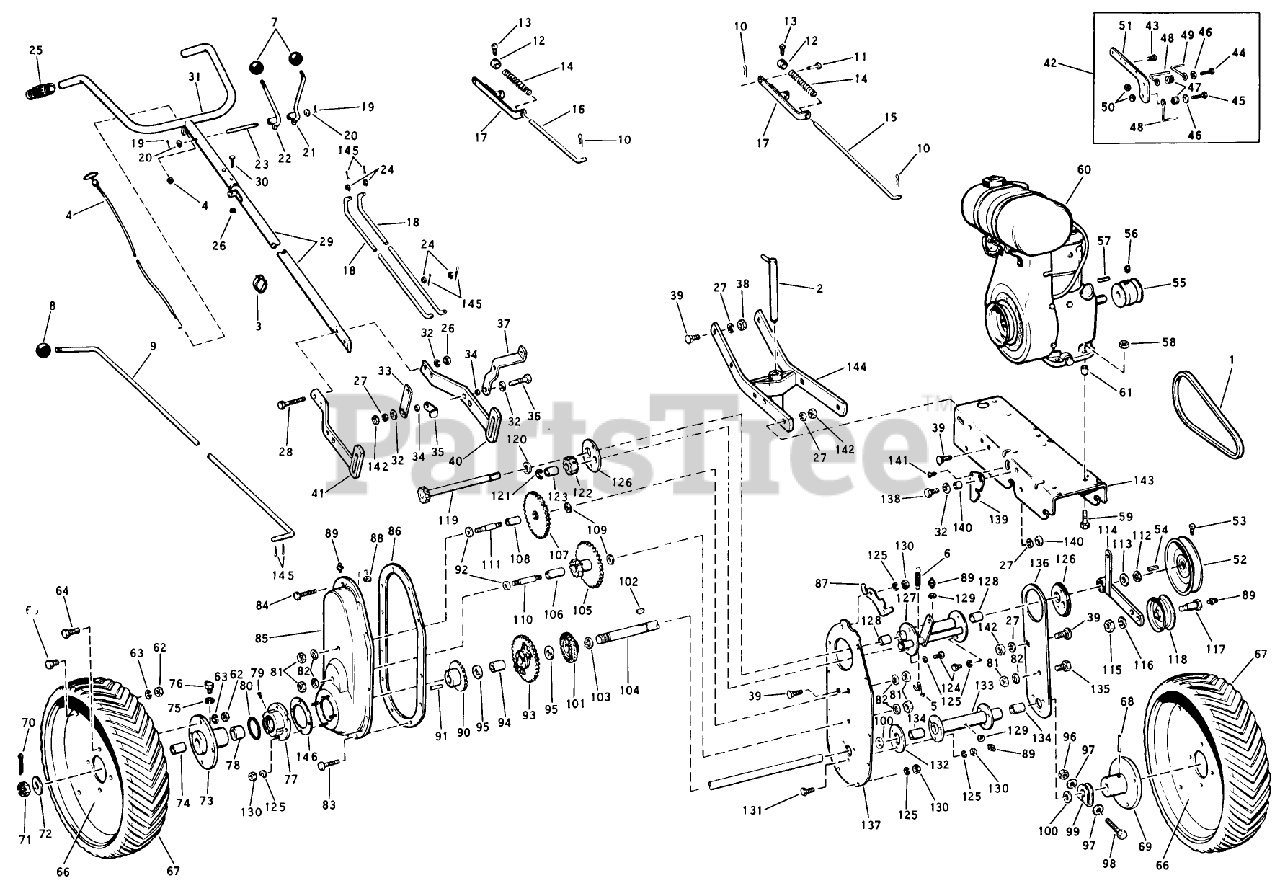

Model Lpt Tractor Parts List Parts Diagram

  • Title

1

Lawn-Boy 103321

Lockwasher

$

$

Currently unavailable

2

Lawn-Boy 150113

Hitch Pin

$

$

Currently unavailable

3

Lawn-Boy 102813

DISCONTINUED

$

$

Not available

4

Lawn-Boy 102812

DISCONTINUED

$

$

Not available

5

Lawn-Boy 102811

Bushing

$

$

Currently unavailable

6

Lawn-Boy 102810

DISCONTINUED

$

$

Not available

7

Lawn-Boy 102672

DUP PART SEE $BOOK

$

$

Not available

8

Lawn-Boy 102809

See Supercession: 32128-19
(Superseded to 32128-19)

$1.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 102808

DISCONTINUED

$

$

Not available

10

Lawn-Boy 102665

See Supercession: 105052
(Superseded to 105052)

$34.99

$

In Stock, only 2 left!

0

11

Lawn-Boy 102805

Pin

$

$

Currently unavailable

12

Lawn-Boy 103501

DISCONTINUED

$

$

Not available

13

Lawn-Boy 103983

Set Screw

$

$

Currently unavailable

14

Lawn-Boy 102804

DISCONTINUED

$

$

Not available

15

Lawn-Boy 102807

DISCONTINUED

$

$

Not available

16

Lawn-Boy 102806

Trans. Control Spring Rod

$

$

Currently unavailable

17

Lawn-Boy 150193

Spring Bracket

$

$

Currently unavailable

18

Lawn-Boy 102803

TINE LH

$

$

Not available

19

Lawn-Boy 104514

Cotter Pin

$

$

Currently unavailable

20

Lawn-Boy 104513

DISCONTINUED

$

$

Not available

21

Lawn-Boy 150112

Control Handle, L.H.

$

$

Currently unavailable

22

Lawn-Boy 150111

Control Handle, R.H.

$

$

Currently unavailable

23

Lawn-Boy 102800

DISCONTINUED

$

$

Not available

24

Lawn-Boy 103867

DISCONTINUED

$

$

Not available

25

Lawn-Boy 102818

DISCONTINUED

$

$

Not available

26

Lawn-Boy 104511

DISCONTINUED

$

$

Not available

27

Lawn-Boy 103793

See Supercession: 120177
(Superseded to 120177)

$

$

Not available

28

Lawn-Boy 103661

Hex Capscrew

$

$

Currently unavailable

29

Lawn-Boy 150109

Lower Tube

$

$

Currently unavailable

30

Lawn-Boy 103684

DISCONTINUED

$

$

Not available

31

Lawn-Boy 150110

Handle

$

$

Currently unavailable

32

Lawn-Boy 103775

DISCONTINUED

$

$

Not available

33

Lawn-Boy 102673

Shifting Lever

$

$

Currently unavailable

34

Lawn-Boy 104512

Spacer

$

$

Currently unavailable

35

Lawn-Boy 102674

DISCONTINUED

$

$

Not available

36

Lawn-Boy 103671

Hex Capscrew 3/8-16 x 1-1/2 Lg.

$

$

Currently unavailable

37

Lawn-Boy 102794

DISCONTINUED

$

$

Not available

38

Lawn-Boy 103570

Hex Nut 3/8-16

$

$

Currently unavailable

39

Lawn-Boy 103358

Carr. Bolt 3/8-16 x 1-1/2 Lg.

$

$

Currently unavailable

40

Lawn-Boy 150291

Handlebar Brkt., L.H.

$

$

Currently unavailable

41

Lawn-Boy 150290

HandlebarBrkt., R.H.

$

$

Currently unavailable

42

Lawn-Boy 150108

Belt Guide Assembly

$

$

Currently unavailable

43

Lawn-Boy 104510

E-Ring

$

$

Currently unavailable

44

Lawn-Boy 103663

Hex Capscrew 5/16 18 x 1-1/4 Lg.

$

$

Currently unavailable

45

Lawn-Boy 103662

Hex Capscrew 5/16 18 x 1-1/8 Lg.

$

$

Currently unavailable

46

Lawn-Boy 104019

BAR-LIFT LINK *R

$49.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 102790

DISCONTINUED

$

$

Not available

48

Lawn-Boy 102787

DISCONTINUED

$

$

Not available

49

Lawn-Boy 102788

See Supercession: 105201
(Superseded to 105201)

$

$

Not available

50

Lawn-Boy 103573

DISCONTINUED

$

$

Not available

51

Lawn-Boy 102789

See Supercession: 105201
(Superseded to 105201)

$

$

Not available

52

Lawn-Boy 102791

Pulley Assembly

$

$

Currently unavailable

53

Lawn-Boy 104485

Set Screw

$

$

Currently unavailable

54

Lawn-Boy 103623

DISCONTINUED

$

$

Not available

55

Lawn-Boy 102786

DISCONTINUED

$

$

Not available

56

Lawn-Boy 104509

Set Screw

$

$

Currently unavailable

57

Lawn-Boy 103624

Key

$

$

Currently unavailable

58

Lawn-Boy 103529

Nut and Washer

$

$

Currently unavailable

59

Lawn-Boy 103741

Hex Capscrew

$

$

Currently unavailable

60

Lawn-Boy 102785

DISCONTINUED

$

$

Not available

61

Lawn-Boy 104508

Spacer

$

$

Currently unavailable

62

Lawn-Boy 103569

Hex Nut 5/16-18

$

$

Currently unavailable

63

Lawn-Boy 103942

See Supercession: 120177
(Superseded to 120177)

$

$

Not available

64

Lawn-Boy 103740

Hex Capscrew 5/16-18 x 1 Lg.

$

$

Currently unavailable

65

Lawn-Boy 103737

Hex Capscrew 5/16-18 x 5/8 Lg.

$

$

Currently unavailable

66

Lawn-Boy 102783

DISCONTINUED

$

$

Not available

67

Lawn-Boy 102784

DISCONTINUED

$

$

Not available

68

Lawn-Boy 103832

DISCONTINUED

$

$

Not available

69

Lawn-Boy 102782

GEAR 24T

$

$

Not available

70

Lawn-Boy 104507

Cotter Pin

$

$

Currently unavailable

71

Lawn-Boy 104506

Hex Slotted Nut

$

$

Currently unavailable

72

Lawn-Boy 104505

Washer

$

$

Currently unavailable

73

Lawn-Boy 150308

Right Wheel Hub Assy.

$

$

Currently unavailable

74

Lawn-Boy 103483

Bushing

$

$

Currently unavailable

75

Lawn-Boy 103874

Lockwasher

$

$

Currently unavailable

76

Lawn-Boy 103521

Grease Fimng

$

$

Currently unavailable

77

Lawn-Boy 150304

Flange Bushing Assy.

$

$

Currently unavailable

78

Lawn-Boy 103561

Bushing

$

$

Currently unavailable

79

Lawn-Boy 103518

Grease Fitting

$

$

Currently unavailable

80

Lawn-Boy 103562

Oil Seal

$

$

Currently unavailable

81

Lawn-Boy 103575

Hex Jam Nut 7/16 x 14

$

$

Currently unavailable

82

Lawn-Boy 104497

DISCONTINUED

$

$

Not available

83

Lawn-Boy 103654

Hex Capscrew 1/4-20 x 1/2 Lg.

$

$

Currently unavailable

84

Lawn-Boy 103655

Capscrew

$

$

Currently unavailable

85

Lawn-Boy 150303

Gearcase Cover

$

$

Currently unavailable

86

Lawn-Boy 102779

See Supercession: 101525
(Superseded to 101525)

$

$

Not available

87

Lawn-Boy 103606

See Supercession: 104823
(Superseded to 104823)

$

$

Not available

88

Lawn-Boy 103553

Hex Jam Nut

$

$

Currently unavailable

89

Lawn-Boy 103515

Grease Fitting

$

$

Currently unavailable

90

Lawn-Boy 103723

DISCONTINUED

$

$

Not available

91

Lawn-Boy 104306

Rear Wheel

$

$

Currently unavailable

92

Lawn-Boy 103567

Washer

$

$

Currently unavailable

93

Lawn-Boy 150310

Final Drive Gear Dif. Pinion Assembly

$

$

Currently unavailable

94

Lawn-Boy 103525

Bushing

$

$

Currently unavailable

95

Lawn-Boy 103560

Thrust Washer

$

$

Currently unavailable

96

Lawn-Boy 103540

Hex Nut

$

$

Currently unavailable

97

Lawn-Boy 103859

DISCONTINUED

$

$

Not available

98

Lawn-Boy 104503

Hex Capscrew

$

$

Currently unavailable

99

Lawn-Boy 102772

Collar

$

$

Currently unavailable

100

Lawn-Boy 103566

DISCONTINUED

$

$

Not available

101

Lawn-Boy 103725

DISCONTINUED

$

$

Not available

102

Lawn-Boy 103590

DISCONTINUED

$

$

Not available

103

Lawn-Boy 103894

Plug

$

$

Currently unavailable

104

Lawn-Boy 103721

DISCONTINUED

$

$

Not available

105

Lawn-Boy 150103

Second Intermediate Gear and Pinion Assembly

$

$

Currently unavailable

106

Lawn-Boy 103490

DISCONTINUED

$

$

Not available

107

Lawn-Boy 150102

First Inter. Gear Pinion Assy.

$

$

Currently unavailable

108

Lawn-Boy 103489

Bushing (Oilite)

$

$

Currently unavailable

109

Lawn-Boy 103564

Washer

$

$

Currently unavailable

110

Lawn-Boy 103613

DISCONTINUED

$

$

Not available

111

Lawn-Boy 102761

First Intermediate Shaft

$

$

Currently unavailable

112

Lawn-Boy 103938

Retaining Ring

$

$

Currently unavailable

113

Lawn-Boy 104416

DISCONTINUED

$

$

Not available

114

Lawn-Boy 150101

Idler Pulley Lever

$

$

Currently unavailable

115

Lawn-Boy 103549

Hex Jam Nut

$

$

Currently unavailable

116

Lawn-Boy 103884

DISCONTINUED

$

$

Not available

117

Lawn-Boy 102660

DISCONTINUED
(Superseded to 107992)

$

$

Not available

118

Lawn-Boy 150067

Idler Pulley

$

$

Currently unavailable

119

Lawn-Boy 150099

Input Gear

$

$

Currently unavailable

120

Lawn-Boy 103563

DISCONTINUED

$

$

Not available

121

Lawn-Boy 104501

Retaining Ring

$

$

Currently unavailable

122

Lawn-Boy 150100

Idler Pinion Assembly

$

$

Currently unavailable

123

Lawn-Boy 103497

Bushing

$

$

Currently unavailable

124

Lawn-Boy 104496

Capscrew

$

$

Currently unavailable

125

Lawn-Boy 103965

Lockwasher 1/4

$

$

Currently unavailable

126

Lawn-Boy 150098

Pilot

$

$

Currently unavailable

127

Lawn-Boy 150097

Input Tube Idler Shaft Assy.

$

$

Currently unavailable

128

Lawn-Boy 103526

SHAFT

$

$

Not available

129

Lawn-Boy 104003

Lift Bar

$

$

Currently unavailable

130

Lawn-Boy 103555

Hex Nut

$

$

Currently unavailable

131

Lawn-Boy 103729

ASSEMBLY MUFFLER

$603.99

$

Usually ships in 3-6 days

0

132

Lawn-Boy 102748

DISCONTINUED

$

$

Not available

133

Lawn-Boy 150309

Axle Tube Assembly

$

$

Currently unavailable

134

Lawn-Boy 103525

Bushing

$

$

Currently unavailable

135

Lawn-Boy 103679

Capscrew 7/16-14 x 3/4 Lg.

$

$

Currently unavailable

136

Lawn-Boy 102745

Left Support Plate

$

$

Currently unavailable

137

Lawn-Boy 102744

Back Plate

$

$

Currently unavailable

138

Lawn-Boy 103668

See Supercession: 66-1340
(Superseded to 66-1340)

$11.99

$

In Stock, Qty 6

0

139

Lawn-Boy 102743

BELT

$

$

Not available

140

Lawn-Boy 104498

Spacer

$

$

Currently unavailable

141

Lawn-Boy 104499

Drive Screw #10 x 3/8 Lg.

$

$

Currently unavailable

142

Lawn-Boy 103557

DISCONTINUED

$

$

Not available

143

Lawn-Boy 102742

See Supercession: 94-2501
(Superseded to 94-2501)

$41.99

$

In Stock, Qty 15

0

144

Lawn-Boy 150095

Frame

$

$

Currently unavailable

145

Lawn-Boy 103887

BUMPER-RUBBER

$4.99

$

In Stock, only 3 left!

0

146

Lawn-Boy 103595

Flange Bushing Gasket

$

$

Currently unavailable

Lawn-Boy 603331

Decal

Note: NOT SHOWN

$

$

Currently unavailable
