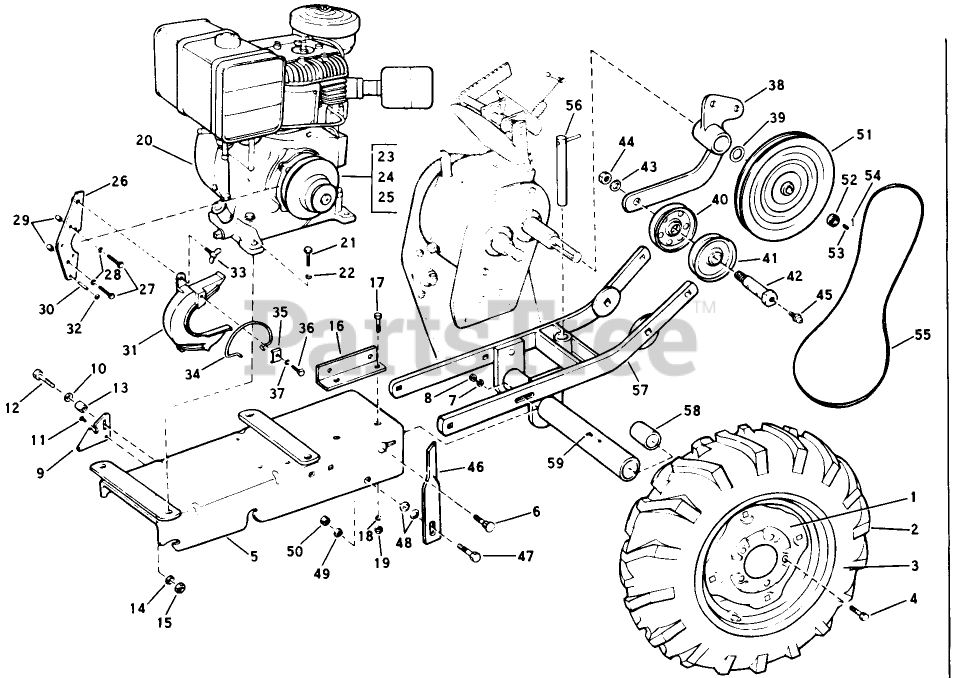

1010 - Lawn-Boy Edger (SN: 100000001 - 199999999) (1961) Model M-70bc Tractor Power Unit And Frame Assembly Parts Diagram

Edger

Model M-70bc Tractor Power Unit And Frame Assembly Parts Diagram

  • Title

1

Lawn-Boy 102883

DISCONTINUED
(Superseded to 105202)

$

$

Not available

2

Lawn-Boy 104835

Tire 6-12

$

$

Currently unavailable

3

Lawn-Boy 104039

Tube 6-12

$

$

Currently unavailable

4

Lawn-Boy 102884

See Supercession: 112564
(Superseded to 112564)

$10.99

$

In Stock, only 4 left!

0

5

Lawn-Boy 150140

Engine Mounting Assembly

$

$

Currently unavailable

6

Lawn-Boy 103306

Clamp Plate

$

$

Currently unavailable

7

Lawn-Boy 103793

See Supercession: 120177
(Superseded to 120177)

$

$

Not available

8

Lawn-Boy 103557

DISCONTINUED

$

$

Not available

9

Lawn-Boy 102743

BELT

$

$

Not available

10

Lawn-Boy 103775

DISCONTINUED

$

$

Not available

11

Lawn-Boy 104499

Drive Screw #10 x 3/8 Lg.

$

$

Currently unavailable

12

Lawn-Boy 103668

See Supercession: 66-1340
(Superseded to 66-1340)

$11.99

$

In Stock, Qty 6

0

13

Lawn-Boy 104498

Spacer

$

$

Currently unavailable

14

Lawn-Boy 103793

See Supercession: 120177
(Superseded to 120177)

$

$

Not available

15

Lawn-Boy 103574

See Supercession: 25-2470
(Superseded to 25-2470)

$63.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 102886

DISCONTINUED

$

$

Not available

17

Lawn-Boy 103654

Hex Capscrew 1/4-20 x 1/2 Lg.

$

$

Currently unavailable

18

Lawn-Boy 103965

Lockwasher 1/4

$

$

Currently unavailable

19

Lawn-Boy 103555

Hex Nut

$

$

Currently unavailable

20

Lawn-Boy 102887

DISCONTINUED

$

$

Not available

21

Lawn-Boy 103748

Capscrew 3/8-16 x 1-1/4 Lg.

$

$

Currently unavailable

22

Lawn-Boy 104013

Lockwasher

$

$

Currently unavailable

23

Lawn-Boy 102888

Engine Sheave 1 Inch Bore

$

$

Currently unavailable

24

Lawn-Boy 104509

Set Screw

$

$

Currently unavailable

25

Lawn-Boy 103637

DISCONTINUED

$

$

Not available

26

Lawn-Boy 150142

Guide Mount Assembly

$

$

Currently unavailable

27

Lawn-Boy 103665

See Supercession: 110506
(Superseded to 110506)

$46.99

$

In Stock, Qty 15

0

28

Lawn-Boy 103874

Lockwasher

$

$

Currently unavailable

29

Lawn-Boy 105050

Spacer

$

$

Currently unavailable

30

Lawn-Boy 104475

Roll Pin

$

$

Currently unavailable

31

Lawn-Boy 102893

DISCONTINUED

$

$

Not available

32

Lawn-Boy 102894

Grommet

$

$

Currently unavailable

33

Lawn-Boy 102895

DISCONTINUED

$

$

Not available

34

Lawn-Boy 102896

DISCONTINUED

$

$

Not available

35

Lawn-Boy 102897

DISCONTINUE

$

$

Not available

36

Lawn-Boy 103661

Hex Capscrew

$

$

Currently unavailable

37

Lawn-Boy 103948

Lockwasher 5/16

$

$

Currently unavailable

38

Lawn-Boy 150143

Idler Lever Assembly

$

$

Currently unavailable

39

Lawn-Boy 104247

DISCONTINUED

$

$

Not available

40

Lawn-Boy 150144

Idler Pulley Assy, Right

$

$

Currently unavailable

41

Lawn-Boy 150145

Idler Pulley Assy, Left

$

$

Currently unavailable

42

Lawn-Boy 102902

Idler Pulley Shaft

$

$

Currently unavailable

43

Lawn-Boy 103884

DISCONTINUED

$

$

Not available

44

Lawn-Boy 103549

Hex Jam Nut

$

$

Currently unavailable

45

Lawn-Boy 103515

Grease Fitting

$

$

Currently unavailable

46

Lawn-Boy 102903

DISCONTINUED

$

$

Not available

57

Lawn-Boy 103757

Capscrew 7/16-14 x 1 1/4 Lg.

$

$

Currently unavailable

48

Lawn-Boy 104585

Washer 7/16

$

$

Currently unavailable

49

Lawn-Boy 104376

DISCONTINUED

$

$

Not available

50

Lawn-Boy 103571

Hex Nut 7/16-14

$

$

Currently unavailable

51

Lawn-Boy 102904

DISCONTINUED

$

$

Not available

52

Lawn-Boy 104018

See Supercession: 104859
(Superseded to 104859)

$55.99

$

Usually ships in 3-6 days

0

53

Lawn-Boy 103624

Key

$

$

Currently unavailable

54

Lawn-Boy 103973

Cotter Pin 3/32 x 1 Lg.

$

$

Currently unavailable

55

Lawn-Boy 103347

ROD AND GUIDE ASM

$64.99

$

Usually ships in 3-6 days

0

56

Lawn-Boy 104284

DISCONTINUED

$

$

Not available

57

Lawn-Boy 150124

Frame Assembly

$

$

Currently unavailable

58

Lawn-Boy 103481

Bushing

$

$

Currently unavailable

59

Lawn-Boy 103515

Grease Fitting

$

$

Currently unavailable

Lawn-Boy 603331

Decal

$

$

Currently unavailable
