1013 - Lawn-Boy 9" Edger (SN: 700000001 - 799999999) (1967) Model 7001 Grass Catcher Deluxe Parts Diagram

9" Edger

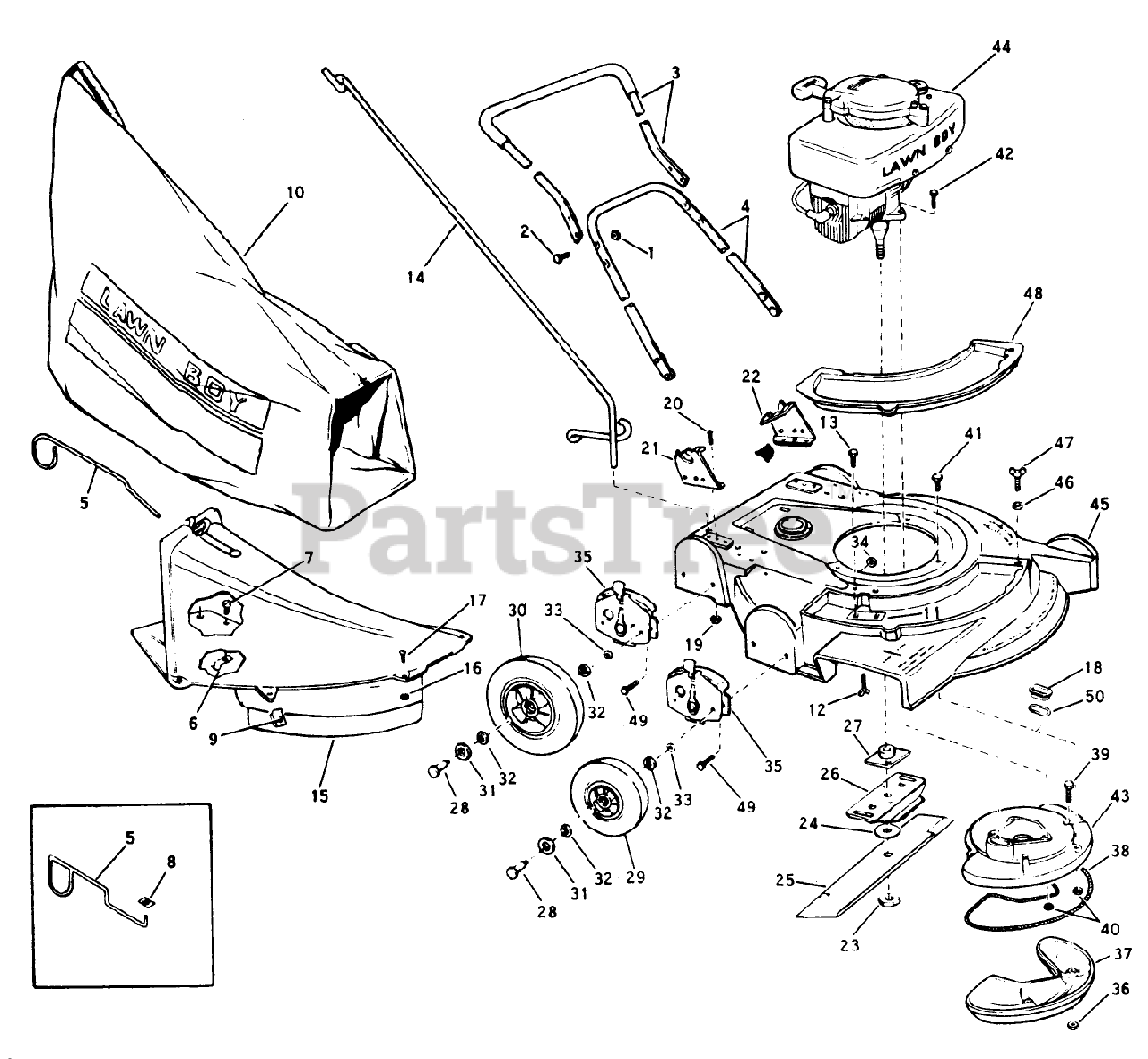

Model 7001 Grass Catcher Deluxe Parts Diagram

  • Title

1

Lawn-Boy 603477

DISCONTINUED

$

$

Not available

2

Lawn-Boy 602480

SCREW

$

$

Not available

3

Lawn-Boy 678225

Handle Grip Assy. Top

$

$

Currently unavailable

4

Lawn-Boy 678280

HANDLE

$

$

Not available

Lawn-Boy 678504

DISCONTINUED

Note: NOT SHOWN

$

$

Not available

5

Lawn-Boy 604051

DISCONTINUED

Note: Only one wheel guard is included with 678504. For replacement guards be sure to order the correct part for your grass catcher.

$

$

Not available

5

Lawn-Boy 678723

DISCONTINUED

Note: Only one wheel guard is included with 678504. For replacement guards be sure to order the correct part for your grass catcher.

$

$

Not available

6

Lawn-Boy 605664

DISCONTINUED

$

$

Not available

7

Lawn-Boy 604986

DISCONTINUED

$

$

Not available

8

Lawn-Boy 604597

DISCONTINUED

$

$

Not available

9

Lawn-Boy 604227

SPEED NUT ARDEN

$

$

Not available

10

Lawn-Boy 678254

89802 LB WHOLE GOODS

$

$

Not available

11

Lawn-Boy 604214

DISCONTINUED

$

$

Not available

12

Lawn-Boy 604213

DISCONTINUED

$

$

Not available

13

Lawn-Boy 603012

DISCONTINUED

$

$

Not available

14

Lawn-Boy 678002

DISCONTINUED

$

$

Not available

Lawn-Boy 678463

DISCONTINUED

Note: NOT SHOWN

$

$

Not available

15

Lawn-Boy 678503

Chute Skirt Assembly (Includes Hardware)

$

$

Currently unavailable

16

Lawn-Boy 133079

NUT S

$

$

Not available

17

Lawn-Boy 602063

DISCONTINUED

$

$

Not available

18

Lawn-Boy 602717

SLEEVE

$3.49

$

In Stock, Qty 10

0

19

Lawn-Boy 602830

NUT

$

$

Not available

20

Lawn-Boy 602693

DISCONTINUED

$

$

Not available

21

Lawn-Boy 604596

DISCONTINUED

$

$

Not available

22

Lawn-Boy 678224

DISCONTINUED

$

$

Not available

23

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

$6.49

$

In Stock, Qty 5

0

24

Lawn-Boy 605058

WASHER

$6.49

$

In Stock, Qty 10

0

25

Lawn-Boy 603703

See Supercession: 612543-03
(Superseded to 612543-03)

$37.99

$

In Stock, Qty 19

0

26

Lawn-Boy 603541

DISCONTINUED

$

$

Not available

27

Lawn-Boy 677525

PLATE AND COLLAR ASM

$56.99

$

In Stock, only 3 left!

0

28

Lawn-Boy 603441

BOLT WHEEL

$8.49

$

In Stock, Qty 5

0

29

Lawn-Boy 678542

DISCONTINUED

$

$

Not available

30

Lawn-Boy 678543

DISCONTINUED

$

$

Not available

31

Lawn-Boy 605256

SPACER

$2.99

$

In Stock, Qty 20+

0

32

Lawn-Boy 605255

WASHER

$1.99

$

In Stock, only 4 left!

0

33

Lawn-Boy 603620

WASHER WROUGHT

$6.49

$

In Stock, Qty 20+

0

34

Lawn-Boy 602830

NUT

$

$

Not available

35

Lawn-Boy 678462

DISCONTINUED

$

$

Not available

36

Lawn-Boy 602315

LOCKNUT E

$5.49

$

Usually ships in 3-6 days

0

37

Lawn-Boy 604024

DISCONTINUED

$

$

Not available

38

Lawn-Boy 604516

DISCONTINUED

$

$

Not available

39

Lawn-Boy 604036

See Supercession: 607847
(Superseded to 607847)

$

$

Not available

40

Lawn-Boy 602830

NUT

$

$

Not available

41

Lawn-Boy 604862

SCREW

$

$

Not available

42

Lawn-Boy 604039

DISCONTINUED

$

$

Not available

43

Lawn-Boy 604026

DISCONTINUED

$

$

Not available

44

Lawn-Boy 678066

Engine-Model C-18

$

$

Currently unavailable

45

Lawn-Boy 678516

DISCONTINUED

$

$

Not available

46

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

$1.49

$

In Stock, Qty 20+

0

47

Lawn-Boy 604608

DISCONTINUED

$

$

Not available

48

Lawn-Boy 678505

DISCONTINUED

$

$

Not available

49

Lawn-Boy 605101

DISCONTINUED

$

$

Not available

50

Lawn-Boy 604624

GASKET S

$12.99

$

In Stock, only 4 left!

0
