10313 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 005900001 - 005999999) (1995) HANDLE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

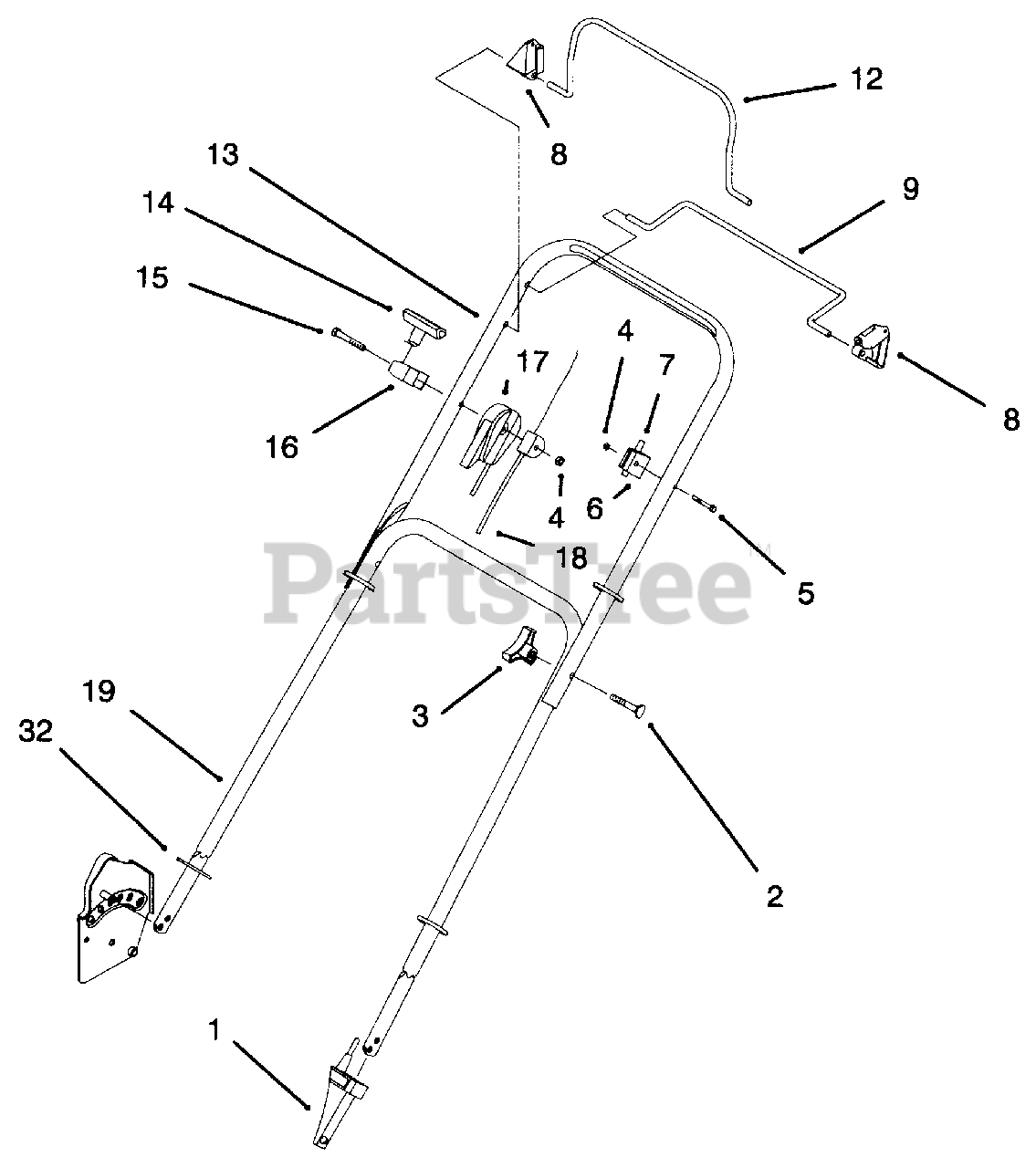

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 614693

Anchor Cable SP Lower
(Superseded to 93-7380)

$15.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 614697

Screw-Handle

$2.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 614243

Knob
(Superseded to 98-7134)

$3.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 3296-73

Nut-Lock

$5.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 92-2266

Screw-Handle

$6.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 92-7729

Anchor-Cable SP Upper

$5.49

$

In Stock, Qty 19

0

7

Lawn-Boy 92-7726

Cable-Traction
(Superseded to 95-5590)

$40.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$5.99

$

In Stock, Qty 12

0

9

Lawn-Boy 92-1001

Bail-SP Control
(Superseded to 92-1001-03)

$64.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 92-1002

Bail-Flywheel Brake
(Superseded to 92-1002-03)

$

$

Not available

13

Lawn-Boy 92-7737

Handle-Upper
(Superseded to 92-7737-05)

$

$

Not available

14

Lawn-Boy 92-4853

Handle-Starter

$10.99

$

In Stock, only 3 left!

0

15

Lawn-Boy 321-49

Screw-Hex Hd. Cap

$1.99

$

In Stock, Qty 9

0

16

Lawn-Boy 92-7720

Guide-Rope
(Superseded to 86-9671)

$4.99

$

In Stock, Qty 14

0

17

Lawn-Boy 92-1045

Cable-Throttle

$104.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 92-9589

Cable-Brake Assembly

$111.99

$

In Stock, only 4 left!

0

19

Lawn-Boy 614643

Handle-Lower
(Superseded to 614643-05)

$

$

Not available

32

Lawn-Boy 93-3653

Guard-Handle
(Superseded to 104-1013)

$

$

Not available

Lawn-Boy 92-5424

Staple

Note: Not Illustrated

$1.49

$

Usually ships in 3-6 days

0
