10323 - Lawn-Boy SilverPro Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) HANDLE ASSEMBLY Parts Diagram

SilverPro Series Walk-Behind Mower

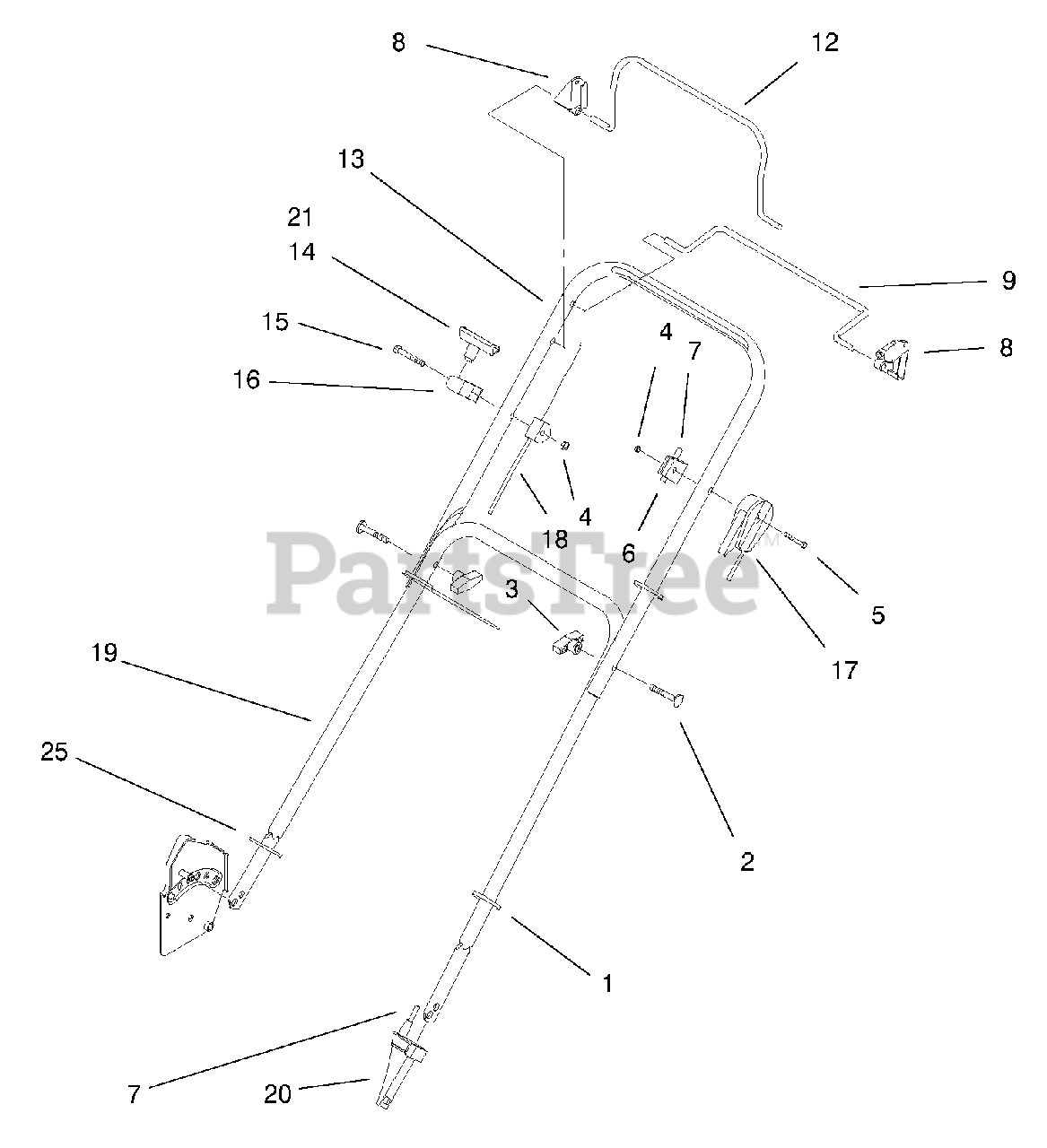

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 614249

Strap-Tie Sm

$1.49

$

In Stock, Qty 5

0

2

Lawn-Boy 614697

Screw-HH

$2.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 98-7134

Knob-Handle

$3.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 3296-73

Nut-Lock NI

$5.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 321-49

Screw-Hex Hd

$1.99

$

In Stock, Qty 9

0

6

Lawn-Boy 92-7729

Anchor-Upper Sp Cable

$5.49

$

In Stock, Qty 19

0

7

Lawn-Boy 100-5990

Cable-Traction

$40.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$5.99

$

In Stock, Qty 12

0

9

Lawn-Boy 92-1001-03

Bail-Sp Control

$64.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 93-4184-03

Bail-Brake

$46.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 100-2888-05

Handle-Upper

$

$

Not available

14

Lawn-Boy 612825

Handle-Start Eat
(Superseded to 81-1630)

$

$

Not available

15

Lawn-Boy 321-50

Screw-HH

$1.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 93-7383

Rope-Guide
(Superseded to 86-9671)

$4.99

$

In Stock, Qty 14

0

17

Lawn-Boy 100-5987

Cable-Throttle

$47.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 100-5983

Cable-Flywheel Brake

$34.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 614643-05

Section-Lower Handle

$

$

Not available

20

Lawn-Boy 93-7380

Anchor-Cable

$15.99

$

In Stock, only 2 left!

0

21

Lawn-Boy 612824

Starter-Clip Eat

$4.99

$

In Stock, Qty 6

0

25

Lawn-Boy 93-3653

Guard-Handle
(Superseded to 104-1013)

$

$

Not available
