104-2489 - Toro Blower Assembly for 44" Vac/Baggers Blower Assembly Parts Diagram

Blower Assembly for 44" Vac/Baggers

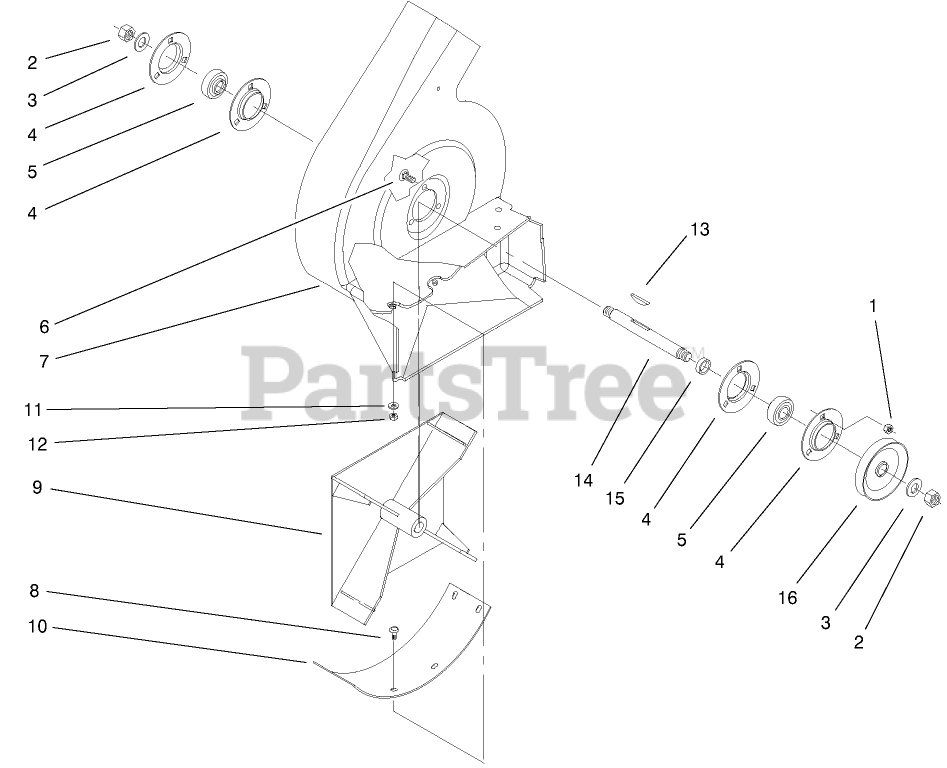

Blower Assembly Parts Diagram

  • Title

1

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

2

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 17

0

3

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 251-341

FLANGE

$20.99

$

In Stock, only 2 left!

0

5

Toro 251-288

BEARING-BALL

$113.99

$

In Stock, only 3 left!

0

6

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 5

0

7

Toro 93-8005

See Supercession: 110-6552
(Superseded to 110-6552)

$

$

Not available

8

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

9

Toro 79-4300-03

IMPELLER ASM

$623.99

$

Usually ships in 3-6 days

0

10

Toro 79-7170

See Supercession: 79-7170-03
(Superseded to 79-7170-03)

$40.99

$

In Stock, only 1 left!

0

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3296-56

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 3257-40

KEY

$9.49

$

Usually ships in 3-6 days

0

14

Toro 79-1470

SHAFT-BLOWER

$81.99

$

Usually ships in 3-6 days

0

15

Toro 92-9684

See Supercession: 7038
(Superseded to 7038)

$12.99

$

Usually ships in 3-6 days

0

16

Toro 79-1460

PULLEY-BLOWER

$87.99

$

Usually ships in 3-6 days

0
