104-8580 - Toro Electric Starter Kit for ProLine Mid-Size Mowers Battery Assembly Parts Diagram

Electric Starter Kit for ProLine Mid-Size Mowers

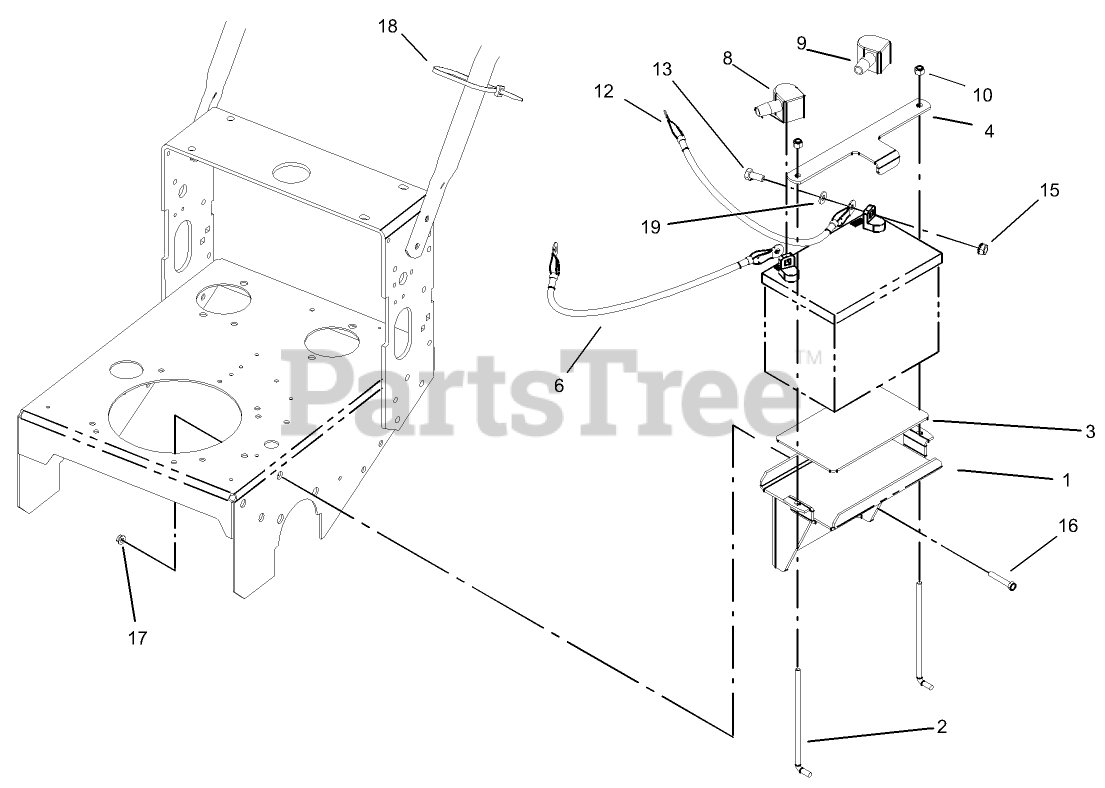

Battery Assembly Parts Diagram

  • Title

1

Toro 105-0804-01

See Supercession: 105-3150-01
(Superseded to 105-3150-01)

$130.99

$

Usually ships in 3-6 days

0

2

Toro 104-8567

HOLDOWN-BATTERY

$31.99

$

In Stock, only 2 left!

0

3

Toro 62-4300

PAD-SKID, ANTI

$22.99

$

Usually ships in 3-6 days

0

4

Toro 104-8568-03

PLATE-HOLD DOWN, BATTERY

$78.99

$

Usually ships in 3-6 days

0

6

Toro 105-0836

CABLE-BATTERY, BLACK

$22.99

$

Usually ships in 3-6 days

0

8

Toro 77-0980

BOOT-TERMINAL, BLACK

$

$

Not available

9

Toro 77-0981

BOOT-TERMINAL, RED

$18.99

$

Usually ships in 3-6 days

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 100-6457

CABLE-BATTERY, RED

$

$

Not available

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 32149-1

NUT-KEPS

$6.99

$

In Stock, only 2 left!

0

16

Toro 3234-22

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

17

Toro 32128-23

NUT-HF

$2.49

$

In Stock, Qty 20+

0

18

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

19

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0
