104-8580 - Toro Electric Starter Kit for ProLine Mid-Size Mowers Starter and Solenoid Assembly Parts Diagram

Electric Starter Kit for ProLine Mid-Size Mowers

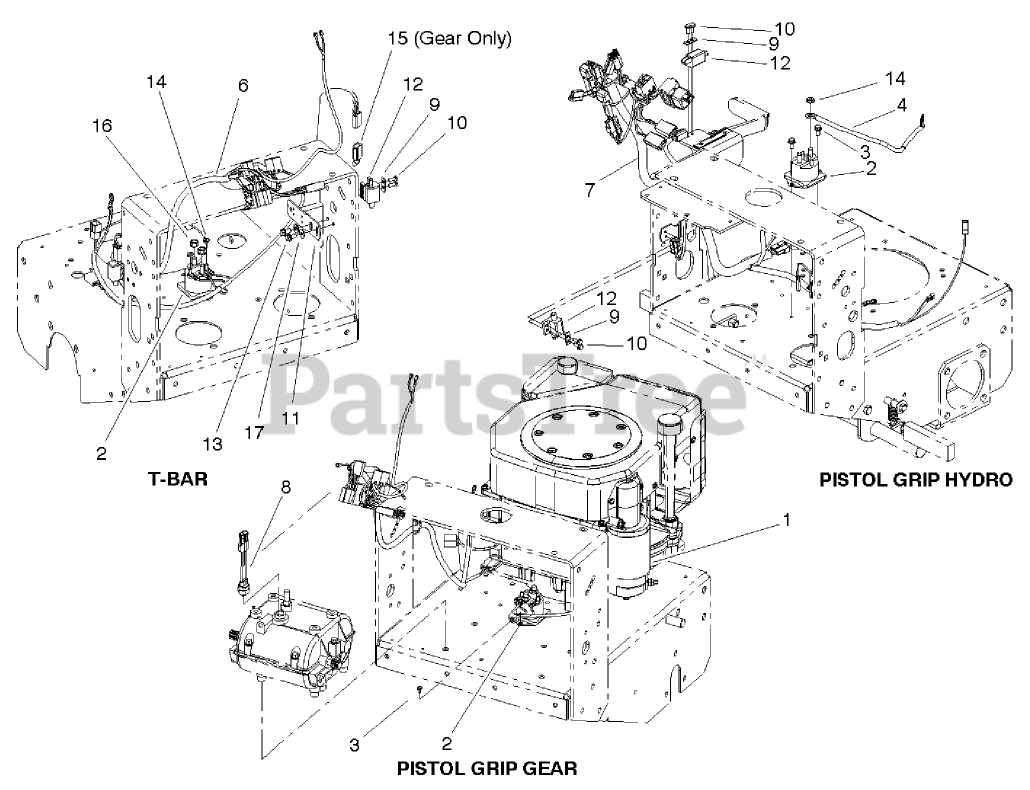

Starter and Solenoid Assembly Parts Diagram

  • Title

1

Toro 77-5070

See Supercession: 74-0980
(Superseded to 74-0980)

$

$

Not available

2

Toro 28-4210

SOLENOID

$85.99

$

In Stock, only 4 left!

0

3

Toro 12-3270

SCREW

$3.99

$

In Stock, only 2 left!

0

4

Toro 28-3891

WIRE-SOLENOID/STARTER

$30.99

$

Usually ships in 3-6 days

0

6

Toro 105-2687

HARNESS-WIRE (T-BAR)

$561.99

$

Usually ships in 3-6 days

0

7

Toro 106-0875

HARNESS-WIRE

$

$

Not available

8

Toro 72-4310

SWITCH-BALL

$112.99

$

Usually ships in 3-6 days

0

9

Toro 82-4570

PLATE-SWITCH

$15.99

$

Usually ships in 3-6 days

0

10

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

11

Toro 82-4580-03

BRACKET-NEUTRAL

$

$

Not available

12

Toro 65-7410

See Supercession: 1-513051
(Superseded to 1-513051)

$21.99

$

In Stock, Qty 13

0

13

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

14

Toro 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

15

Toro 105-2688

WIRE-JUMPER ASM

$46.99

$

Usually ships in 3-6 days

0

16

Toro 32149-1

NUT-KEPS

$6.99

$

In Stock, only 2 left!

0

17

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
