10424 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) HOUSING ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

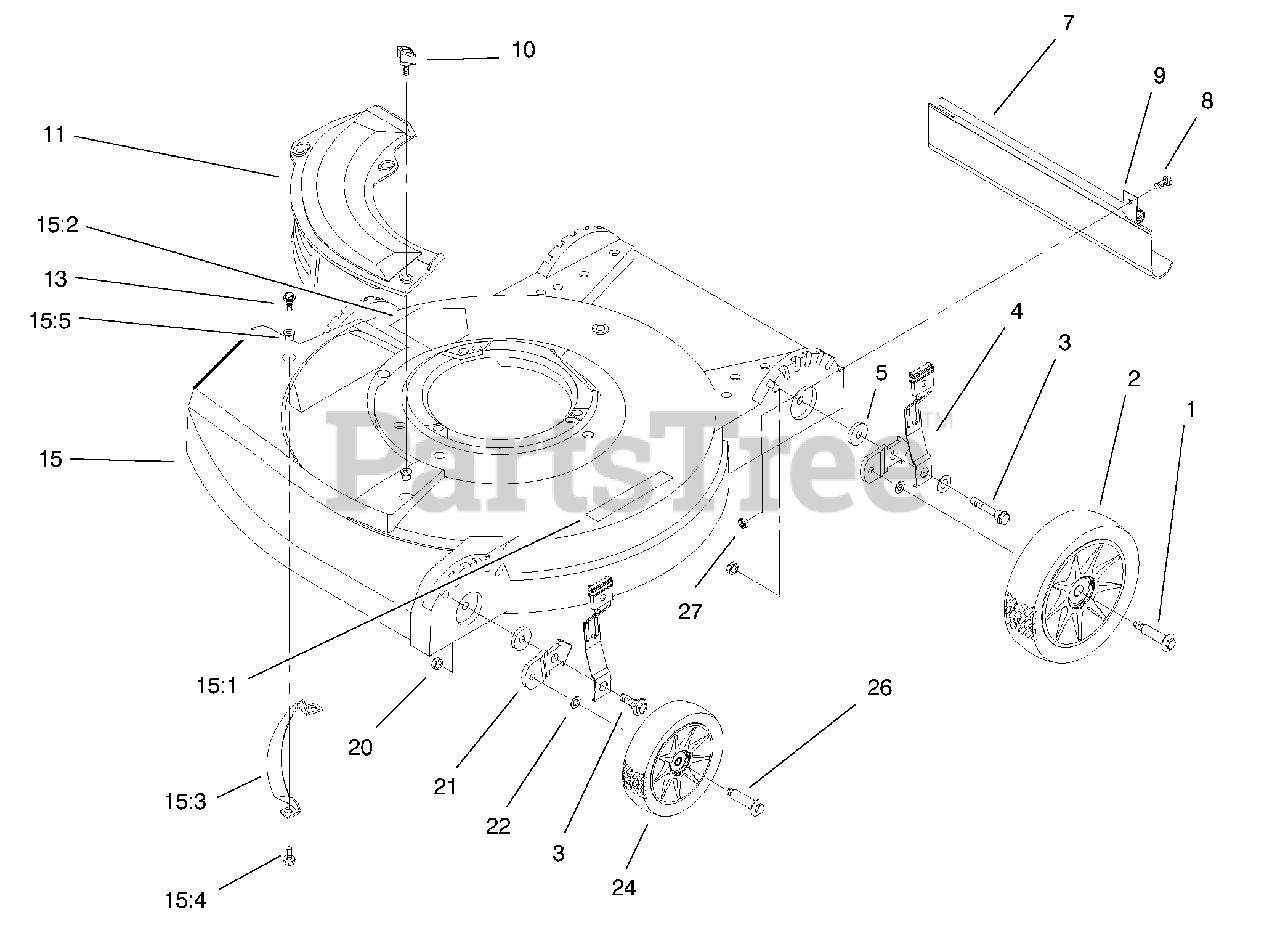

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 614650

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 684777

8" WHEEL & TIRE ASM

$64.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 610646

BOLT

$8.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 153444

SPRING ARM ASM

$

$

Not available

5

Lawn-Boy 608834

WASHER

$15.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 93-7368

SHIELD - TRAILING

$46.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 609891

Screw
(Superseded to 700138)

$

$

Not available

9

Lawn-Boy 93-7693

CLAMP - SHIELD

$16.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 98-8332

KNOB

$5.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 92-8630

PLATE-MULCH

$

$

Not available

13

Lawn-Boy 614677

SCREW-SEMS

$4.99

$

In Stock, only 3 left!

0

15

Lawn-Boy 99-1562

HOUSING-ASSY-10425 (SERVICES)

$

$

Not available

15:1

Lawn-Boy 93-7250

DECAL-WARNING

$16.99

$

Usually ships in 3-6 days

0

15:2

Lawn-Boy 43-8480

DECAL-DANGER

$7.99

$

In Stock, only 3 left!

0

15:3

Lawn-Boy 608175

BAR-TOE

$85.99

$

Usually ships in 3-6 days

0

15:4

Lawn-Boy 46-6811

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

15:5

Lawn-Boy 94-1610

GROMMET - PLASTIC

$1.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 608833-03

BRACKET-WHEEL HEIGHT

$31.99

$

In Stock, only 3 left!

0

22

Lawn-Boy 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 684776

WHEEL & TIRE ASM

$41.99

$

In Stock, Qty 10

0

26

Lawn-Boy 92-1099

BOLT-SHOULDER

$9.49

$

In Stock, Qty 6

0

27

Lawn-Boy 3296-52

NUT-LOCK NI

$7.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 95-7052

PLATE-OPENING, CHUTE

Note: Not illustrated

$

$

Not available
