105-1293 - Toro GTS 150 to 200 Conversion Kit (1995 - 1997) Air Cleaner Assembly Engine Gts-200 Parts Diagram

GTS 150 to 200 Conversion Kit

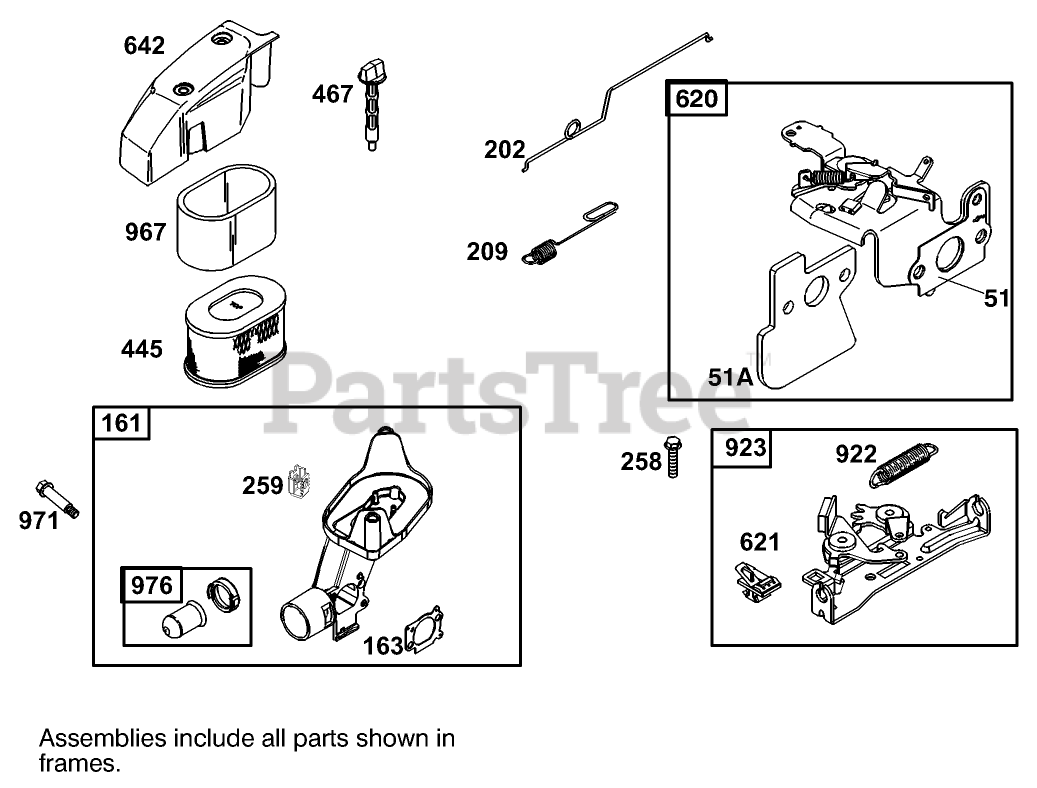

Air Cleaner Assembly Engine Gts-200 Parts Diagram

  • Title

51

Toro 99-0968

GASKET-INTAKE

$

$

Not available

51A

Toro 99-0978

SPACER-CARBURETOR

$53.99

$

Usually ships in 3-6 days

0

161

Toro 99-0979

BASE-CLEANER, AIR

$

$

Not available

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Gasket Set-Part No. 100-5035

$4.49

$

In Stock, Qty 20+

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Carburetor Kit-Part No. 100-5036

$4.49

$

In Stock, Qty 20+

0

202

Toro 99-0981

LINK-GOVERNOR

$

$

Not available

209

Toro 99-0982

SPRING-GOVERNOR

$16.99

$

Usually ships in 3-6 days

0

258

Toro 99-0983

SCREW-HH

$

$

Not available

259

Toro 99-0984

GROMMET(BRKT.-CLAMP)

$

$

Not available

445

Toro 98-9212

ELEMENT-FILTER, AIR

$43.99

$

In Stock, only 1 left!

0

467

Toro 98-9208

SCREW-COVER, AIR CLEANER

$

$

Not available

620

Toro 99-0985

DISCONTINUED

$

$

Not available

621

Toro 99-0986

See Supercession: 77-8010
(Superseded to 77-8010)

$

$

Not available

642

Toro 98-9207

DISCONTINUED

$

$

Not available

922

Toro 99-0987

DISCONTINUED

$

$

Not available

923

Toro 99-0988

See Supercession: 77-9460
(Superseded to 77-9460)

$

$

Not available

967

Toro 99-0989

WRAP-FOAM, PRE-FILTER

$5.49

$

In Stock, Qty 20+

0

971

Toro 99-0990

DISCONTINUED

$

$

Not available

976

Toro 99-0991

PRIMER

$4.49

$

In Stock, Qty 20+

0
