105-1293 - Toro GTS 150 to 200 Conversion Kit (1995 - 1997) Crankshaft Assembly Engine Gts-200 Parts Diagram

GTS 150 to 200 Conversion Kit

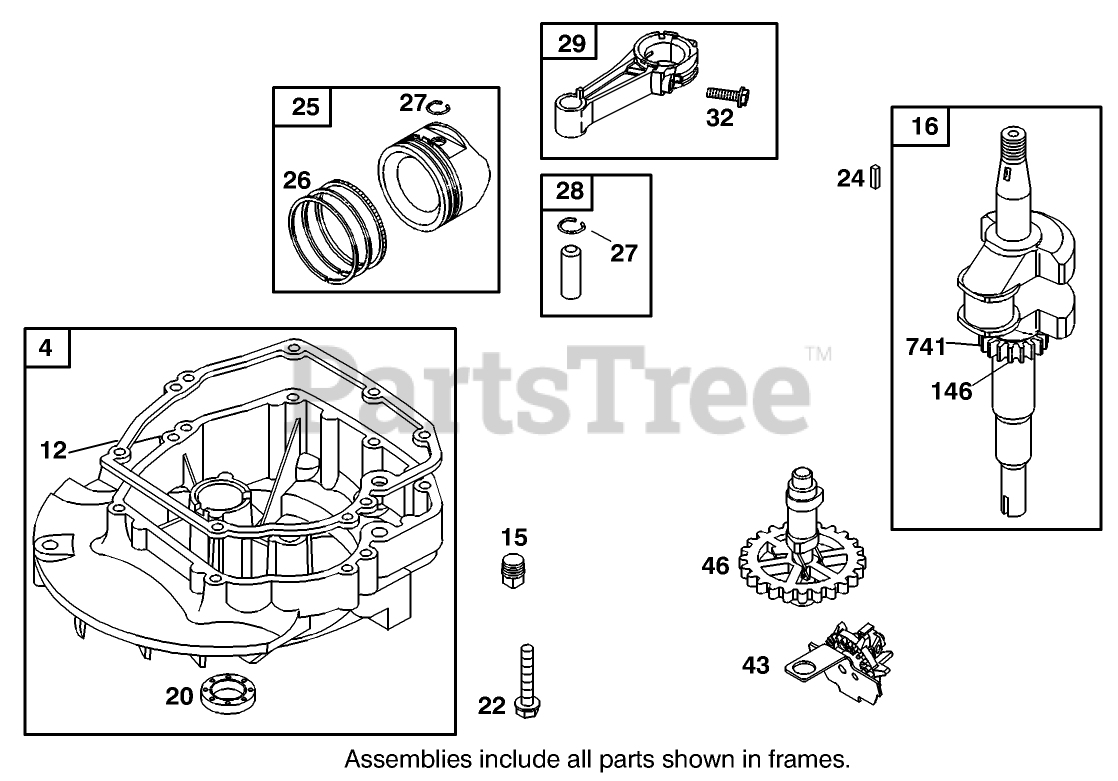

Crankshaft Assembly Engine Gts-200 Parts Diagram

  • Title

4

Toro 99-0952

SUMP-ENGINE

$280.99

$

Usually ships in 3-6 days

0

12

Toro 99-0953

GASKET-CRANKCASE

Note: Included in Gasket Set-Part No. 100-5035

$

$

Not available

15

Toro 99-0954

PLUG-DRAIN, OIL

$

$

Not available

16

Toro 98-9214

CRANKSHAFT

$

$

Not available

20

Toro 77-7570

SEAL-OIL

Note: Included in Gasket Set-Part No. 100-5035

$28.99

$

In Stock, only 1 left!

0

22

Toro 99-0956

SCREW-HEX

$

$

Not available

24

Toro 77-8340

KEY - FLYWHEEL

$8.49

$

Usually ships in 3-6 days

0

25

Toro 99-0958

PISTON ASM

$

$

Not available

26

Toro 99-0959

DISCONTINUED

$

$

Not available

27

Toro 99-0960

LOCK-PIN, PISTON

$

$

Not available

28

Toro 99-0961

PIN-PISTON

$

$

Not available

29

Toro 99-0962

ROD-CONNECTING

$

$

Not available

32

Toro 99-0963

SCREW-ROD, CONNECTING

$

$

Not available

43

Toro 99-0964

DISCONTINUED

$

$

Not available

46

Toro 99-0965

GEAR-CAM

$

$

Not available

146

Toro 99-0966

KEY-TIMING
(Superseded to 690979)

$5.49

$

Usually ships in 3-6 days

0

741

Toro 99-0967

GEAR-TIMING

$

$

Not available
