105-6176 - Toro 62" Mower Service Kit for 200 Series Z Master (SN: 240000001 - 240999999) (2004) Deck Spindle Assembly Parts Diagram

62" Mower Service Kit for 200 Series Z Master

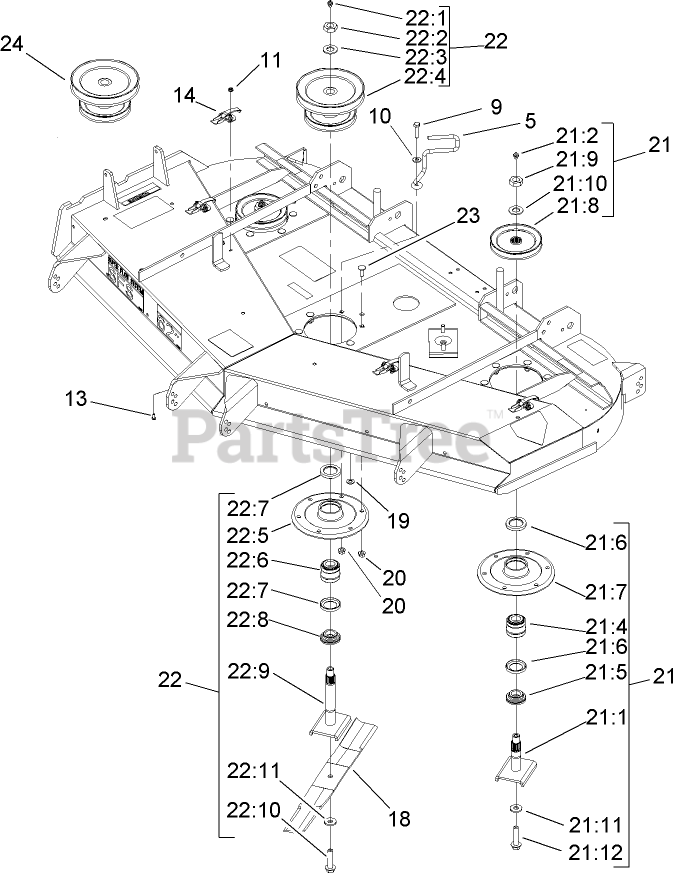

Deck Spindle Assembly Parts Diagram

  • Title

5

Toro 99-8933

GUIDE-BELT

$94.99

$

In Stock, only 1 left!

0

9

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, only 4 left!

0

13

Toro 3290-321

SCREW-HWH

$4.99

$

Usually ships in 3-6 days

0

14

Toro 249-21

CLAMP-SLOTTED

$22.99

$

In Stock, only 2 left!

0

18

Toro 44-6250

See Supercession: 44-6250-03
(Superseded to 44-6250-03)

$25.99

$

In Stock, Qty 20+

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

21

Toro 99-4640

OUTER SPINDLE ASM

$501.99

$

Usually ships in 3-6 days

0

21:1

Toro 27-0920

SHAFT

$185.99

$

Usually ships in 3-6 days

0

21:2

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

21:4

Toro 46-8530

BEARING ASM

$125.99

$

In Stock, Qty 17

0

21:5

Toro 27-0950

SPACER

$35.99

$

In Stock, only 2 left!

0

21:6

Toro 253-139

SEAL-OIL

$14.99

$

In Stock, Qty 20+

0

21:7

Toro 61-4160

HOUSING-SPINDLE

$153.99

$

In Stock, only 4 left!

0

21:8

Toro 99-4614

PULLEY AND HUB ASM

$175.99

$

Usually ships in 3-6 days

0

21:9

Toro 32146-20

NUT-HEX

$4.49

$

In Stock, Qty 16

0

21:10

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

21:11

Toro 1-513435

WASHER-SPRING

$6.49

$

In Stock, Qty 20+

0

21:12

Toro 92-5816

BOLT-BLADE

$8.49

$

In Stock, Qty 20+

0

22

Toro 105-1688

SPINDLE HOUSING ASM

$592.99

$

In Stock, only 1 left!

0

22:1

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

22:2

Toro 32146-20

NUT-HEX

$4.49

$

In Stock, Qty 16

0

22:3

Toro 92-5836

WASHER

$6.49

$

In Stock, Qty 20+

0

22:4

Toro 99-4939

PULLEY AND HUB ASM

$151.99

$

In Stock, only 1 left!

0

22:5

Toro 61-4160

HOUSING-SPINDLE

$153.99

$

In Stock, only 4 left!

0

22:6

Toro 46-8530

BEARING ASM

$125.99

$

In Stock, Qty 17

0

22:7

Toro 253-139

SEAL-OIL

$14.99

$

In Stock, Qty 20+

0

22:8

Toro 27-0950

SPACER

$35.99

$

In Stock, only 2 left!

0

22:9

Toro 105-1686

SPINDLE SHAFT ASM

$208.99

$

In Stock, Qty 5

0

22:10

Toro 92-5816

BOLT-BLADE

$8.49

$

In Stock, Qty 20+

0

22:11

Toro 1-513435

WASHER-SPRING

$6.49

$

In Stock, Qty 20+

0

23

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

24

Toro 100-4307

PULLEY/HUB ASM

Note: For use only on Liquid Cooled and Electronic Fuel Injection (EFI) Models prior to 230000001 and all Models after 230000001.

$248.99

$
