105 - Husqvarna Automower Robotic Lawn Mower (2016-02) CHASSIS UPPER Parts Diagram

Automower Robotic Lawn Mower

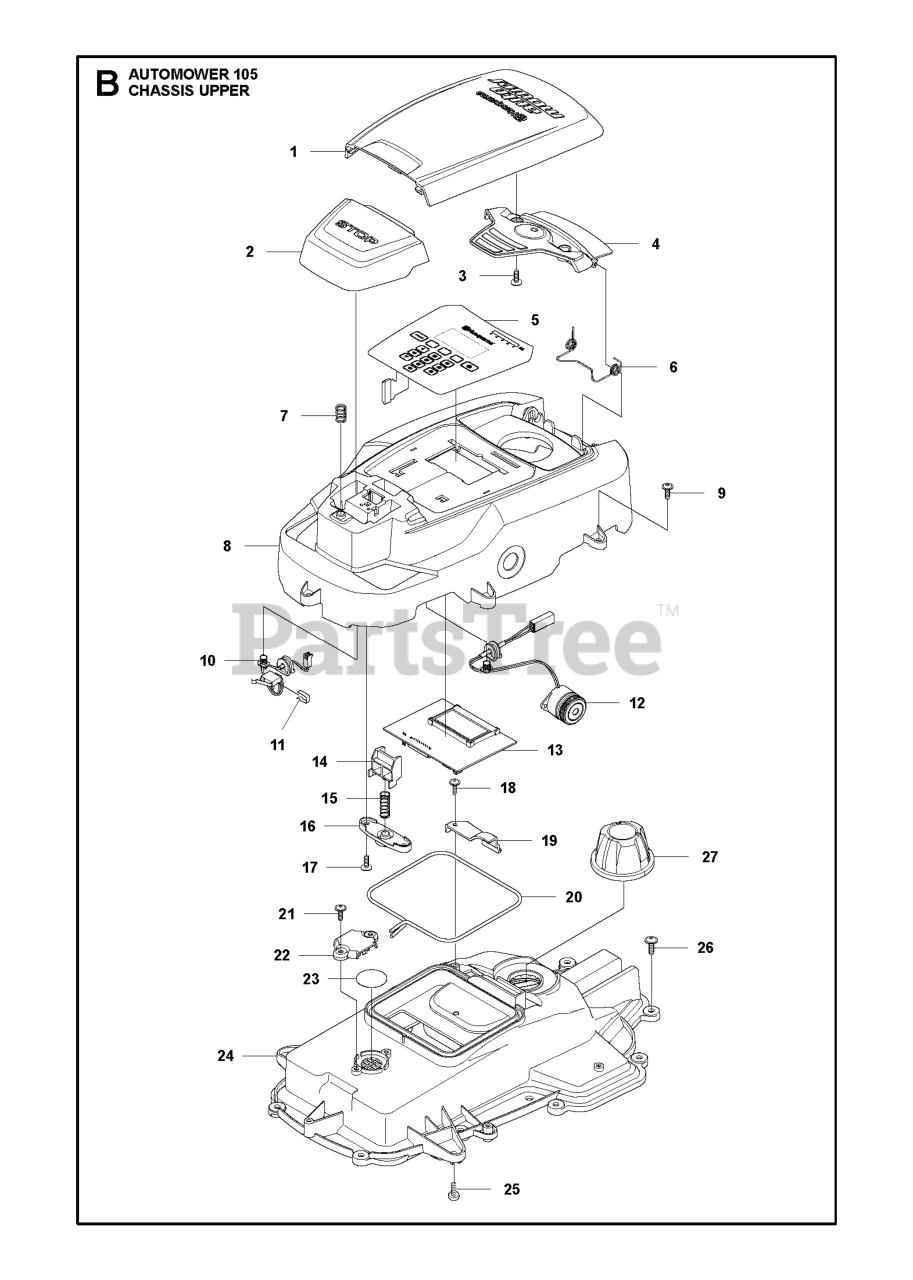

CHASSIS UPPER Parts Diagram

  • Title

23

Husqvarna 577753701

KIT AIR FILTER KIT 305 - 10 PC

$59.99

$

Usually ships in 3-10 days

0

13

Husqvarna 588441901

PRINTED CIRCUIT ASSY MMI BOARD

$125.99

$

Usually ships in 3-10 days

0

6

Husqvarna 576242101

$

$

Currently unavailable

12

Husqvarna 574475901

BUZZER DISPLAY COVER

$33.99

$

Usually ships in 3-10 days

0

21

Husqvarna 575543314

SCREW 14MM

$3.99

$

In Stock, Qty 8

0

1

Husqvarna 588797603

NEEDS DESCRIPTION

Note: Grey

$

$

Currently unavailable

26

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 535089801

CLIP RETAINER

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574464701

$

$

Currently unavailable

15

Husqvarna 576242201

SPRING LOCK STOP BUTTON

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 575543314

SCREW 14MM

Note: Grey (14 mm)

$3.99

$

In Stock, Qty 8

0

4

Husqvarna 574377901

$

$

Currently unavailable

18

Husqvarna 575543314

SCREW 14MM

Note: Grey (14 mm)

$3.99

$

In Stock, Qty 8

0

27

Husqvarna 579742401

$

$

Currently unavailable

25

Husqvarna 576213901

SCREW ITXPANM M5X12 8.8 ZP-BC
(Superseded to 590740201)

$

$

Not available

16

Husqvarna 575415801

SPRING HOLDER STOP BUTTON

$

$

Not available

7

Husqvarna 574487001

SPRING STOP BUTTON

$5.99

$

In Stock, only 1 left!

0

19

Husqvarna 576053901

COVER HEIGHT INDICATOR

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 574480301

SWITCH STOP BUTTON

$

$

Not available

5

Husqvarna 575779401

$

$

Currently unavailable

22

Husqvarna 576697001

COVER AIR FILTER

Note: Grey (14 mm)

$

$

Not available

17

Husqvarna 575543314

SCREW 14MM

Note: Grey (14 mm)

$3.99

$

In Stock, Qty 8

0

9

Husqvarna 575543314

SCREW 14MM

Note: Grey (14 mm)

$3.99

$

In Stock, Qty 8

0

8

Husqvarna 577752802

$

$

Currently unavailable

20

Husqvarna 577753601

Note: (10 pcs, Ø4 mm) Note: For warranty claims, please use part number for 1 pcs, see SB

$

$

Currently unavailable

14

Husqvarna 575409001

LOCK STOP BUTTON

$

$

Not available

24

Husqvarna 577752902

KIT CHASSIS UPPER KIT INCL. SE

Note: 10 pcs

$

$

Not available
