10528 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE AND BLADE ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

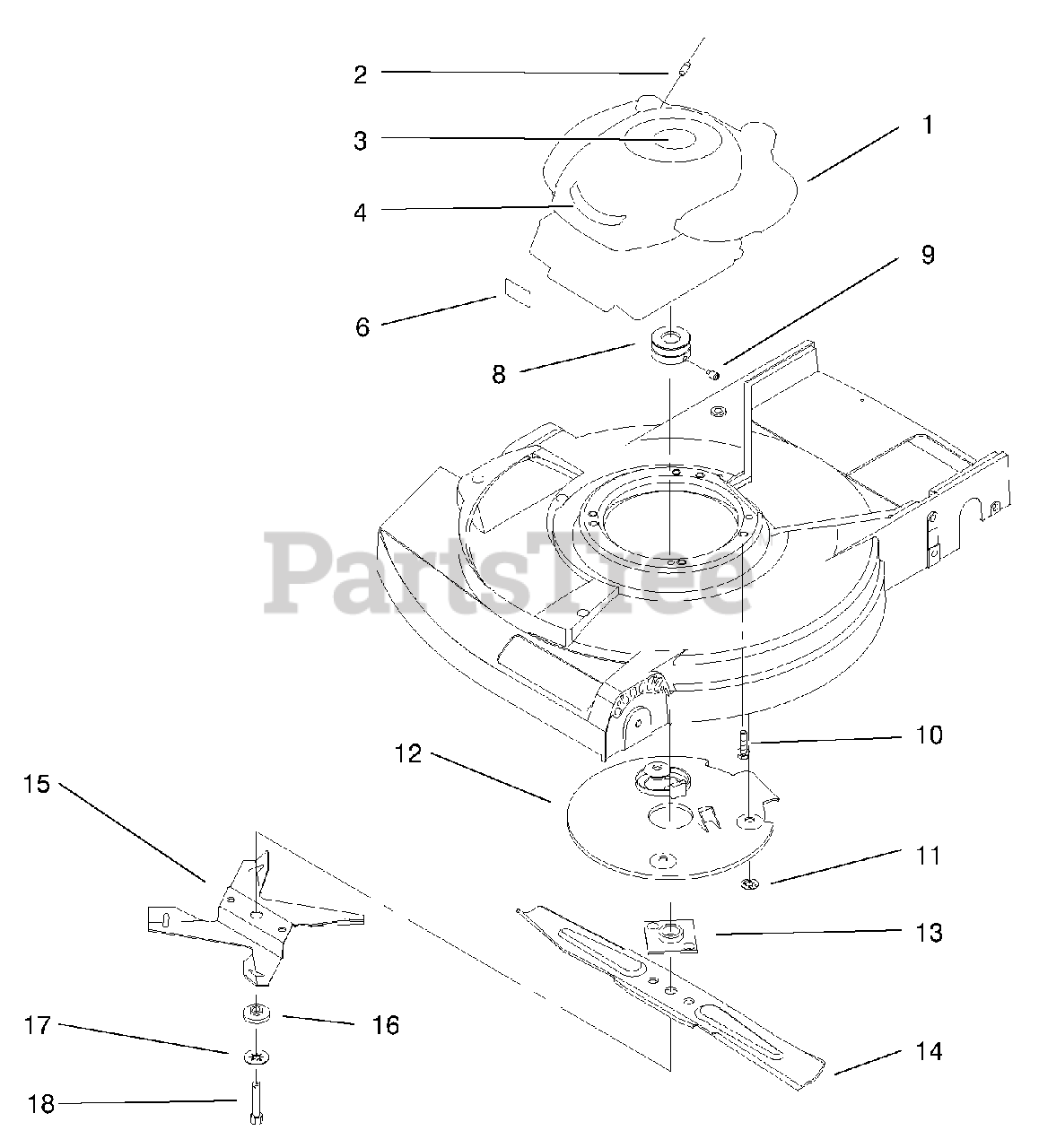

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Engine-6.5HP

$

$

Not available

2

Lawn-Boy 92-1701

Rope-Stop
(Superseded to 2210-316)

$8.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 100-8758

Decal-Recoil,6.5 HP Ohv

$

$

Not available

4

Lawn-Boy 98-1593

Applique

$33.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 65-2690

Decal-Surface, Hot

$5.49

$

In Stock, only 4 left!

0

8

Lawn-Boy 95-1878

Pulley

$72.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 104-0214

Screw-Set,Cone Point
(Superseded to 105-8875)

$12.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 95-1727

Screw-Taptite w/Patch

$2.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 92-4877

Push Nut
(Superseded to 107-3154)

$1.49

$

In Stock, Qty 5

0

12

Lawn-Boy 100-4382

Shield-Grass

$116.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 100-2899

Plate & Collar ASM

$33.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 612543

Blade
(Superseded to 612543-03)

$37.99

$

In Stock, Qty 19

0

15

Lawn-Boy 99-6351-03

Fan-Mulching

$42.99

$

In Stock, only 3 left!

0

16

Lawn-Boy 95-1712

Spacer-Blade

$

$

Not available

17

Lawn-Boy 3253-22

Washer-Lock/Sp

$2.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 100-5019

Bolt-Blade

$

$

Not available
