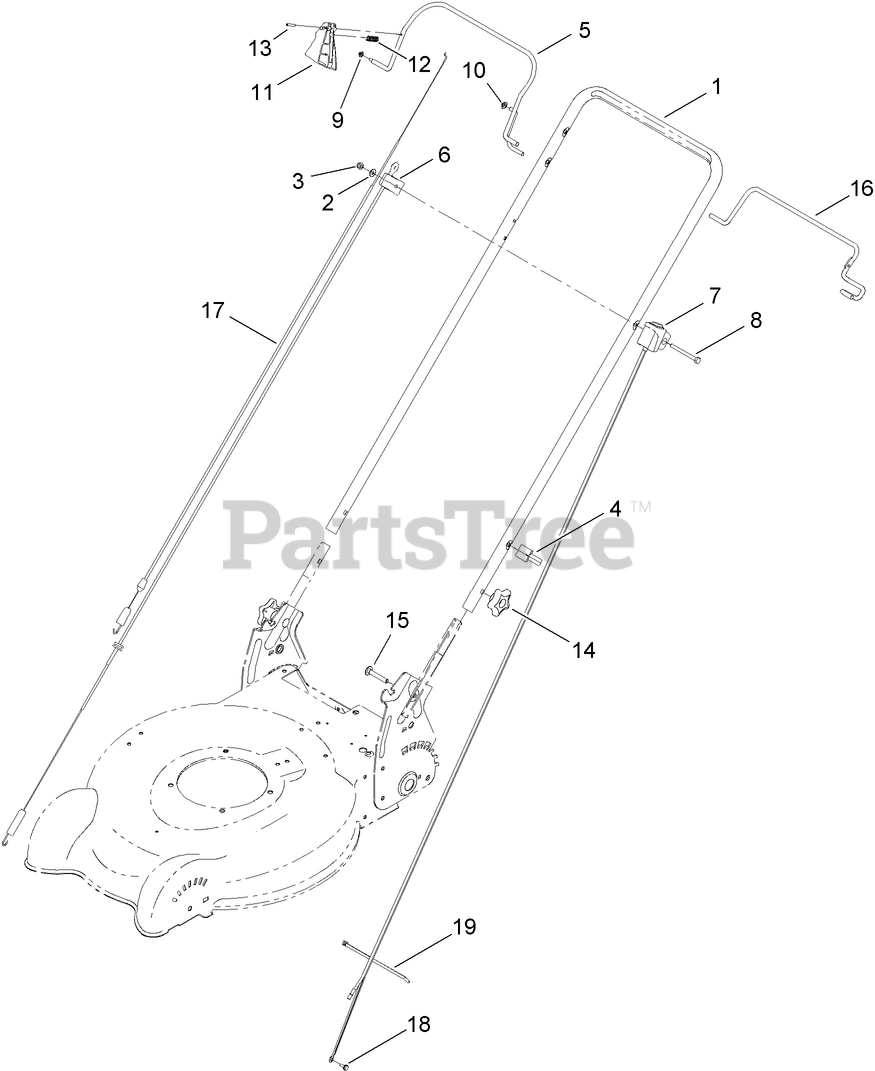

10605 - Lawn-Boy 20" Walk-Behind Mower (SN: 312000001 - 312999999) (2012) Handle Assembly Parts Diagram

20" Walk-Behind Mower

Handle Assembly Parts Diagram

  • Title

1

Lawn-Boy 120-1948-05

HANDLE

$

$

Not available

2

Lawn-Boy 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 114-7988

GUIDE-CABLE

$3.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 119-7004-02

BAIL-BRAKE

$

$

Not available

6

Lawn-Boy 119-7005

CABLE-BRAKE

$46.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 117-5975

SWITCH HOUSING ASM

$22.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 321-14

SCREW-HH

$5.49

$

In Stock, Qty 7

0

9

Lawn-Boy 108-3629

NUT-PUSH

$0.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 119-3842

STOP-BAIL

$

$

Not available

12

Lawn-Boy 120-9479

SPRING-COMPRESSION
(Superseded to 117-7331)

$

$

Not available

13

Lawn-Boy 933156

PIN-ROLL

$1.49

$

In Stock, only 3 left!

0

14

Lawn-Boy 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 9

0

16

Lawn-Boy 112-8835-02

BAIL-TRACTION, 2-BAIL FLAT

$38.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 112-8817

CABLE-TRACTION

$39.99

$

In Stock, Qty 8

0

18

Lawn-Boy 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5

0
