10654 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) HP 2 BAIL HANDLE ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

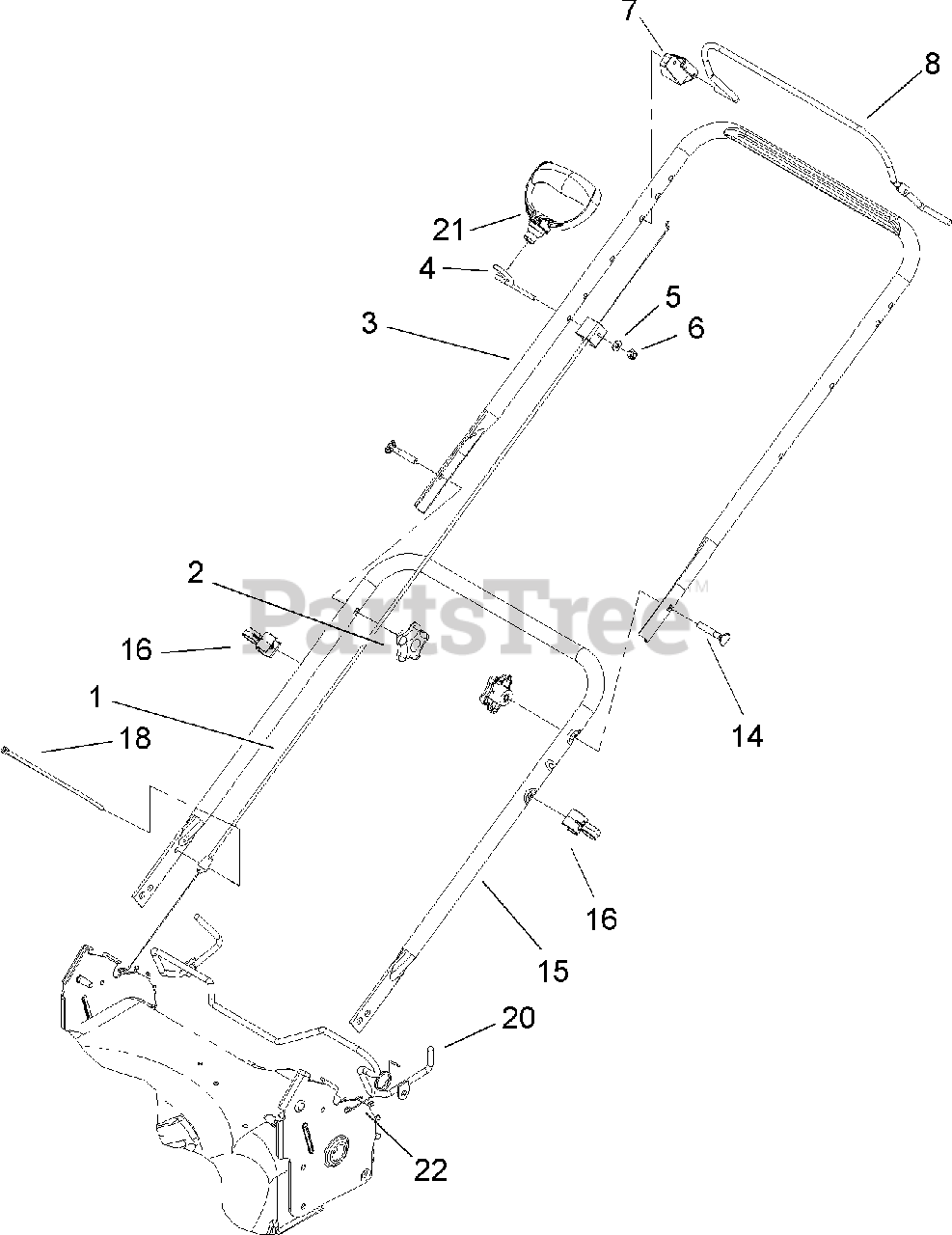

HP 2 BAIL HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 107-1903

CABLE-BRAKE, HP

$77.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 106-4161

KNOB-HANDLE

$5.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 104-8680-05

Handle-Upper

$84.99

$

In Stock, only 2 left!

0

4

Lawn-Boy 107-1935

GUIDE-ROPE

$10.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 107-0757

STOP-PIVOT

$5.99

$

In Stock, Qty 12

0

8

Lawn-Boy 106-3991

BAIL-BRAKE

$

$

Not available

14

Lawn-Boy 92-2260

SCREW-HANDLE

$4.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 107-0784-05

HANDLE-LOWER
(Superseded to 112-6440-05)

$76.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 106-6805

Guide-Cable
(Superseded to 114-7988)

$3.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 614249

STRAP-TIE

$1.49

$

In Stock, Qty 5

0

20

Lawn-Boy 107-0768

RELEASE LEVER ASM

$

$

Not available

21

Lawn-Boy 106-8345

HANDLE-RECOIL
(Superseded to 110-1778)

$34.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 107-7472

SPRING-TORSION

$

$

Not available
