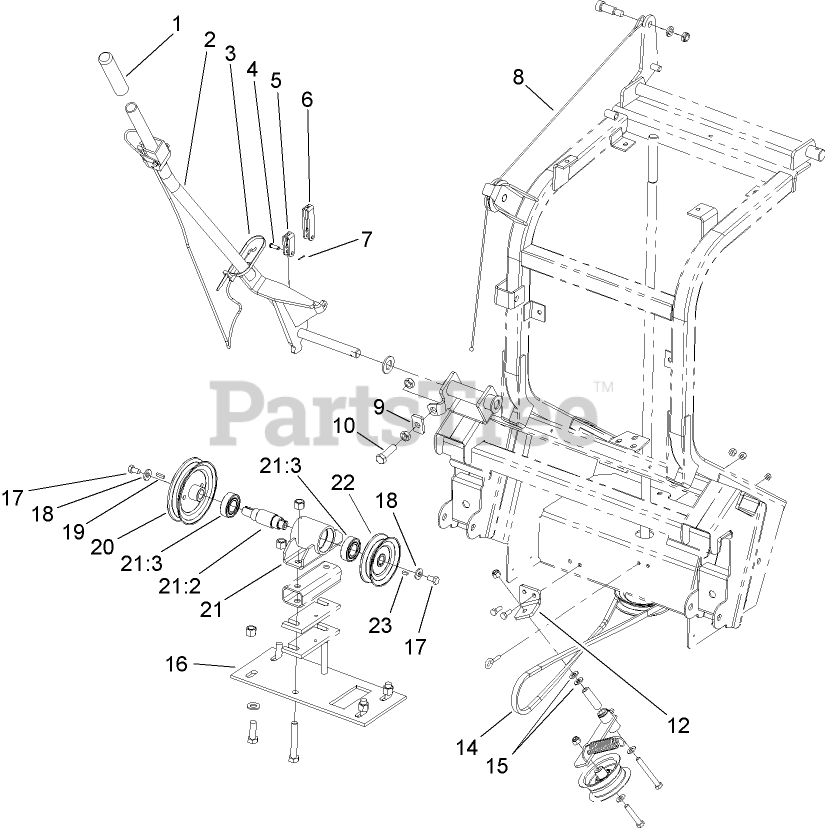

107-7650 - Toro Conversion Kit for Z200 to Z500 DFS Bagger Handle Assembly Parts Diagram

Conversion Kit for Z200 to Z500 DFS Bagger

Handle Assembly Parts Diagram

  • Title

1

Toro 104-9838

GRIP-FOAM

$6.49

$

In Stock, Qty 20+

0

2

Toro 106-8955-03

DUMP ARM ASM

$367.99

$

Usually ships in 3-6 days

0

3

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

4

Toro 9321204

PIN-CLEVIS

$5.49

$

Usually ships in 3-6 days

0

5

Toro 108145

CLEVIS-SHORT

$45.99

$

Usually ships in 3-6 days

0

6

Toro 108143

CLEVIS-LONG

Note: For Liquid Cooled Models only.

$60.99

$

Usually ships in 3-6 days

0

7

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 10

0

8

Toro 107-3078

CABLE

$

$

Not available

9

Toro 107-3091

PLATE-STOP

$

$

Not available

10

Toro 325-7

SCREW-HH

$2.49

$

In Stock, Qty 15

0

11

Toro 107-3082

TEMPLATE

Note: Not illustrated

$

$

Not available

12

Toro 107-7698-03

BRACKET, IDLER MOUNT

$

$

Not available

13

Toro 107-1771

TEMPLATE

Note: Not illustrated

$

$

Not available

14

Toro 107-1753

V-BELT

$118.99

$

Usually ships in 3-6 days

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 107-1774-03

PLATE-SUPPORT

$

$

Not available

17

Toro 323-34

SCREW-HH

$6.99

$

In Stock, only 1 left!

0

18

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

19

Toro 10-8040

KEY-SQUARE

$3.49

$

In Stock, Qty 9

0

20

Toro 107-1772

PULLEY-DRIVEN

$

$

Not available

21

Toro 107-1752

HOUSING ASM

$

$

Not available

21:2

Toro 107-1751

SHAFT-PULLEY, DRIVEN

$

$

Not available

21:3

Toro 104-6325

See Supercession: 116-0720
(Superseded to 116-0720)

$26.99

$

In Stock, Qty 20+

0

22

Toro 105-7782

PULLEY-DRIVEN

$

$

Not available

23

Toro 107-1778

KEY-SQUARE

$

$

Not available
