108-2162 - Toro Roller Striping Kit for Z Master Turbo Force Mowers Roller Striping Assembly No. 108-2162 Parts Diagram

Roller Striping Kit for Z Master Turbo Force Mowers

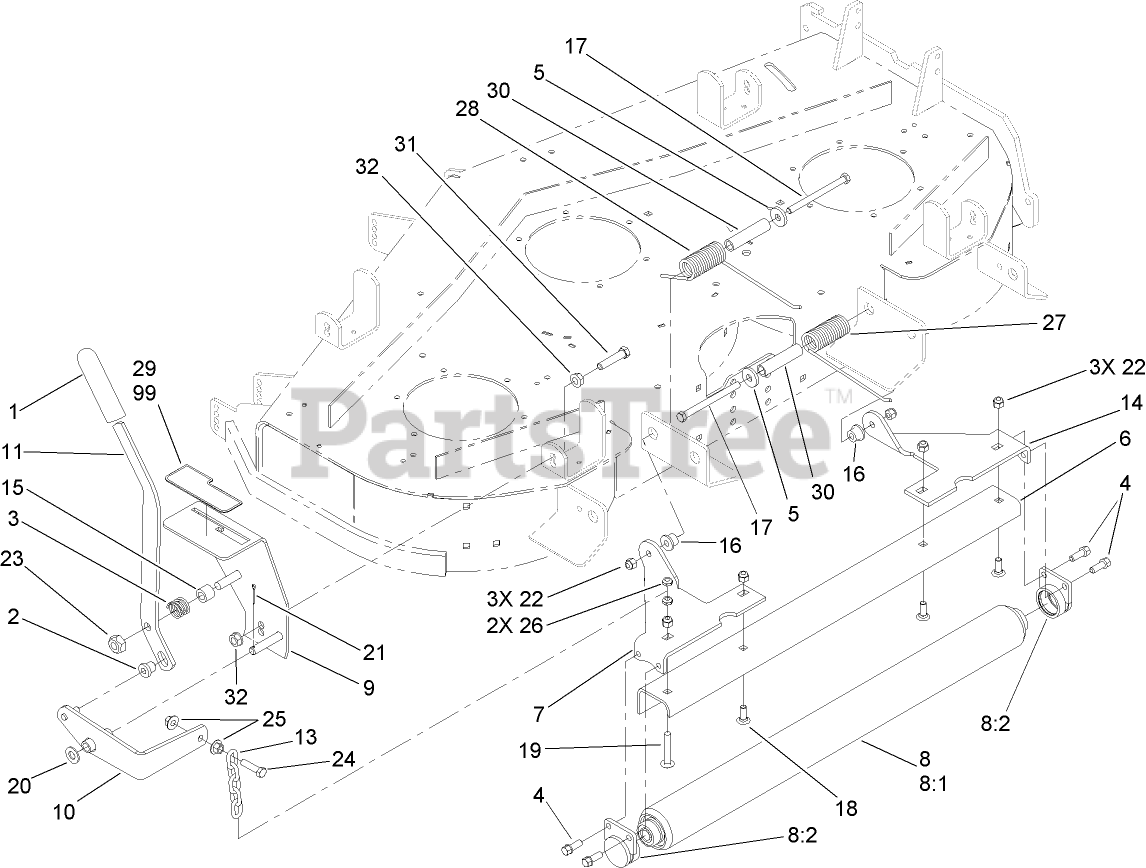

Roller Striping Assembly No. 108-2162 Parts Diagram

  • Title

1

Toro 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 17

0

2

Toro 65-5950

BUSHING-PULLEY

$5.99

$

In Stock, Qty 20+

0

3

Toro 87-3660

SPRING-COMPRESSION

$17.99

$

Usually ships in 3-6 days

0

4

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

5

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

6

Toro 108-2154-03

SCRAPER-ROLLER

$190.99

$

Usually ships in 3-6 days

0

7

Toro 108-2155-01

MOUNT-ROLLER, LH

$117.99

$

Usually ships in 3-6 days

0

8

Toro 108-2199

ROLLER ASM

$809.99

$

Usually ships in 3-6 days

0

8:1

Toro 108-2157

ROLLER-STRIPER

$362.99

$

Usually ships in 3-6 days

0

8:2

Toro 108-2198

HUB ASM

$339.99

$

Usually ships in 3-6 days

0

9

Toro 108-2219-01

STRIPER PLATE ASM

$173.99

$

Usually ships in 3-6 days

0

10

Toro 108-2223-03

CRANK ASM

$148.99

$

Usually ships in 3-6 days

0

11

Toro 108-2225-03

LEVER

$54.99

$

Usually ships in 3-6 days

0

13

Toro 84-2451

CHAIN-STRAIGHT, 5 LINK

$12.99

$

Usually ships in 3-6 days

0

14

Toro 110-1505-01

MOUNT-ROLLER, RH

$117.99

$

Usually ships in 3-6 days

0

15

Toro 108-7244

SPACER

$

$

Not available

16

Toro 95-8803

BUSHING-FLANGE

$3.49

$

Usually ships in 3-6 days

0

17

Toro 323-38

SCREW-HH

$12.99

$

In Stock, Qty 20+

0

18

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

19

Toro 3231-33

SCREW-CARR

$5.99

$

Usually ships in 3-6 days

0

20

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3272-7

PIN-COTTER
(Superseded to 702947)

$65.99

$

Usually ships in 3-6 days

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 32146-13

NUT-HEX

$4.99

$

In Stock, only 2 left!

0

24

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

26

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 3 left!

0

27

Toro 108-4075

SPRING-TORSION

$39.99

$

Usually ships in 3-6 days

0

28

Toro 108-4076

SPRING-TORSION

$39.99

$

Usually ships in 3-6 days

0

29

Toro 108-7251

DECAL

$

$

Not available

30

Toro 1-633062

SPACER-WHEEL, LONG

$18.99

$

Usually ships in 3-6 days

0

31

Toro 324-8

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

32

Toro 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

99

Toro 108-4108

DECAL-STRIPER ROLLER, CE

$

$

Not available
