10800 B - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 049000001 - 049999999) (1994) BRAKE & MUFFLER ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

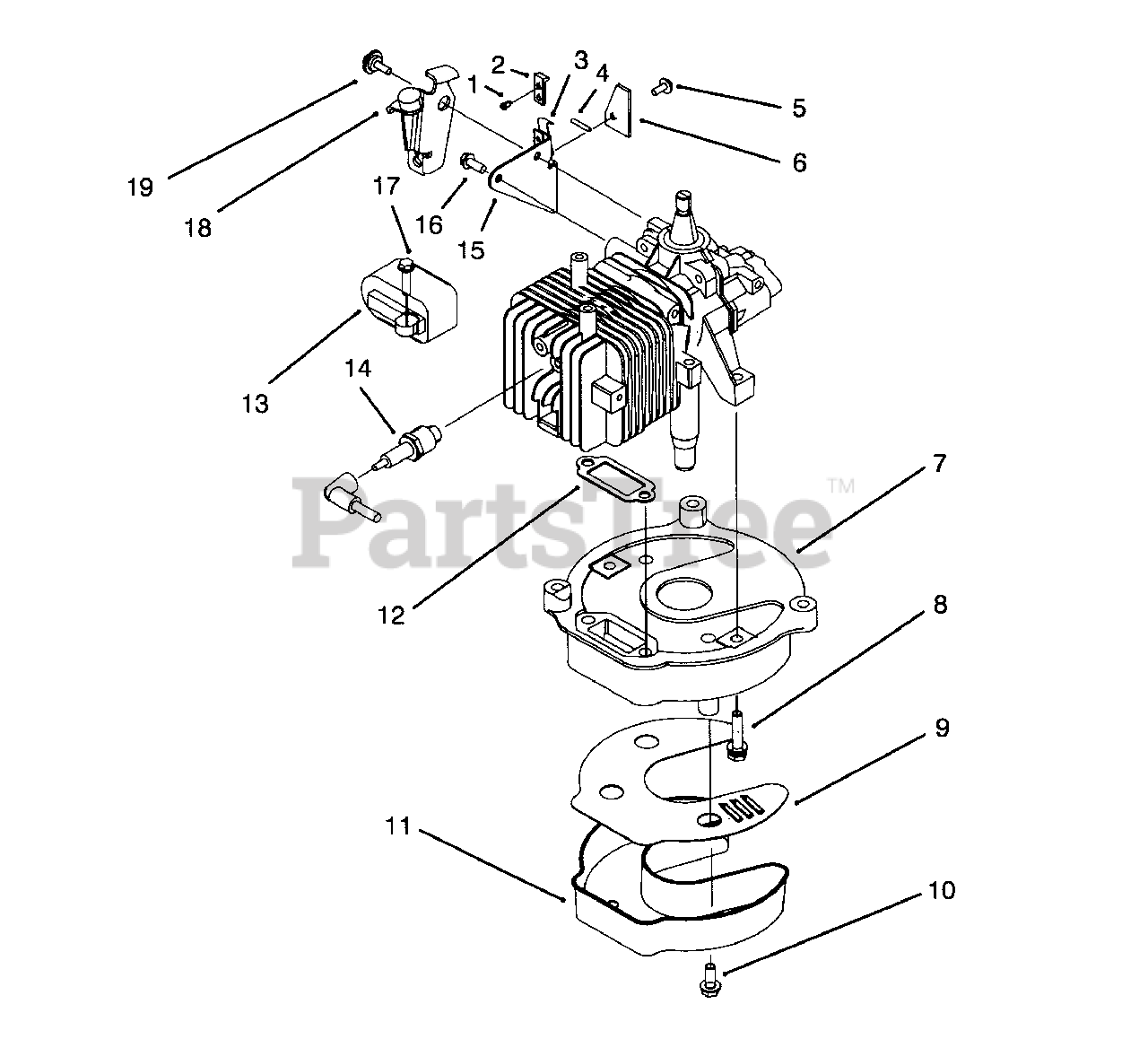

BRAKE & MUFFLER ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 3290-459

Rivet-Self Expanding

$2.49

$

In Stock, only 1 left!

0

2

Lawn-Boy 92-2925

Strap-Insulation

$2.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 60-9010

Strap-Ground

$15.99

$

In Stock, only 2 left!

0

4

Lawn-Boy 92-1156

Wire-Brake Switch Lead

$

$

Not available

5

Lawn-Boy 12-5450

Screw-Thread Forming

$10.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 53-4690

Stop-Ground Strap

$4.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 614654

Plate-Muffler

$

$

Not available

8

Lawn-Boy 607601

Screw

$4.99

$

In Stock, Qty 10

0

9

Lawn-Boy 614681

Baffle
(Superseded to 93-4343)

$15.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 609471

Screw

$5.49

$

In Stock, Qty 13

0

11

Lawn-Boy 614674

Cover-Muffler
(Superseded to 614674-03)

$

$

Not available

12

Lawn-Boy 92-6383

Gasket-Exhaust
(Superseded to 93-1233)

$2.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 92-1152

CD Ignition Assembly
(Superseded to 99-2916)

$99.99

$

In Stock, Qty 5

0

14

Lawn-Boy 614008

Plug-Spark
(Superseded to 614009)

$19.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 84-7820

Plate-Brake Mount

$

$

Not available

16

Lawn-Boy 614702

Screw
(Superseded to 32144-10)

$5.49

$

In Stock, Qty 16

0

17

Lawn-Boy 613208

Screw-Hex Washer Hd.

$2.49

$

In Stock, only 2 left!

0

18

Lawn-Boy 66-5380

Plate-Brake

$89.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 92-9698

Screw-Shoulder

$5.99

$

Usually ships in 3-6 days

0
