109-9764 - Exmark Ultra Vac Bagger for Quest Mower (SN: 790000 - 849999) (2009) Bagger Frame Mount Assembly Parts Diagram

Ultra Vac Bagger for Quest Mower

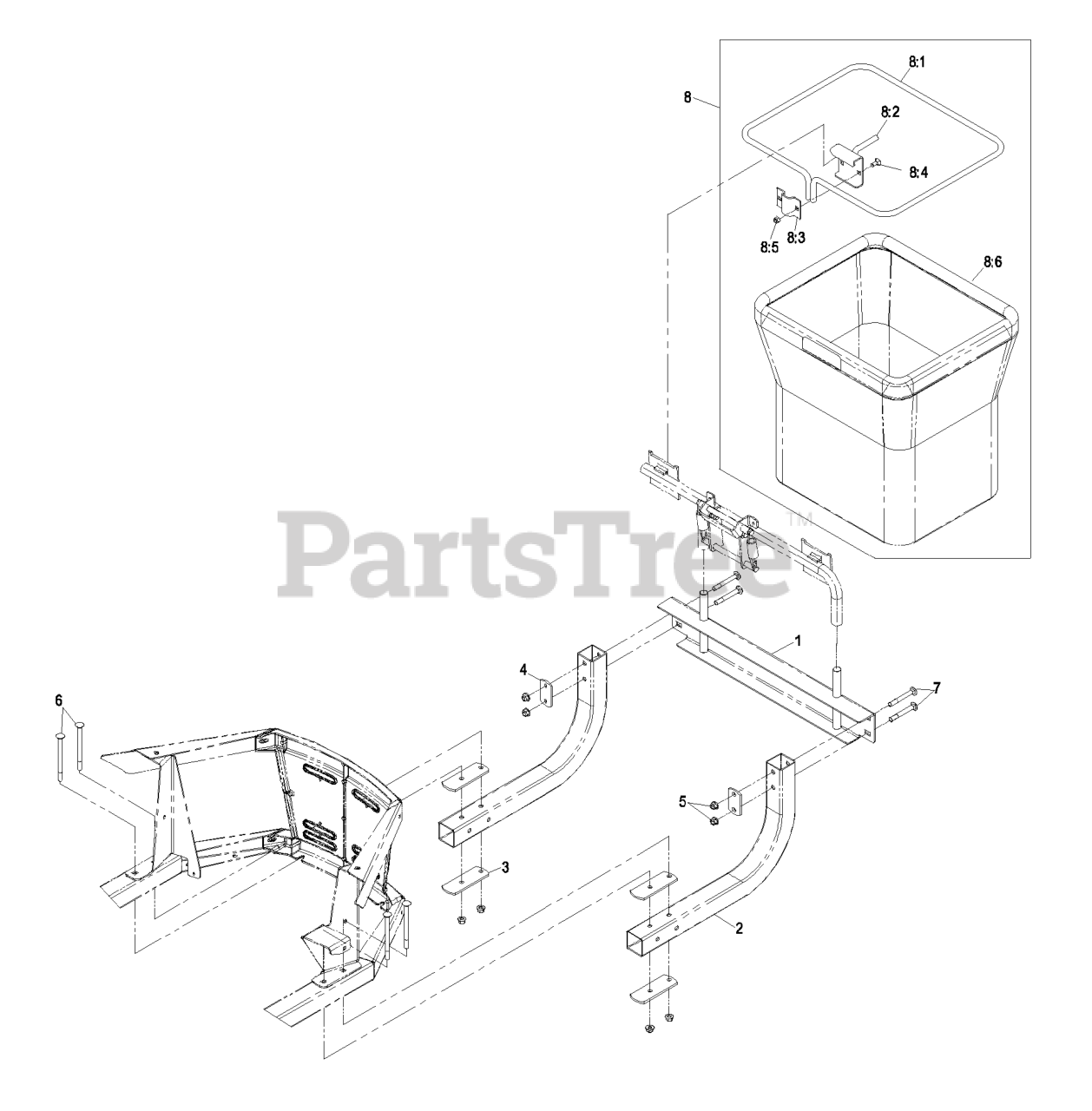

Bagger Frame Mount Assembly Parts Diagram

  • Title

1

Exmark 109-6094-03

BAGGER HITCH ASM

$

$

Not available

2

Exmark 109-5379-03

TUBE-HITCH, BAGGER

$

$

Not available

3

Exmark 109-6092-03

PLATE-STIFFENER

$

$

Not available

4

Exmark 109-6093-03

PLATE-STIFFENER

$

$

Not available

5

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 109-6795

BOLT-CARR

$5.99

$

In Stock, only 4 left!

0

7

Exmark 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 19

0

8

Exmark 116-1244

ASM,BAG

$212.99

$

Usually ships in 3-6 days

0

8:1

Exmark 114972-03

FRAME-BAG

$124.99

$

In Stock, only 2 left!

0

8:2

Exmark 112-4012-03

114973-03
(Superseded to 114973-03)

$28.99

$

In Stock, only 2 left!

0

8:3

Exmark 114974-03

CLAMP

$15.99

$

In Stock, only 2 left!

0

8:4

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

8:5

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8:6

Exmark 116-1209

BAG,20 IN. DEPTH

$88.99

$

In Stock, only 2 left!

0
