10996 - Lawn-Boy Insight Walk-Behind Mower (SN: 312000001 - 312999999) (2012) Upper Handle Assembly Parts Diagram

Insight Walk-Behind Mower

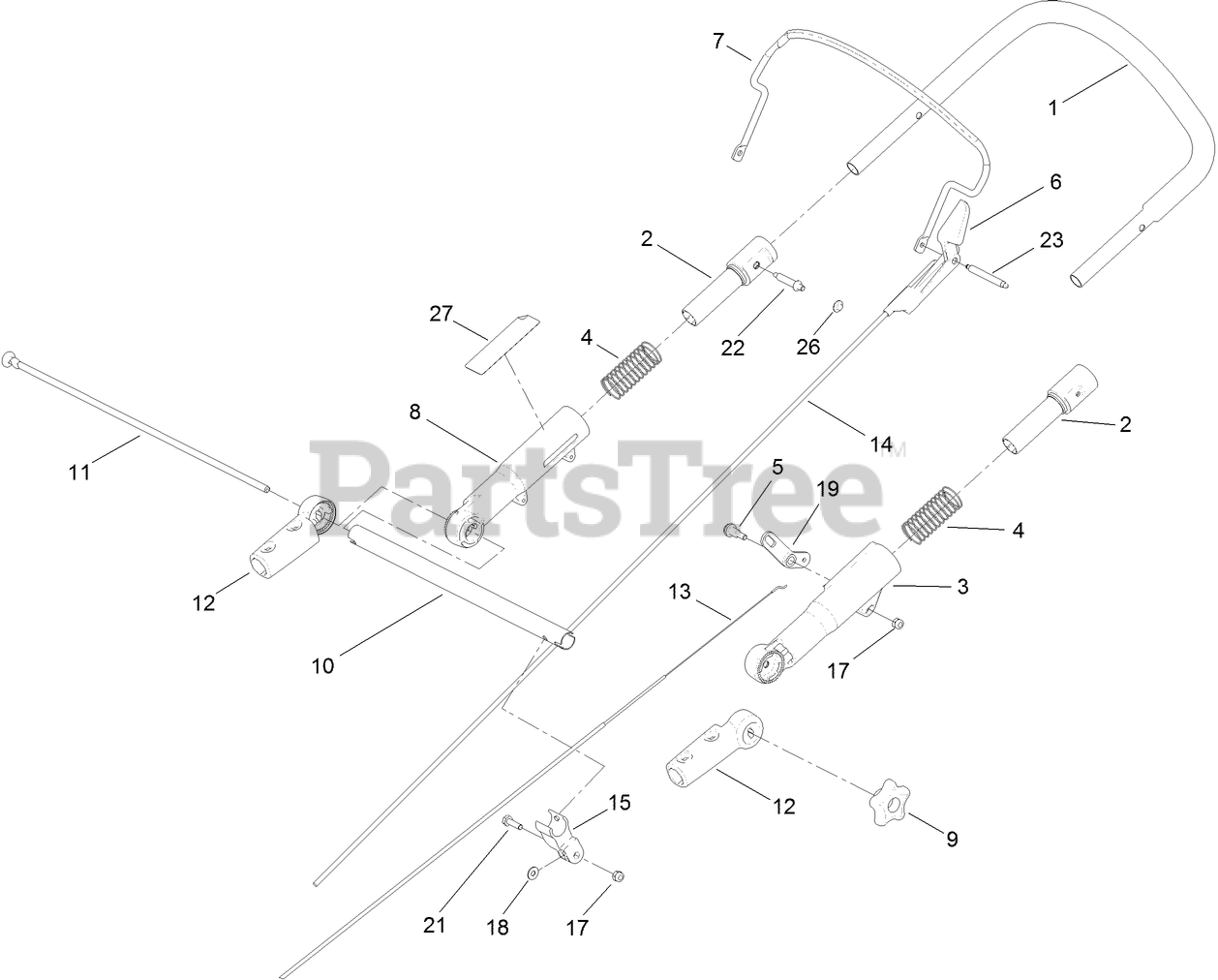

Upper Handle Assembly Parts Diagram

  • Title

1

Lawn-Boy 108-0974

UPPER HANDLE ASM

$94.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 112-8754

SLEEVE-INNER

$7.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 112-1544

SLEEVE-OUTER, LH

$18.99

$

In Stock, only 2 left!

0

4

Lawn-Boy 107-3869

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

5

Lawn-Boy 104-0858

BOLT-SHOULDER

$5.49

$

In Stock, only 3 left!

0

6

Lawn-Boy 112-8764

STOP-PIVOT

$5.49

$

In Stock, only 4 left!

0

7

Lawn-Boy 110-1819-03

BAIL-BRAKE

$29.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 112-1545

SLEEVE-OUTER, RH

$18.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 107-3937

KNOB

$4.49

$

In Stock, Qty 11

0

10

Lawn-Boy 107-3867-03

TUBE-CROSS

$28.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 107-3871

ROD-THREADED

$22.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 107-3865

MOUNT-HANDLE, LOWER

$13.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 107-3902

CABLE-TRACTION

$26.99

$

In Stock, Qty 12

0

14

Lawn-Boy 107-3903

CABLE-BRAKE

$55.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 112-8801

CLAMP-CABLE

$12.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 107-3893

LEVER-TRACTION

$4.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 108-0959

PIN-HANDLE

$7.49

$

In Stock, only 1 left!

0

23

Lawn-Boy 108-1008

PIN-BAIL, LH

$7.49

$

In Stock, only 1 left!

0

26

Lawn-Boy 108-9378

RETAINER-PUSH ON

$1.49

$

In Stock, only 4 left!

0

27

Lawn-Boy 112-8758

DECAL

$

$

Not available
