115-4195 - Toro Operator-Controlled Discharge Chute Kit Chute Gate Assembly No. 115-4195 Parts Diagram

Operator-Controlled Discharge Chute Kit

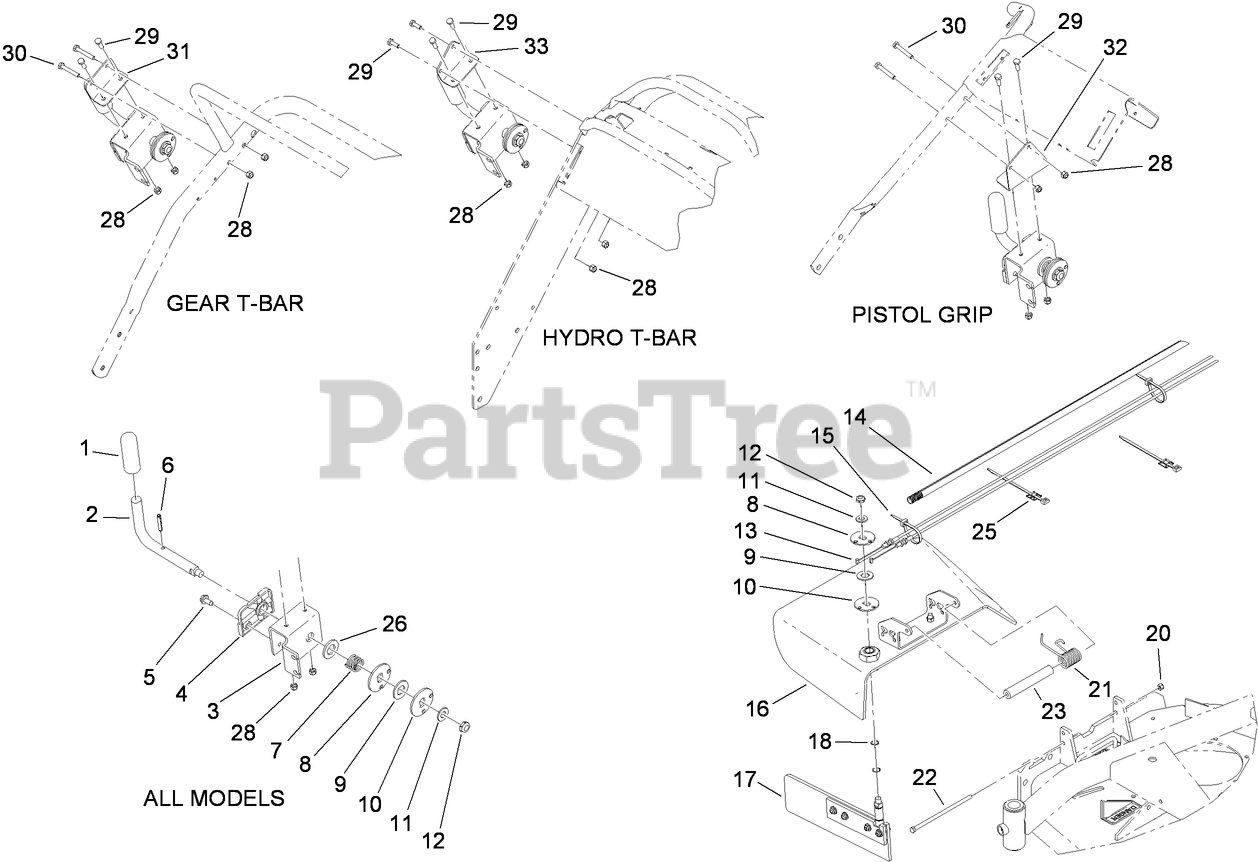

Chute Gate Assembly No. 115-4195 Parts Diagram

  • Title

1

Toro 108-7221

GRIP

$15.99

$

Usually ships in 3-6 days

0

2

Toro 112-7096

LEVER

$

$

Not available

3

Toro 112-7095-03

BRACKET-LEVER

$70.99

$

Usually ships in 3-6 days

0

4

Toro 108-2231

BLOCK-DETENT

$

$

Not available

5

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 32121-15

PIN-ROLL

$1.99

$

In Stock, Qty 20+

0

7

Toro 87-3660

SPRING-COMPRESSION

$17.99

$

Usually ships in 3-6 days

0

8

Toro 108-7218

PULLEY-TOP

$11.99

$

Usually ships in 3-6 days

0

9

Toro 108-7217

PULLEY-MIDDLE

$11.99

$

Usually ships in 3-6 days

0

10

Toro 108-7216

PULLEY-BOTTOM

$11.99

$

Usually ships in 3-6 days

0

11

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

13

Toro 115-4176

CABLE

$

$

Not available

14

Toro 115-4169

TUBE-CONVOLUTED

$15.99

$

Usually ships in 3-6 days

0

15

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

16

Toro 115-4165

DEFLECTOR ASM

$

$

Not available

17

Toro 117-0471

DOOR ASM

$167.99

$

Usually ships in 3-6 days

0

18

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

20

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 104-8554

SPRING-TORSION

$27.99

$

Usually ships in 3-6 days

0

22

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 15

0

23

Toro 105-4622

SPACER

$11.99

$

In Stock, only 2 left!

0

25

Toro 93-3922

MOUNT-TIE, CABLE

$24.99

$

Usually ships in 3-6 days

0

26

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

28

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

29

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Toro 115-4157-03

BRACKET-MOUNTING, T-BAR (GEAR)

$19.99

$

Usually ships in 3-6 days

0

32

Toro 115-4158-03

BRACKET-MOUNTING, PISTOL GRIP

$25.99

$

Usually ships in 3-6 days

0

33

Toro 115-4159-03

BRACKET-MOUNTING, T-BAR (HYDRO)

$19.99

$

Usually ships in 3-6 days

0
