115-7469 - Toro 72" Recycler Kit for Z Master G3 Mower Recycler Assembly No. 115-7469 Parts Diagram

72" Recycler Kit for Z Master G3 Mower

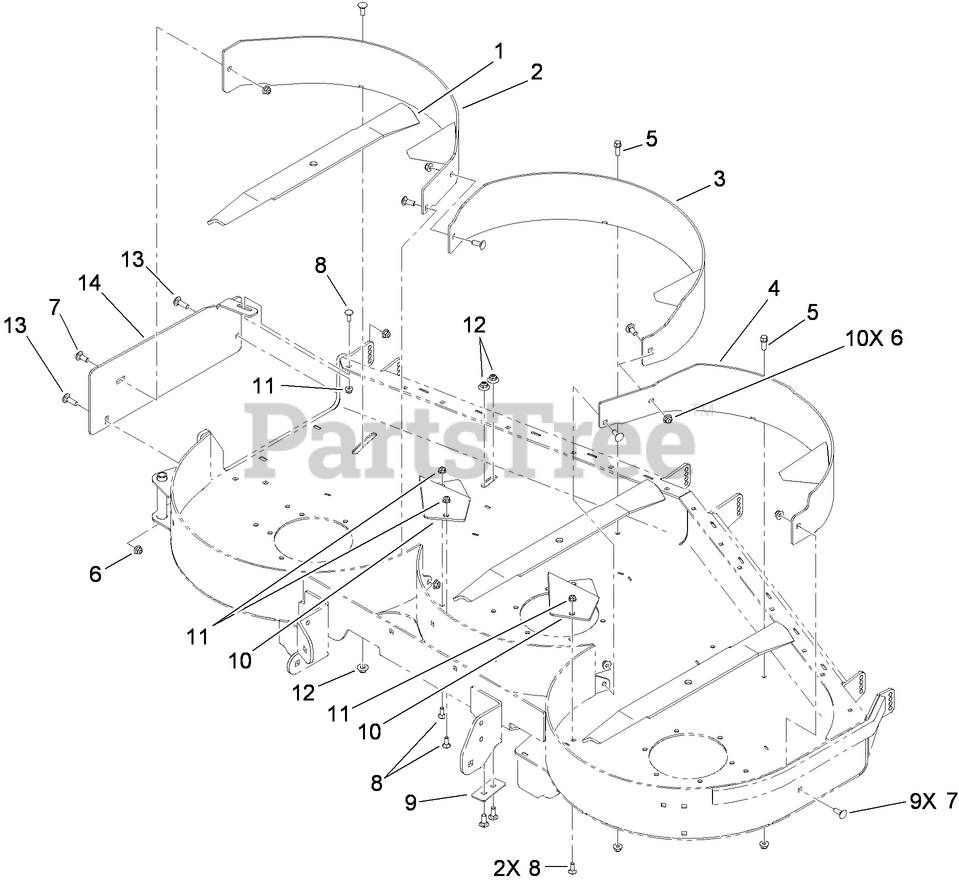

Recycler Assembly No. 115-7469 Parts Diagram

  • Title

1

Toro 105-7778-03

BLADE-RECYCLER, 24.5IN

$45.99

$

Usually ships in 3-6 days

0

2

Toro 115-7498-01

RH BAFFLE ASM

$323.99

$

Usually ships in 3-6 days

0

3

Toro 115-7497-01

CENTER BAFFLE ASM

$323.99

$

Usually ships in 3-6 days

0

4

Toro 115-7496-01

LH BAFFLE ASM

$323.99

$

Usually ships in 3-6 days

0

5

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

8

Toro 3230-16

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

9

Toro 115-7429-01

PLATE-COVER

$6.99

$

Usually ships in 3-6 days

0

10

Toro 107-1616-01

KICKER

$66.99

$

Usually ships in 3-6 days

0

11

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

14

Toro 115-7471-01

PLATE-COVER, DISCHARGE

$149.99

$

In Stock, only 4 left!

0
